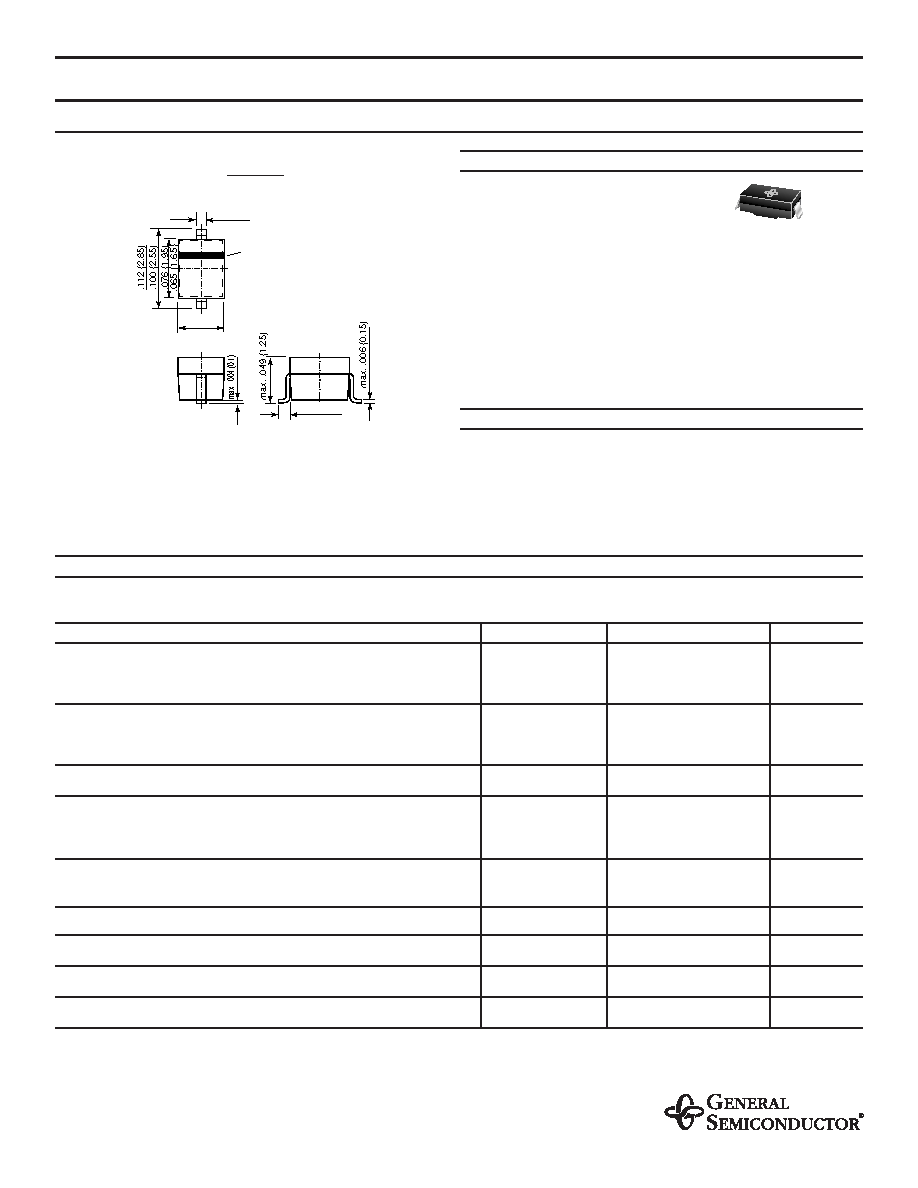

1 / 4 page

BAV19WS THRU BAV21WS

SMALL SIGNAL DIODES

FEATURES

♦ Silicon Epitaxial Planar Diodes

♦ For general purpose

♦ These diodes are also available in other case styles

including: the DO-35 case with the type designations

BAV19 to BAV21, the Mini-MELF case with the type

designations BAV100 to BAV103, the SOT-23 case with

the type designation BAS19 - BAS21 and the SOD-123

case with the type designation BAV19W-BAV21W.

MECHANICAL DATA

Case: SOD-323 Plastic Case

Weight: approx. 0.004 g

Marking Code: BAV19WS=A8

BAV20WS=A81

BAV21WS=A82

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25°C ambient temperature unless otherwise specified.

SYMBOLS

VALUE

UNITS

Continuous Reverse Voltage

BAV19WS

VR

100

Volts

BAV20WS

VR

150

Volts

BAV21WS

VR

200

Volts

Repetitive Peak Reverse Voltage

BAV19WS

VRRM

120

Volts

BAV20WS

VRRM

200

Volts

BAV21WS

VRRM

250

Volts

Forward DC Current at Tamb = 25 °C

IF

2501)

mA

Rectified Current (Average)

Half Wave Rectification with Resist. Load

Io

2001)

mA

at Tamb = 25 °C and f ≥ 50 Hz

Repetitive Peak Forward Current

at f

≥ 50 Hz, Θ = 180 °, Tamb = 25 °C

IFRM

625

1)

mA

Surge Forward Current at t < 1 s, Tj = 25 °C

IFSM

1

Amps

Power Dissipation at Tamb = 25 °C

Ptot

2001)

mW

Junction Temperature

Tj

1501)

°C

Storage Temperature Range

TS

–65 to + 1501)

°C

NOTES:

(1) Valid provided that electrodes are kept at ambient temperature

SOD-323

min. .010 (0.25)

.012 (0.3)

.059 (1.5)

Cathode Mark

Top View

.043 (1.1)

Dimensions are in inches and (millimeters)

12/11/98

NEW PRODUCT
