FEATURES

Schottky Diodes

MECHANICAL DATA

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 °C ambient temperature unless otherwise specified

Case: MiniMELF Glass Case SOD-80C

Weight: approx. 0.05 g

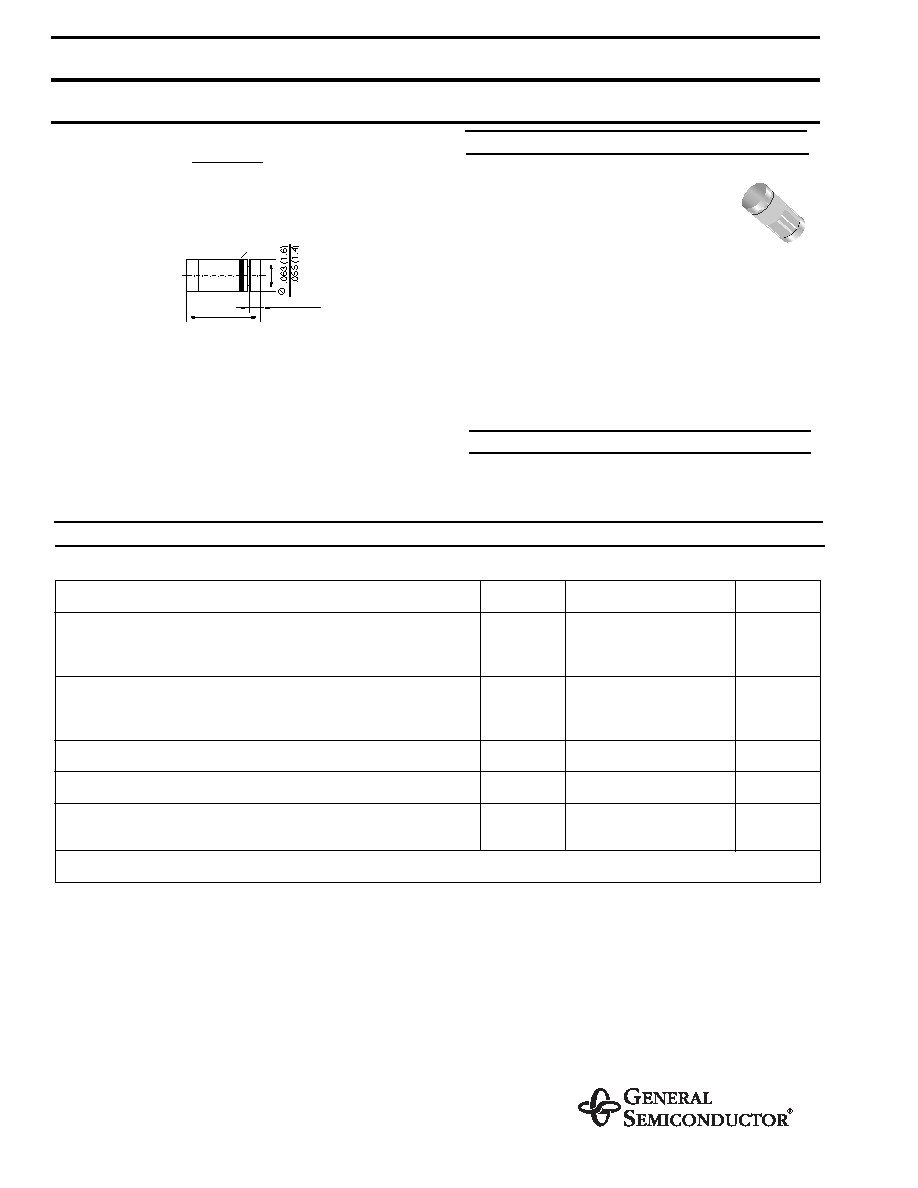

Dimensions in inches and (millimeters)

MiniMELF

.142 (3.6)

.019 (0.48)

Cathode Mark

.134 (3.4)

.011 (0.28)

4/98

LL103A THRU LL103C

Symbol

Value

Unit

Peak Inverse Voltage

LL103A

LL103B

LL103C

40

30

20

V

V

V

Power Dissipation (Infinite Heatsink)

″ from Body

derates at 4 mW/°C to 0 at 125 °C

mW

Junction Temperature

125

°C

Storage Temperature Range

–55 to +150

°C

Single Cycle Surge

60-Hz Sine Wave

15

A

For general purpose applications.

The LL103A, B, C is a metal-on-silicon

Schottky barrier device which is pro-

tected by a PN junction guard ring.

The low forward voltage drop and fast switch-

ing make it ideal for protection of MOS devices,

steering, biasing and coupling diodes

for fast switching and low logic level applications.

Other applications are click suppression, efficient

full wave bridges in telephone subsets, and blocking

diodes in rechargeable low voltage battery systems.

This diode is also available in DO-35 case with

the type designation SD103A, B, C, and in the

SOD-123 case with type designation

SD103AW, SD103BW, SD103CW.

♦

♦

♦

♦
