Description

• 155°C maximum temperature operation

• Low profile surface mount inductors designed

for higher speed switch mode applications

requiring low voltage, and high current

• Design utilizes high temperature powder iron material

with a non-organic binder to eliminate thermal aging

• Inductance range from 0.17 uH to 47.9 uH

• Current range from 29 Amps to 1.8 Amps

• Frequency range 1kHz to 500kHz

Applications

• Next generation processors

• High current DC-DC converters

• VRM, multi-phase buck regulator

• PC Workstations, Routers, Servers

• Telecom soft switches, Base stations

Environmental Data

• Storage temperature range: -40°C to +155°C

• Operating temperature range: -40°C to +155°C

(Range is application specific)

• Solder reflow temperature: +260°C max. for

10 seconds max.

Packaging

• Supplied in tape and reel packaging, 800 parts per reel

Part

Rated

OCL (1)

Irms (2)

Isat (3)

Isat (4)

DCR (m

Ω)

Volts (5)

Number

Inductance

nominal

Amperes

Amperes

Amperes

max. @

µSec (VµS)

µH

+/-20% µH

(Typ.)

15% rolloff

30% rolloff

20°C

(ref.)

HC8LP-R15-R

0.15

0.170

29.0

31

56

1.40

7.8

HC8LP-R39-R

0.39

0.430

20.2

19

34

2.80

4.7

HC8LP-R75-R

0.75

0.830

15.6

13.5

24

4.70

3.4

HC8LP-1R2-R

1.2

1.35

12.4

10.1

18.7

7.50

2.6

HC8LP-1R9-R

1.9

1.92

10.1

8.7

15.5

11.5

4.1

HC8LP-2R6-R

2.6

2.67

8.3

7.4

13.1

17.1

4.8

HC8LP-3R5-R

3.5

3.56

6.9

6.4

11.4

24.5

5.6

HC8LP-4R5-R

4.5

4.57

6.5

5.6

10.0

27.6

6.3

HC8LP-5R6-R

5.6

5.71

5.5

5.1

9.0

38.9

7.1

HC8LP-6R9-R

6.9

6.98

5.2

4.6

8.1

42.8

7.8

HC8LP-8R2-R

8.2

8.37

4.5

4.2

7.4

58.0

8.6

HC8LP-100-R

10.0

9.90

4.3

6.8

3.8

62.9

9.3

HC8LP-150-R

15.0

15.20

3.4

3.1

5.5

99.4

11.6

HC8LP-220-R

22.0

21.70

2.8

2.6

4.6

149

13.7

HC8LP-330-R

33.0

32.10

2.3

2.1

3.8

224

16.8

HC8LP-470-R

47.0

47.90

1.8

1.7

3.1

344

20.3

1) Open Circuit Inductance test parameters: 100KHz, 1.0V, 0.0Adc

2) Irms: DC current for an approximate DT of 40°C without core loss. Derating is

necessary for AC currents. PCB layout, trace thickness and width, air-flow, and

proximity of other heat generating components will affect the temperature rise. It is

recommended that the temperature of the part not exceed 155°C under worst case

operating conditions verified in the end application.

3) Isat Amperes Peak for approximately 15% rolloff (@20°C)

4) Isat Amperes Peak for approximately 30% rolloff (@20°C)

5) Applied Volt-Time product (V-µS) across the inductor. This value represents the

applied V-µS at operating frequency necessary to generate additional core loss

which contributes to the 40°C temperature rise. De-rating of the Irms is required

to prevent excessive temperature rise. The 100% V-uS rating is equivalent to a

ripple current Ip-p of 20% of Isat (30% rolloff option).

Part number definition:

HC8LP-xxx-R

HC8LP = Product code and size

xxx = Inductance in µH. R = decimal point.

If no R is present third character = # of zeros.

-R suffix indicates RoHS compliant

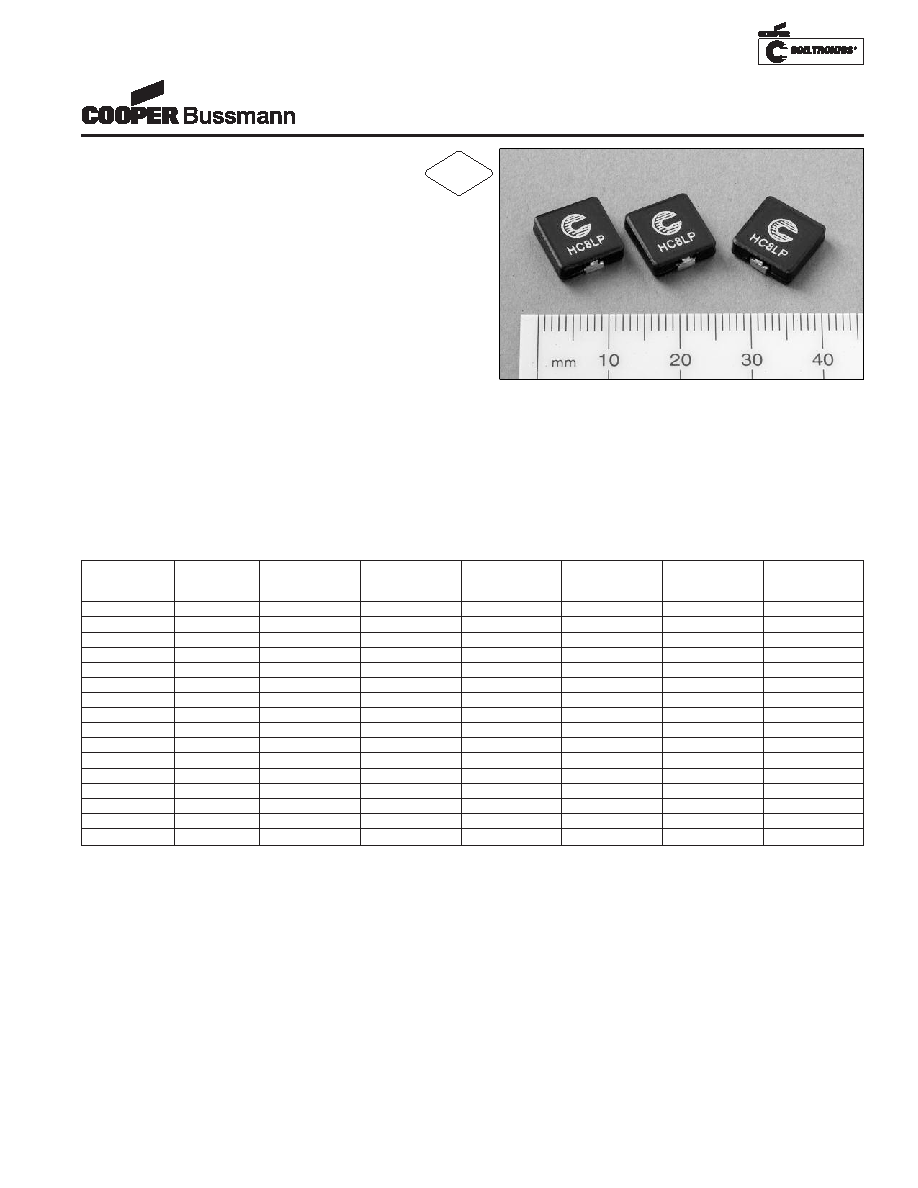

HC8LP Series

Power Inductors

RoHS

2002/95/EC
