QBLP610 _series
1206 LED
Product: QBL610_series
Date: June 25, 2011
Page 5 of 8
Version# 2.2

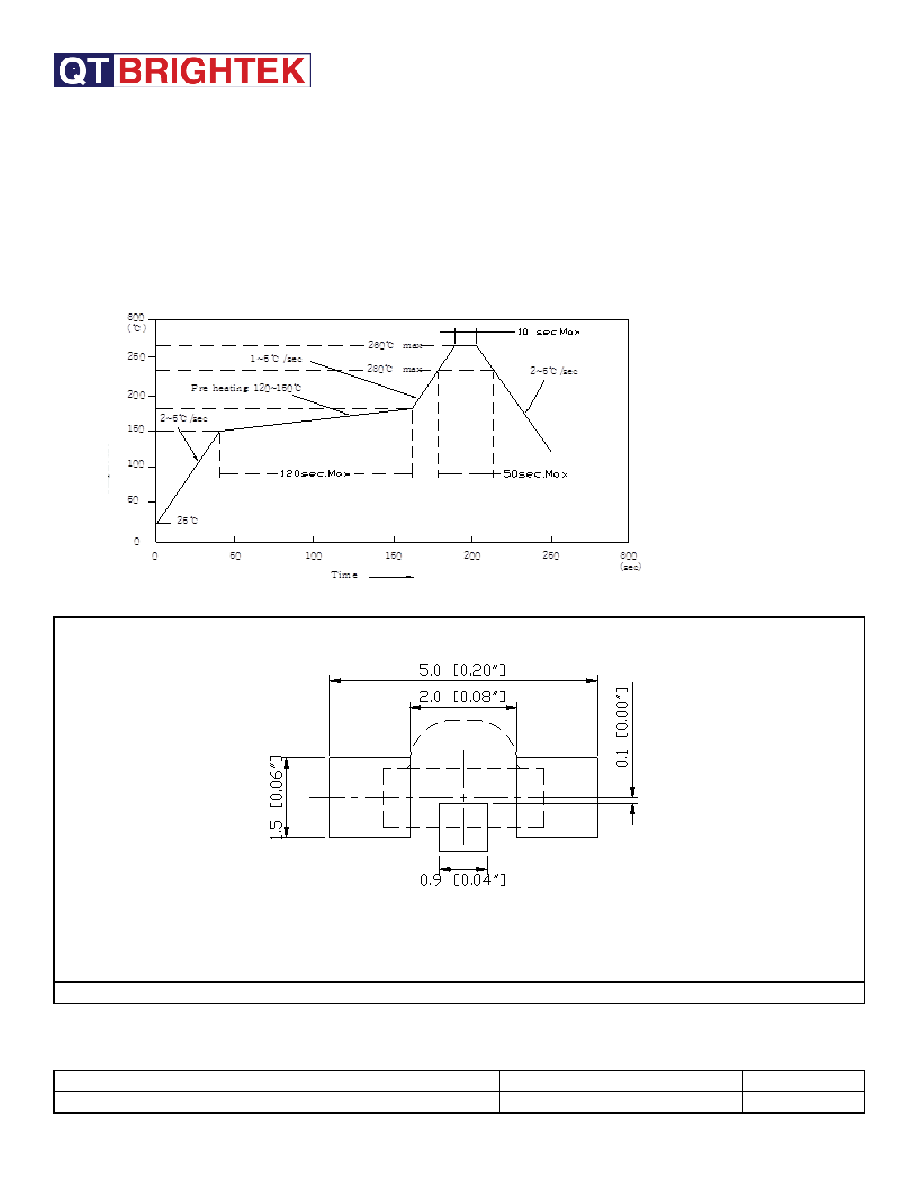

Solder Profile & Footprint:
-Recommended tin glue specifications: melting temperature in the range of 178~192
OC
-The recommended reflow soldering profile is as follows (temperatures indicated are as
measured on the surface of the LED resin):
( Proposed Solder footprint )
Units: mm
tolerance: +/- 0.1mm
