TITLE

SCALE

DATE

DR

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

SHEET

OF

REV

PCR NO

DESCRIPTION

DATE

BY

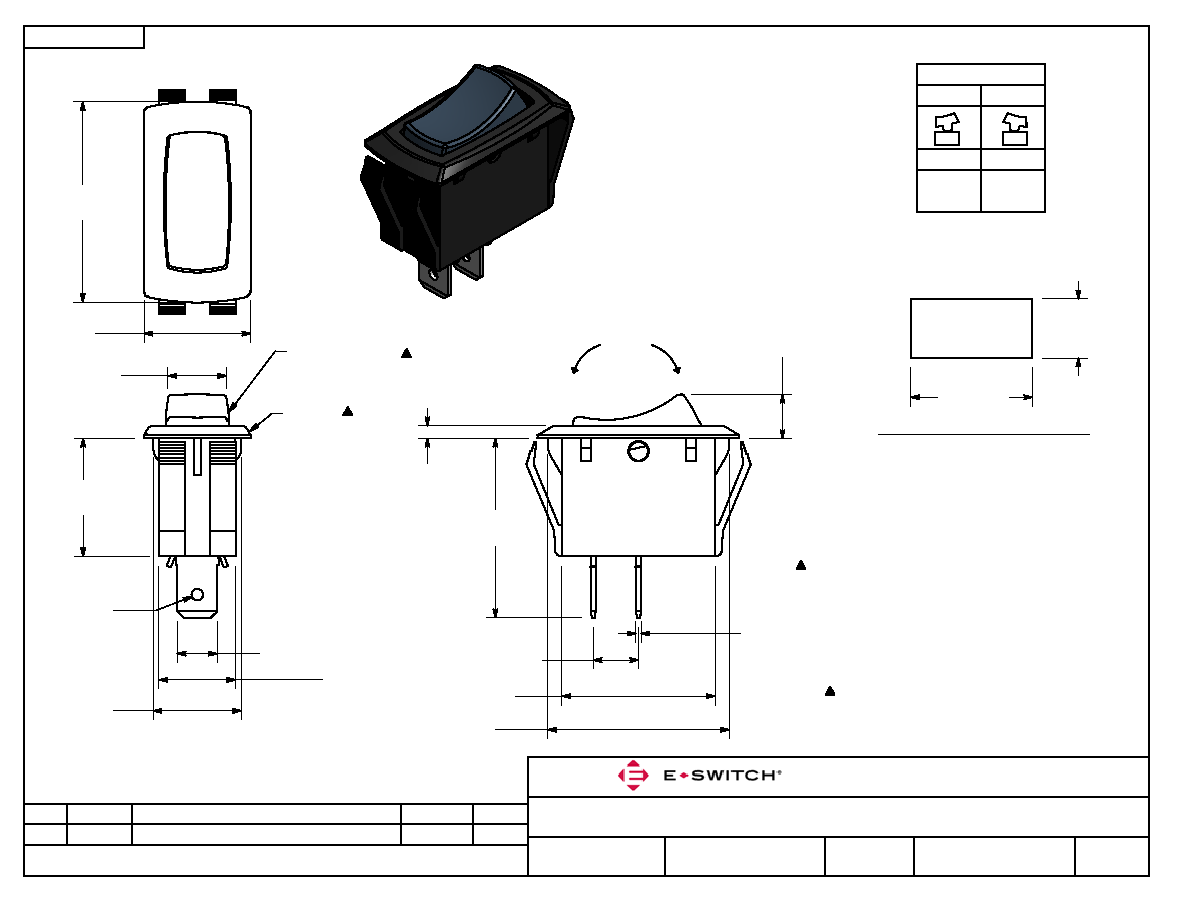

RSC144D1100

12/27/2012

14-RSC144D1100

A

EBP

1

1

A

20945

RELEASE FOR PRODUCTION

12/27/12

EBP

31.50

[1.240 in]

16.70

[.657 in]

9.5

[.37 in]

18.50

[.728 in]

28.10

[1.106 in]

2.00

[.079 in]

7.8

[.31 in]

7.10

[.280 in]

6.30

[.248 in]

n1.80

[.071 in]

12.00

[.472 in]

13.80

[.543 in]

24.00

[.945 in]

28.50

[1.122 in]

28.60

[1.126 in]

13.90

[.547 in]

SUGGESTED PANEL CUTOUT

POS. 1

POS. 2

SWITCH FUNCTION

OFF

(ON)

OPEN

1-2

(ON)=MOMENTARY

POS.

1

POS.

2

1

2

NOTES:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERM. NOS. FOR REF. ONLY

4. RATING: 20A @125VAC;

16A @250VAC.

5. MATERIAL:

CONTACT SURFACE: SILVER PLATED COPPER

CIRCUIT TERMINAL: BRASS ALLOY w/SILVER PLATE

6. ELECTRICAL LIFE: 10,000 CYCLES MIN.

7. CONTACT RESISTANCE: 20 Milli-OHMS MAX.

8. OPERATING TEMP: -20°C TO 85°C

9. DIELECTRIC STRENGTH: >1,000V AC 1MIN

10.

DENOTES CRITICAL PARAMETER.

11. 2002/95/EC (ROHS) COMPLIANT.

BLACK

HOUSING

BLACK ACTUATOR

.80

[.031 in]
