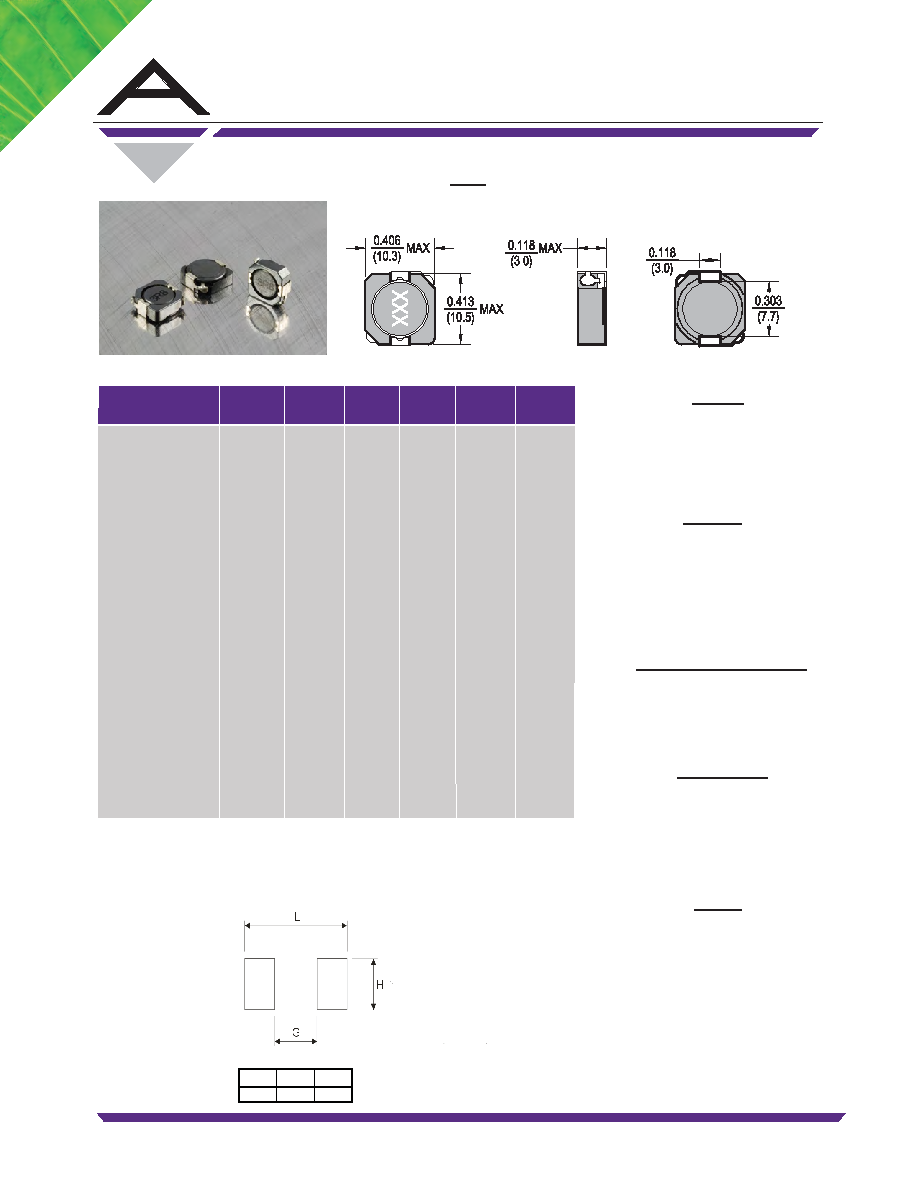

Power Chip Shielded Inductors

PCS103

15

DCR

(mΩ)

Irms

Allied

Part

Number

Inductance

(

µh)

Tolerance

(%)

Test

Freq.

PCS103-R80M-RC

PCS103-1R5M-RC

PCS103-2R2M-RC

PCS103-3R3M-RC

PCS103-4R7M-RC

PCS103-8R2M-RC

PCS103-150M-RC

PCS103-220M-RC

PCS103-330M-RC

PCS103-470M-RC

PCS103-560M-RC

PCS103-680M-RC

PCS103-820M-RC

PCS103-101M-RC

0.8

1.5

2.2

3.3

4.7

8.2

15

22

33

47

56

68

82

100

20

100

5.7

11

16.9

21

30

50

91

143

202

299

325

429

494

683

8.30

5.80

5.10

4.70

4.00

3.00

2.05

1.60

1.35

1.20

1.15

0.95

0.80

0.70

ALLIED COMPONENTS INTERNATIONAL

714-665-1140

www.alliedcomponents.com

RoHS

PCS103-6R8M-RC

6.8

20

100

35

3.60

PCS103-100M-RC

10

20

100

59

2.80

PCS103-151M-RC

150

20

100

871

0.51

PCS103-121M-RC

120

20

100

754

0.65

All specifications subject to change wtihout notice.

10/20/11

KHz, 1V

Features

• Shielded SMD Power Inductor

• Low DC resistance

• Ideal for DC-DC converter applications

Electrical

Inductance Range: .8µh to 150µh

Tolerance:

20% Available in tighter tolerances

Operating Temp: -55ºC ~ +125ºC

Isat: Current at which inductance drops 35% typ.

Test Equipment

(L):

HP 4284A LCR Meter or Equivalent

Pre-Heat 150ºC, 1 minute.

Physical

Packaging: 1000 pieces per 13 inch reel.

• Available in magnetically shielded

Resistance to Soldering Heat

Solder Composition: Sn/Ag3.0/Cu0.5

Solder Temp: 260ºC ± 5ºC for 10sec ± 1sec

(RDC):

CHP 4338B Miliohm Meter or Equivalent

(IDC): 3260B (WK) & DC Bias 3265B (WK)

Marking:

EIA Inductance Code

Irms: Current at which the temp rise + 40ºC

Max

Isat

(A) Max

(A) Typ.

11.20

8.00

6.70

5.56

4.65

3.54

2.60

2.16

1.74

1.43

1.36

1.22

1.14

1.02

3.84

3.18

0.84

0.89

Land Pattern for Reflow Soldering

L(mm) G(mm) H(mm)

10.70

7.30

3.60

Dimensions:

Inches

(mm)
