Typical characteristics
LED2001
34/42
DocID024346 Rev 1
8
Typical characteristics

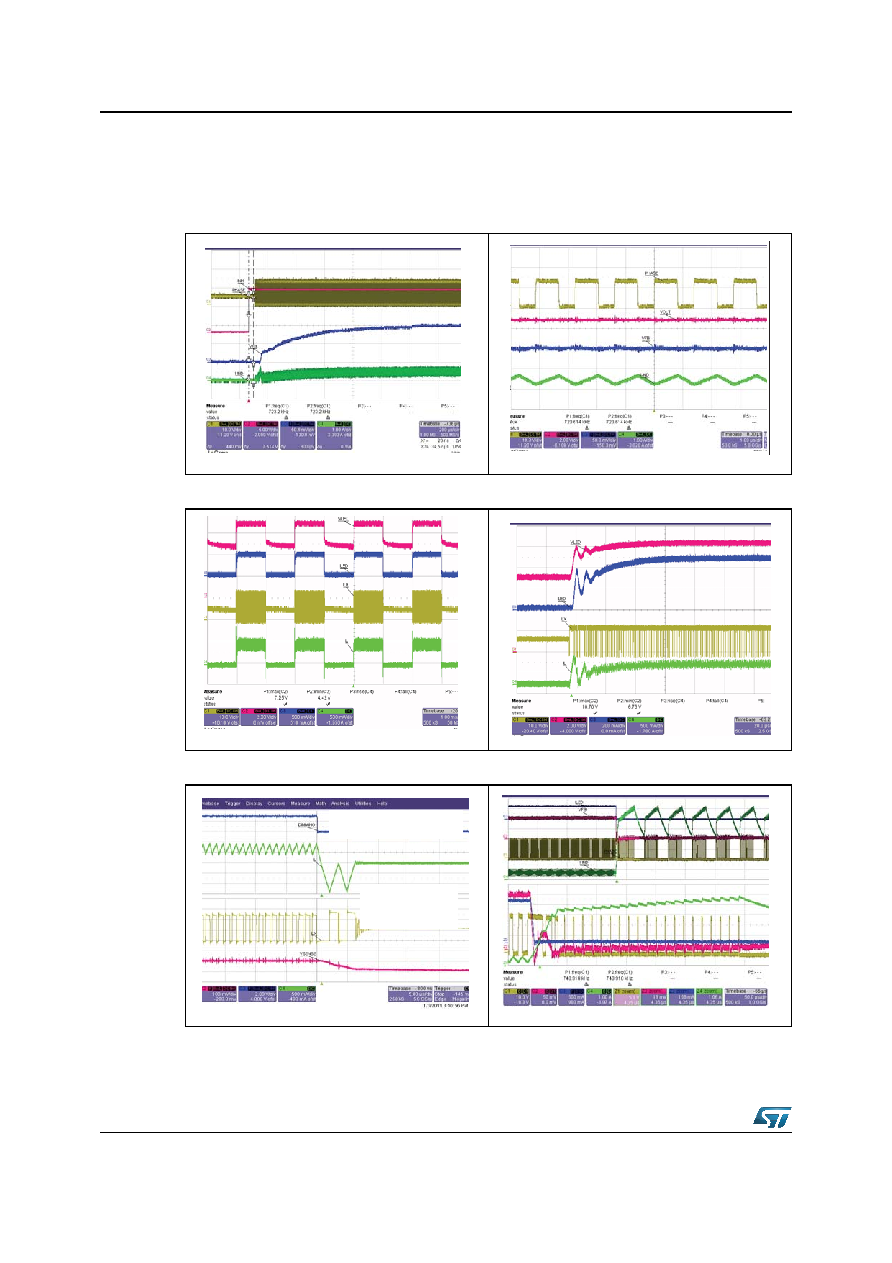

Figure 24. Soft-start
Figure 25. Load regulation
Figure 26. Dimming operation
Figure 27. LED current rising edge
a
Figure 28. LED current falling edge
Figure 29. Hiccup current protection
AM12913v1
Vin 12V
Vled 7V
AM12914v1
AM12915v1
AM12916v1
To maximize the dimming
performan ce the embedded LS
discharges C OUT when D IM goes low.
(D IM = 0 & & V FB > 60mV ):
the low side is enabled
as long as I L > -1A
(implements negative
current limitation)
AM12917v1
AM12918v1
