SSL21081AT

All information provided in this document is subject to legal disclaimers.

© NXP B.V. 2013. All rights reserved.

Product data sheet

Rev. 6 — 3 October 2013

5 of 21

NXP Semiconductors

SSL21081AT

Compact non-dimmable LED driver IC

7.

Pinning information

7.1 Pinning

7.2 Pin description

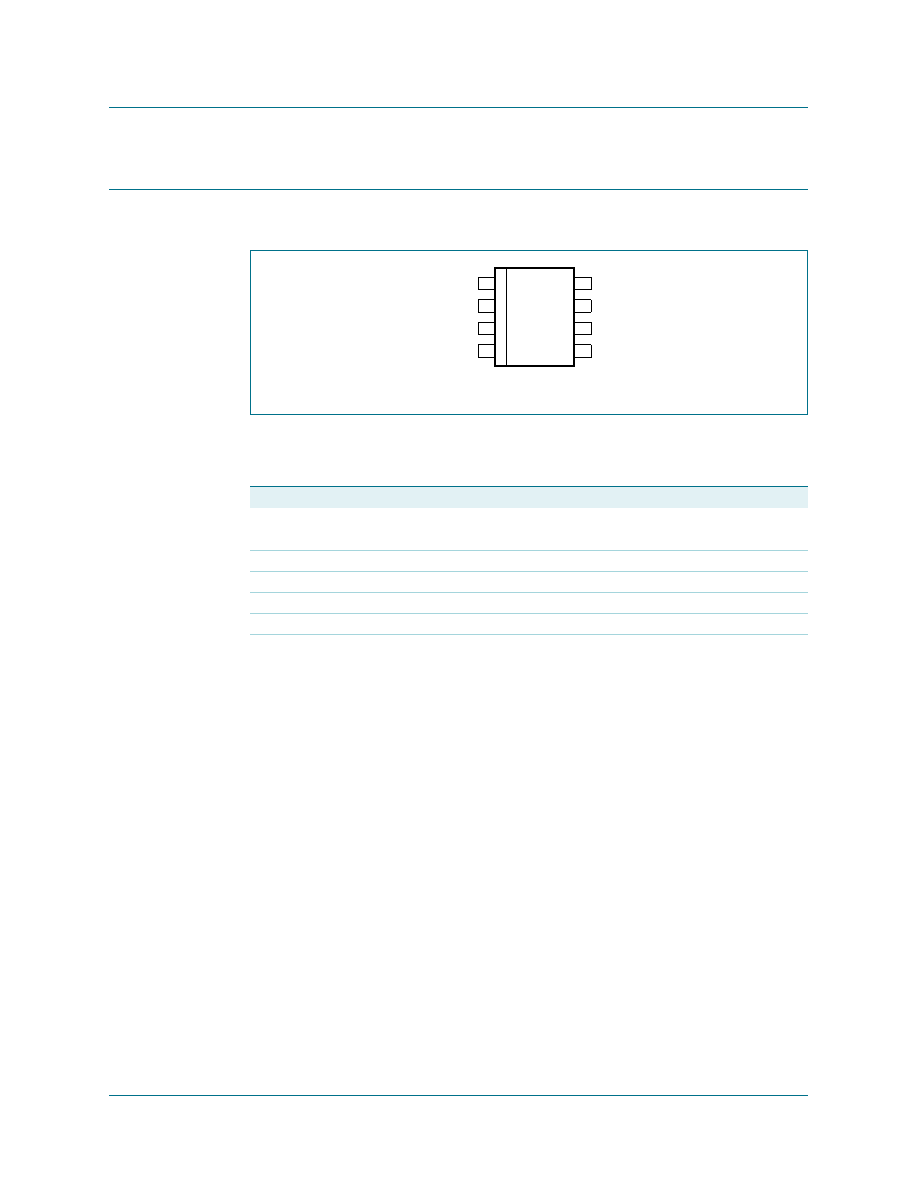

Fig 2.

SSL21081AT pin configuration (SO8)

Table 4.

Pin description

Symbol

Pin (SO8)

Description

HV

1

high-voltage supply pin

SOURCE

2

low-side internal switch

VCC

3

supply voltage

NTC

4

LED temperature protection input

DVDT

5

AC supply pin

GND

6; 7

ground

DRAIN

8

high-side internal switch
