MicroSmart Series
43
Programmable Logic Controllers

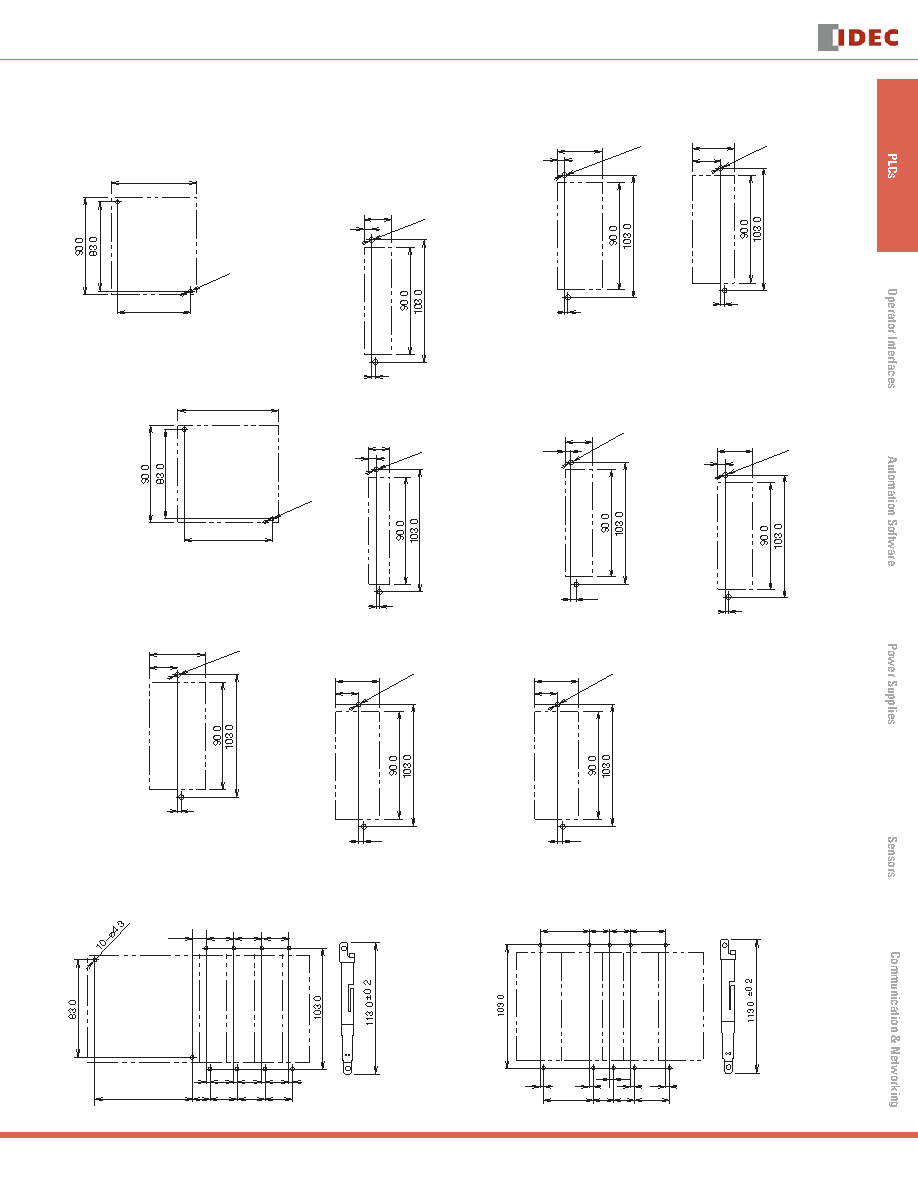

Mounting Hole Layout (mm)
FC5A-C10R2,
FC5A-C16R2
FC5A-C10R2C, FC5A-C16R2C
FC4A-C10R2,
FC4A-C16R2
FC4A-C10R2C, FC4A-C16R2C
68.0
80.0
2-ø4.3
FC4A-N08A11,
FC4A-R081
FC4A-R161,
FC4A-T08K1
FC4A-T08S1,
FC4A-M08BR1
FC4A-L03A1,
FC4A-L03AP1
FC4A-J2A1,
FC4A-K1A1
FC4A-J4CN1,
FC4A-T8C1
FC4A-J8AT1,
FC4A-K2C1
23.5
6.3
3.0
2–ø4.3
FC5A-EXM2
FC4A-M24BR2
39.1
6.3
3.0
2–ø4.3
FC5A-EXM1S, FC4A-D20K3
FC4A-D20S3
35.4
24.1
3.0
2-ø4.3
FC5A-C24R2,
FC4A-C24R2C
FC4A-C24R2,
FC4A-C24R2C
83.0
95.0
2-ø4.3
FC5A-EXM1M
FC4A-N16B3, FC4A-T16K3,
FC4A-T16S3
17.6
6.3
2–ø4.3
3.0
FC4A-HPC1 FC4A-HPC2
FC4A-HPC3
22.5
4.8
3.0
2–ø4.3
FC4A-N32B3, FC4A-T32K3,
FC4A-T32S3
29.7
6.3
3.0
2–ø4.3
FC5A-D16RK1
FC5A-D16RS1
FC5A-D32K3
FC5A-D32S3
FC4A-D20RK1
FC4A-D20RS1
FC4A-D40K3
FC4A-D40S3
47.5
24.1
2–ø4.3
3.0
FC4A-HPH1
38.0
20.3
3.0
2–ø4.3
FC4A-HPH1
38.0
20.3
3.0
2–ø4.3
Examples
Mounting hole layout for FC5A-C24R2 or FC4A-C24R2 and four 23.5mm-wide
I/O modules
23.5 23.5 23.5
12.3
15.3 23.5 23.5 23.5
83.0
3.0
3.0
3.0
3.0
Mounting hole layout from left, FC4A-HPH1, FC4A-D20K3, FC4A-N16B3, FC4A-
N32B3, and FC4A-M24BR2 modules
41.8
3.0
3.0
3.0
3.0
3.0
41.8
17.6 17.6
29.7
17.6 17.6
29.7
