ICS8521
LOW SKEW, 1-TO-9
DIFFERENTIAL-TO-LVHSTL FANOUT BUFFER
8521BY
www.icst.com/products/hiperclocks.html
REV. B JULY 31, 2001
6

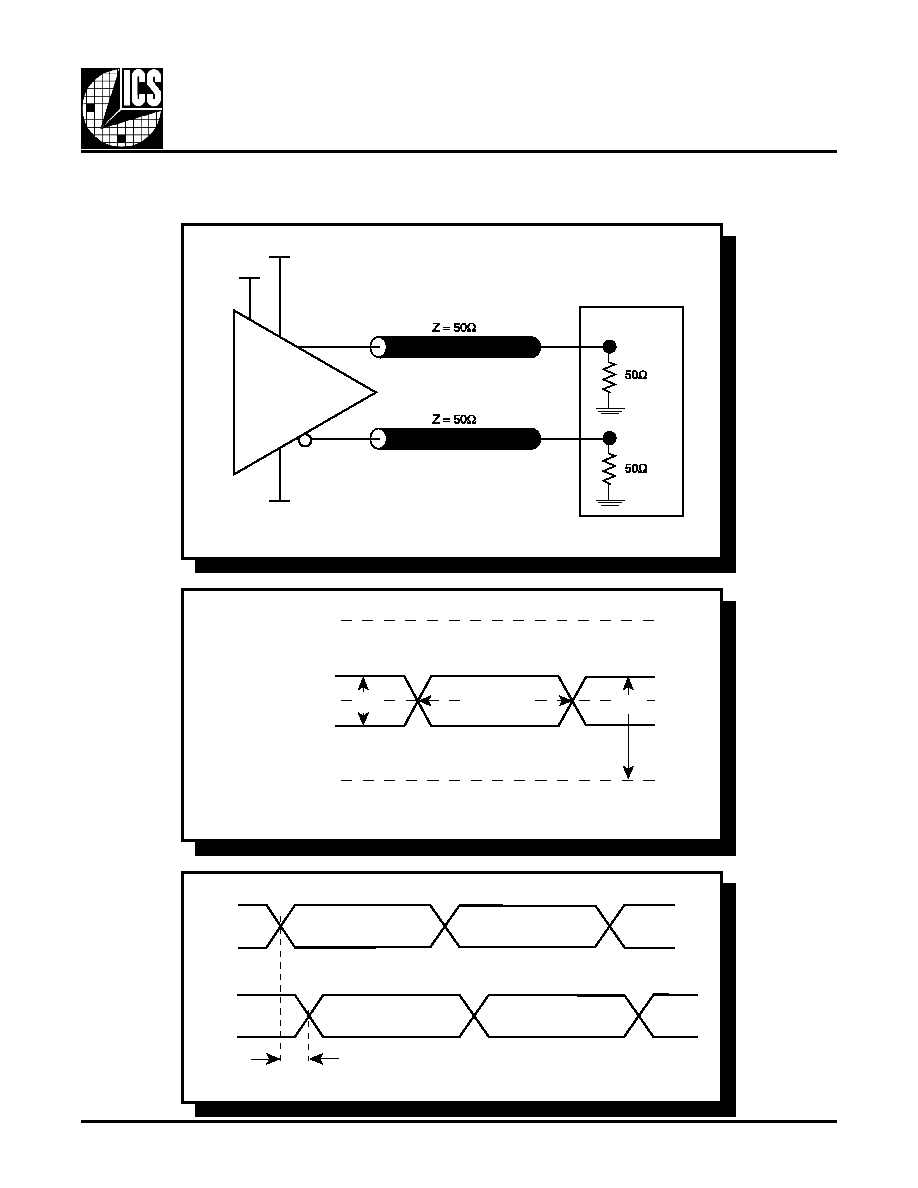

PARAMETER MEASUREMENT INFORMATION
FIGURE 2 - OUTPUT LOAD TEST CIRCUIT
FIGURE 3 - DIFFERENTIAL INPUT LEVEL
FIGURE 4 - OUTPUT SKEW
SCOPE
LVHSTL
Qx
nQx
V
DD = 3.3V ± 5%
V
DDO = 1.8V ± 0.2V
V
DDO
V
DD
GND = 0V
CLK, PCLK
nCLK, nPCLK
V
DD
GND
V
CMR
Cross Points
V
PP
tsk(o)
Qx
nQx
Qy
nQy
