REV. A
AD1853
–13–
FREQUENCY – Hz
10
–100
–90
–60
100
1k
10k
–70
–80

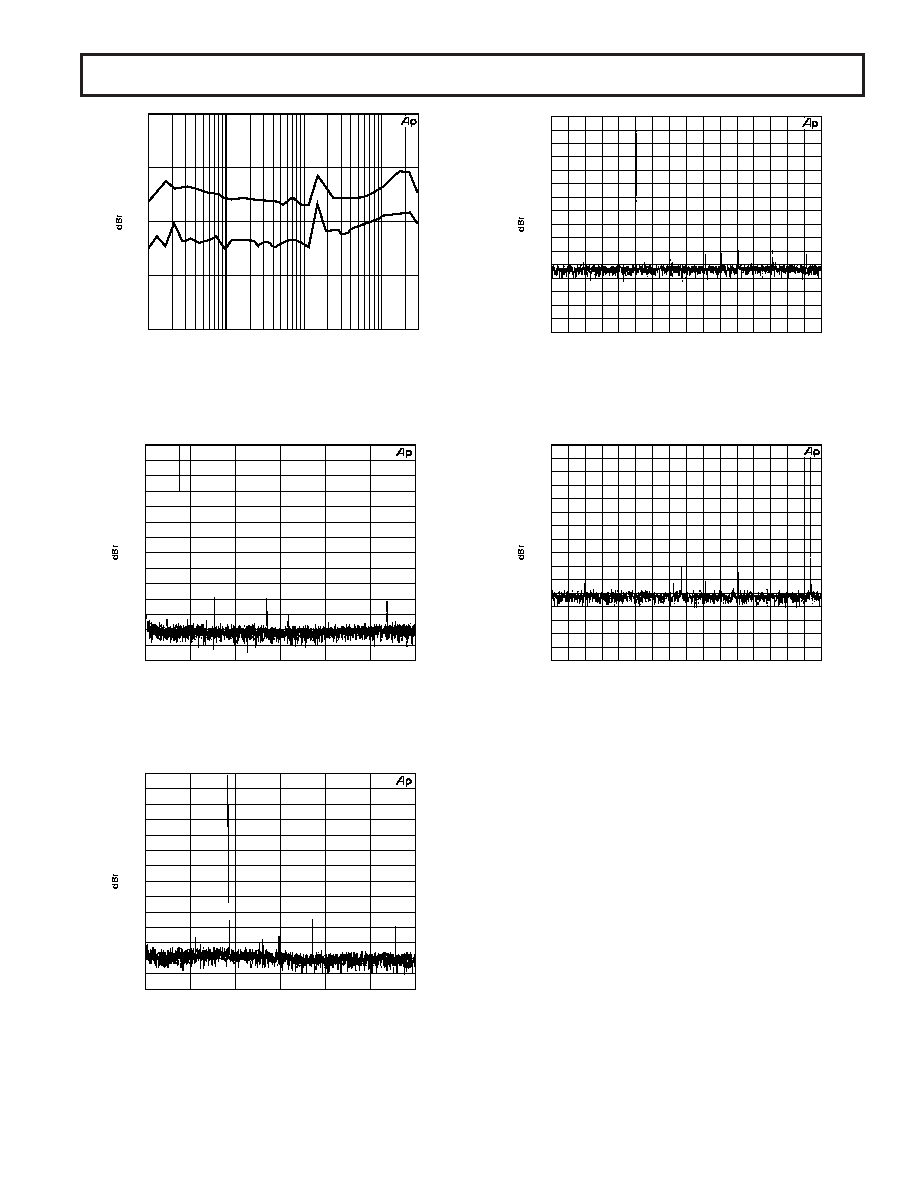

Figure 23. Power Supply Rejection vs. Frequency
AVDD 5 V dc + 100 mV p-p ac
FREQUENCY – kHz
0
–100
120
20
40
60
80
100
–10
–40
–70
–80
–90
–20
–30
–50
–60
–110
–120
–130
–140
Figure 24. Wideband Plot, 15 kHz Input, 8
× Interpolation,
SR 48 kHz
FREQUENCY – kHz
0
–100
120
20
40
60
80
100
–10
–40
–70
–80
–90
–20
–30
–50
–60
–110
–120
–130
–140
Figure 25. Wideband Plot, 37 kHz Input, 4
× Interpolation,
SR 96 kHz
FREQUENCY – kHz
0
–100
30
5
10 15 20 25
–10
–40
–70
–80
–90
–20
–30
–50
–60
–110
–120
–130
–140
–150
–160
35 40 45
50 55 60 65 70 75
80
Figure 26. Wideband Plot, 25 kHz Input, 2
× Interpolation,
SR 192 kHz
FREQUENCY – kHz
0
–100
30
5
10 15 20 25
–10
–40
–70
–80
–90
–20
–30
–50
–60
–110
–120
–130
–140
–150
–160
35 40 45
50 55 60 65 70 75
80
Figure 27. Wideband Plot, 75 kHz Input, 2
× Interpolation,
SR 192 kHz
