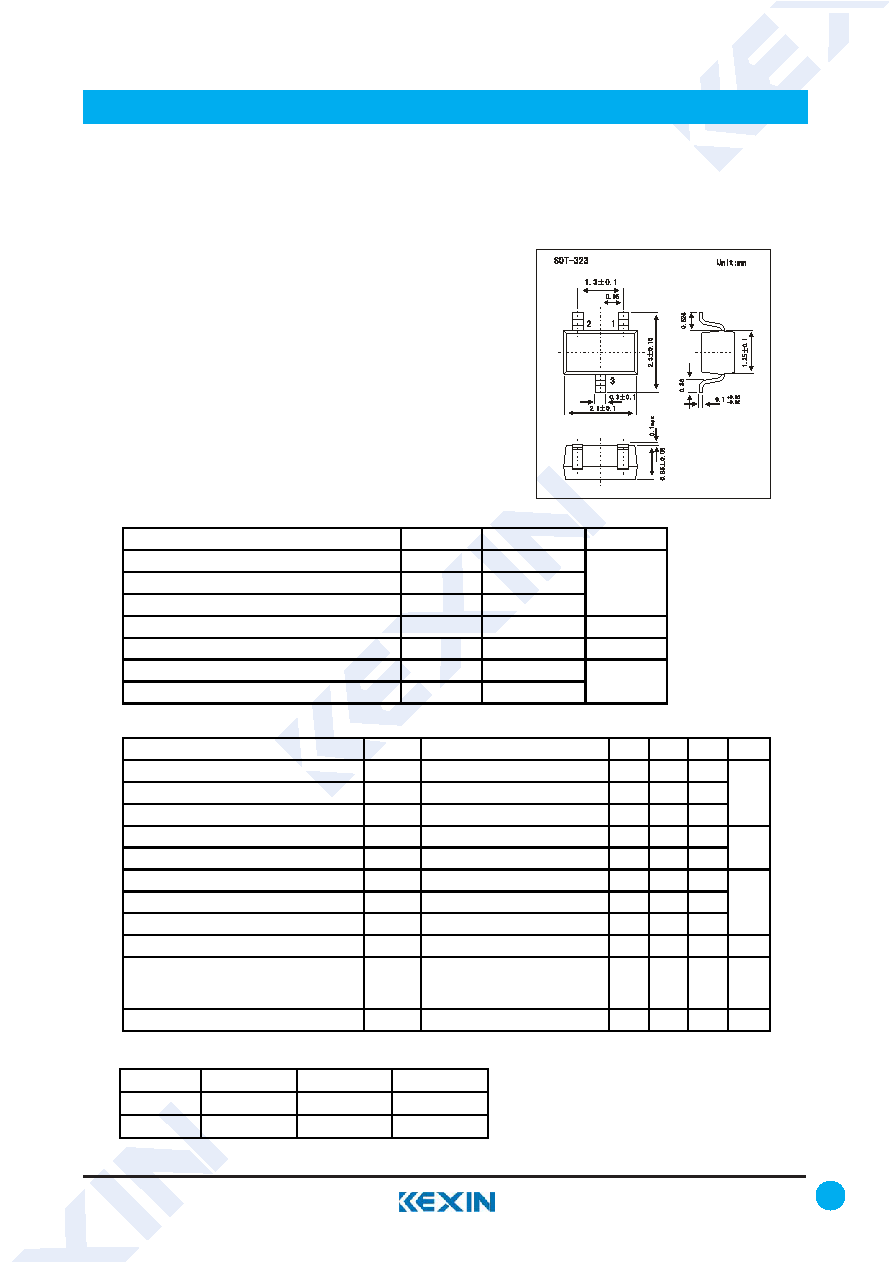

1 / 3 page

SMD Type

www.kexin.com.cn

1

Transistors

PNP Transistors

2SA1531A

■

Features

●

Low noise voltage NV.

●

High foward current transfer ratio hFE.

●

Complementary to 2SC3929A

1 Base

2 Emitter

3 Collector

■

Absolute Maximum Ratings Ta = 25℃

Parameter

Symbol

Rating

Unit

Collector - Base Voltage

VCBO

-55

Collector - Emitter Voltage

VCEO

-55

Emitter - Base Voltage

VEBO

-5

Collector Current - Continuous

IC

-50

mA

Collector Power Dissipation

PC

150

mW

Junction Temperature

TJ

150

Storage Temperature range

Tstg

-55 to 150

V

℃

■

Electrical Characteristics Ta = 25℃

Parameter

Symbol

Test Conditions

Min

Typ

Max

Unit

Collector- base breakdown voltage

VCBO

Ic= -100 μA， IE=0

-55

Collector- emitter breakdown voltage

VCEO

Ic= -2 mA，IB= 0

-55

Emitter - base breakdown voltage

VEBO

IE= -100μA， IC=0

-5

Collector-base cut-off current

ICBO

VCB= -50 V , IE=0

-0.1

Emitter cut-off current

IEBO

VEB= -5 V , IC=0

-0.1

Collector-emitter saturation voltage

VCE(sat) IC=-100 mA, IB=-10 mA

-0.6

Base - emitter saturation voltage

VBE(sat) IC=-100 mA, IB=-10 mA

-1.2

Base - emitter voltage

VBE

VCE= -1V, IC= -100mA

-0.7

-1

DC current gain

hFE

VCE= -5V, IC= -2mA

180

700

Noise voltage

NV

VCE = –10V,IC = –1mA,

GV = 80dB Rg = 100kΩ ,

Function = FLAT

150

mV

Transition frequency

fT

VCE= -10V, IE= 2mA,f=200MHz

80

MHz

V

uA

V

■

Classification of hfe

Type

2SA1531A-R

2SA1531A-S

2SA1531A-T

Range

180-360

260-520

360-700

Marking

HR

HS

HT
