부품명	AK375-5-R

상세설명	HD D-Sub 15pin Female <=> HD D-Sub 15pin Male

PDF	1 Pages

Scroll/Zoom	100%

제조업체	ASSMANN [Assmann Electronics Inc.]

홈페이지	http://www.assmann.us

Logo

1 / 1 page

ASSMANN

Electronics, Inc.

THIS DRAWING IS UNPUBLISHED

All International Rights Reserved

1840 W. Drake Drive, Suite 101 • Tempe, AZ 85283

Toll Free: 1-877-277-6266 • Email: info@usa-assmann.com

RoHS

Compliant

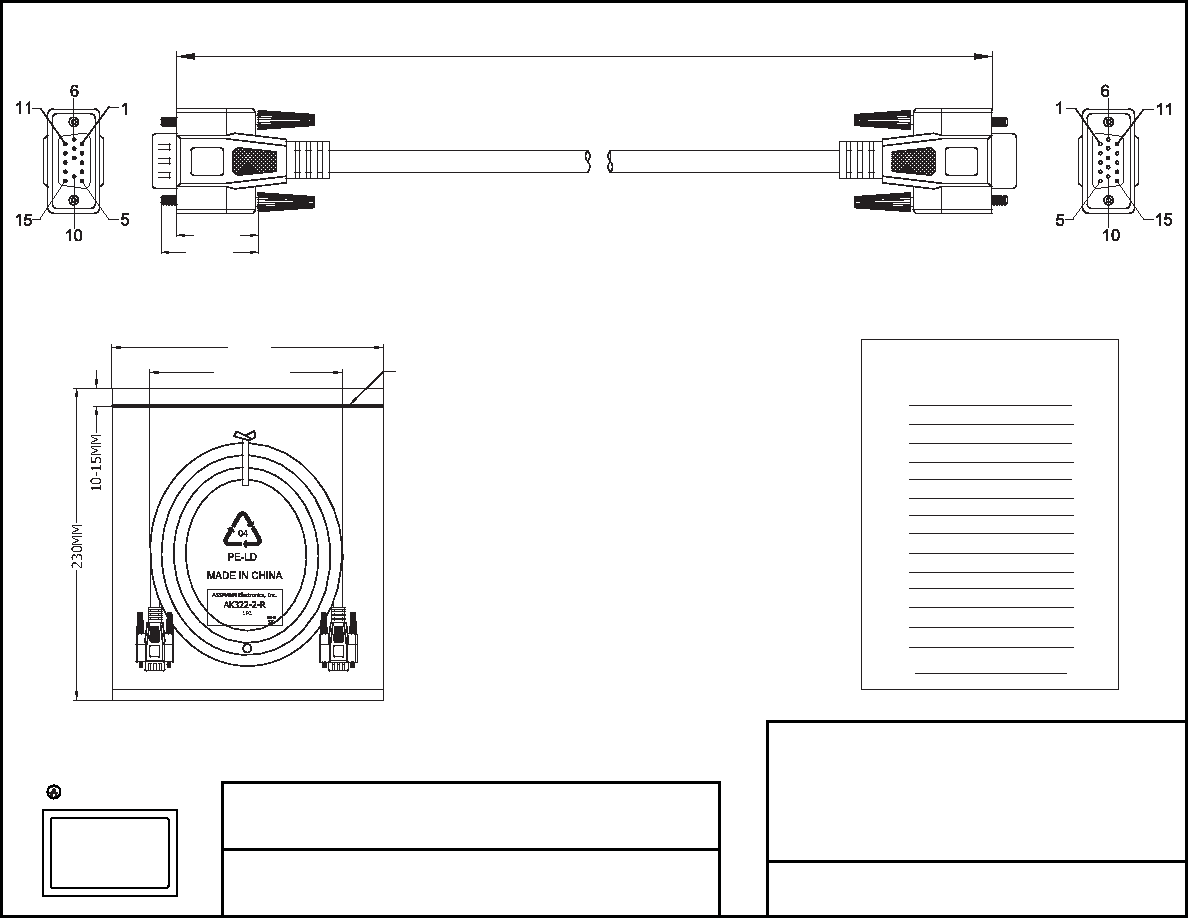

ITEM NO.

TITLE

= Assmann logo

AK375-5-R

VGA Monitor Extension Cable - 5 Meters

HD D-Sub 15pin Female <=> HD D-Sub 15pin Male

Material:

• Cable: NOUL 28AWG(7/0.12TC)*14C+AL/MY+D.W(7/0.12 TC)

- OD Ø6.0±0.15MM

- Outer Jacket Color: Beige(IV-29)

• P1 Connector: HDD15P Male Solder Type

- Pin G/F

- Insulation Color: Blue

- Shell Plate Nickel

• P1 Connector: HDD15P Female Solder Type

- Pin G/F

- Insulation Color: Blue

- Shell Plate Nickel

• Inner Jacket: Clear LDPE

• Outter Jacket: Beige, 40P PVC

• Screw: #4-40UNC

- Length: 47MM

- Nickel Plated

• Copper Foil: Double Sided Conductive Copper

Foil, 18” W25MM*L55MM

Electrical:

• 100% Test, (Open, Short, Miss Wire)

• Contact Resistance: 3

Max.

• Insulation Resistance: 5M

Min.

• Hi-Pot: 300V DC/10ms

5,000MM±50MM

28.8±0.3

32.5±0.3

SEAL

130MM

110MM Max

1PCS / PE Bag

PIN Assignment

P1

1

2

3

4

5

6

7

8

10

11

12

13

14

15

Shell

P2

1

2

3

4

5

6

7

8

10

11

12

13

14

15

Shell

WHITE

GREY

YELLOW

PINK

ORANGE

RED

BROWN

GREEN

BLUE

PURPLE

LIGHT GREEN

LIGHT BLUE

BLACK

WHITE/BLACK

DRAIN

P1

P2

HD 15 Male

HD 15 Female
