A-MCSP-80100-R-R datasheet(1/1 Pages) ASSMANN

부품명	A-MCSP-80100-R-R

상세설명	Cat5e FTP Patch cable

PDF	1 Pages

Scroll/Zoom	100%

제조업체	ASSMANN [Assmann Electronics Inc.]

홈페이지	http://www.assmann.us

Logo

1 / 1 page

RoHS

Compliant

1840 W. Drake Drive, Suite 101 • Tempe, AZ 85283

Toll Free: 1-877-277-6266 • Email: info@assmann.us

Title

Modification

Id.

Date

Name

Date

Name

Drawing-No.

Replace

Sheet

ASSMANN WSW-No.

1/1

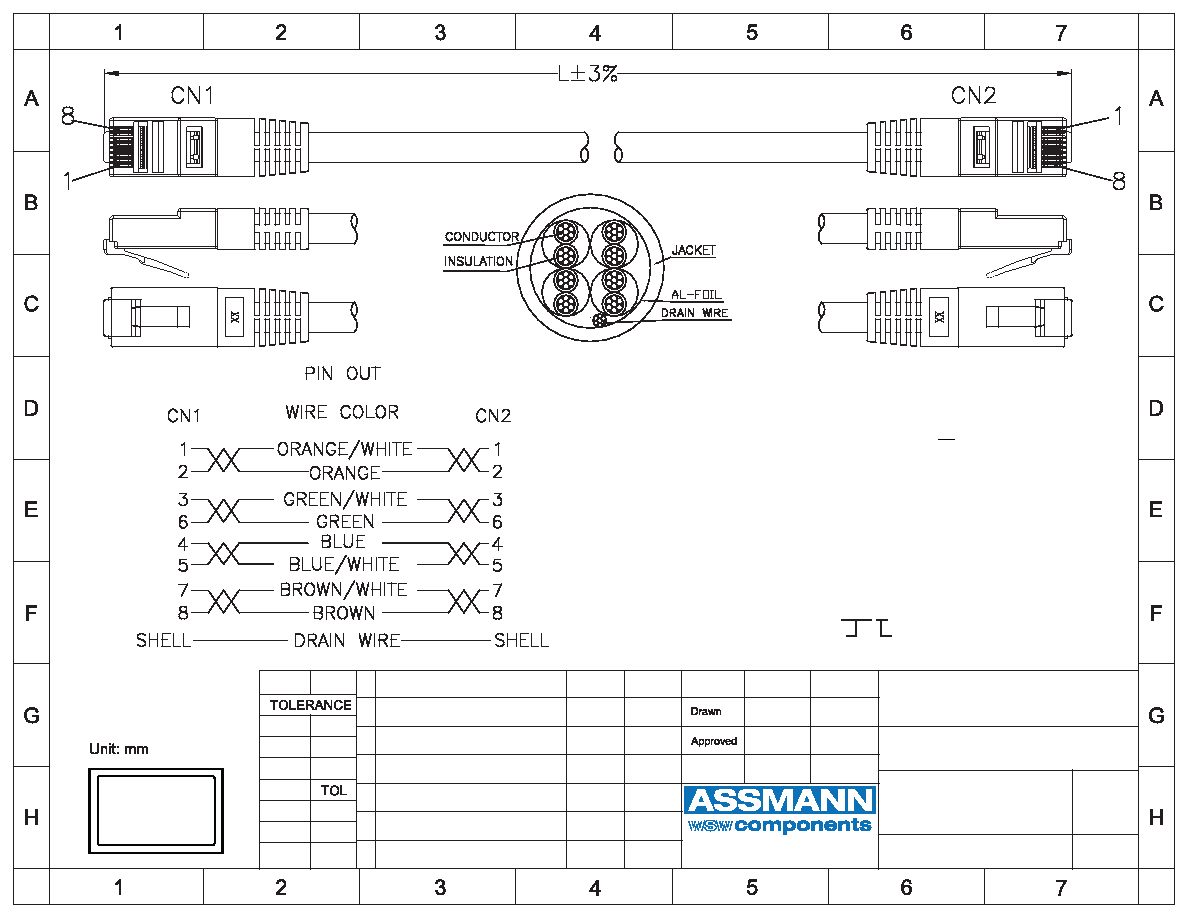

A-MCSP-80xxx/x-R

rev01

Wilson

15.02.13

Cat5e FTP Patch cable

Shielded, 26AWG, colored

Free

Scale

X.

X.X

X.XX

DIM

X.°

X.X°

Angle

TOL

±X

±X°

15.02.13

Wilson

Updated

Groll

15.02.13

Material

• Cable: FTP (26AWG*1PR)*4+D+A+PVC

- OD: 5.2±0.2mm

- Color: Red, Yellow, Green or Blue

• RJ45 Connector: 8P8C

- Two Fork 3 ” Gold plated contacts, metal housing

• Molding PVC: 50P

Electrical

• 100% short, open, miswire test

Order Code:

A-MCSP-80xxx/x-R

Order lengths in meter: 0.5,1,

2,3,5,7,10,15

Order color: (R)Red, (Y)Yellow,

(G)Green, (B)Blue
