2.6 GHz 2x4 MIMO Directional Panel Antenna

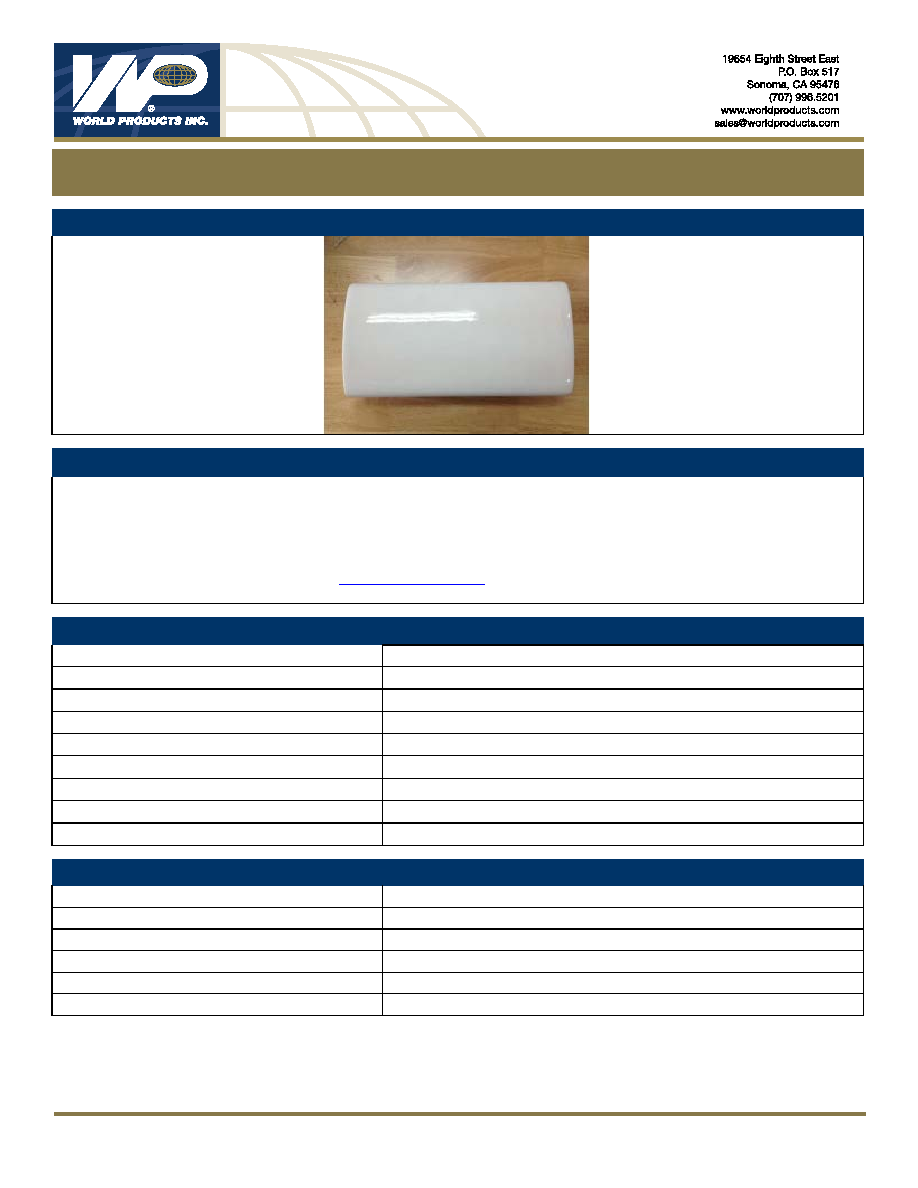

Picture of the Antenna

Description / Application

This is a high gain 2x4 MIMO Panel antenna that operates in the 2.6 GHz WiMAX band. It can be configured with different connector

styles. This antenna is at DC ground for lightning protection.

WP Wireless can assist your engineers to optimize mounting positions for these antennas in your specific application and can further

assist to trouble shoot system integration issues such as TRP/TIS and FCC requirements. WP Wireless specializes in developing

customized Antenna solutions. Please contact sales@wp-wireless.com with your specific application requirements.

Electrical Properties

Operating Frequency

2.5 – 2.7 GHz

Approximate Antenna Impedance [

Ω]

50Ω

VSWR - Typical

< 2:1

Peak Gain [dBi] (Typical)

~ 15 dBi

Polarization

Linear (Vertical or Horizontal)

Isolation between the Ports [dB]

> 20 dB

Pattern

Directional

Accepted Power [W] (Max)

100 Watts

Lightning Protection

DC ground

Mechanical / Environmental Properties

Antenna Dimensions

15.2’’ X 7.5’’ X 2.8’’ (L X W X H)

Antenna Color

White

Connector

N-type Female

Operating / Storage Temperature

-40

Environmental

Meets standards for UL 94V-0

Hazardous Materials

RoHS Compliant
