Specifications GAL16V8

8

In the Simple mode, macrocells are configured as dedicated inputs

or as dedicated, always active, combinatorial outputs.

Architecture configurations available in this mode are similar to the

common 10L8 and 12P6 devices with many permutations of ge-

neric output polarity or input choices.

All outputs in the simple mode have a maximum of eight product

terms that can control the logic. In addition, each output has pro-

grammable polarity.

Pins 1 and 11 are always available as data inputs into the AND

array. The center two macrocells (pins 15 & 16) cannot be used

as input or I/O pins, and are only available as dedicated outputs.

The JEDEC fuse numbers including the UES fuses and PTD fuses

are shown on the logic diagram.

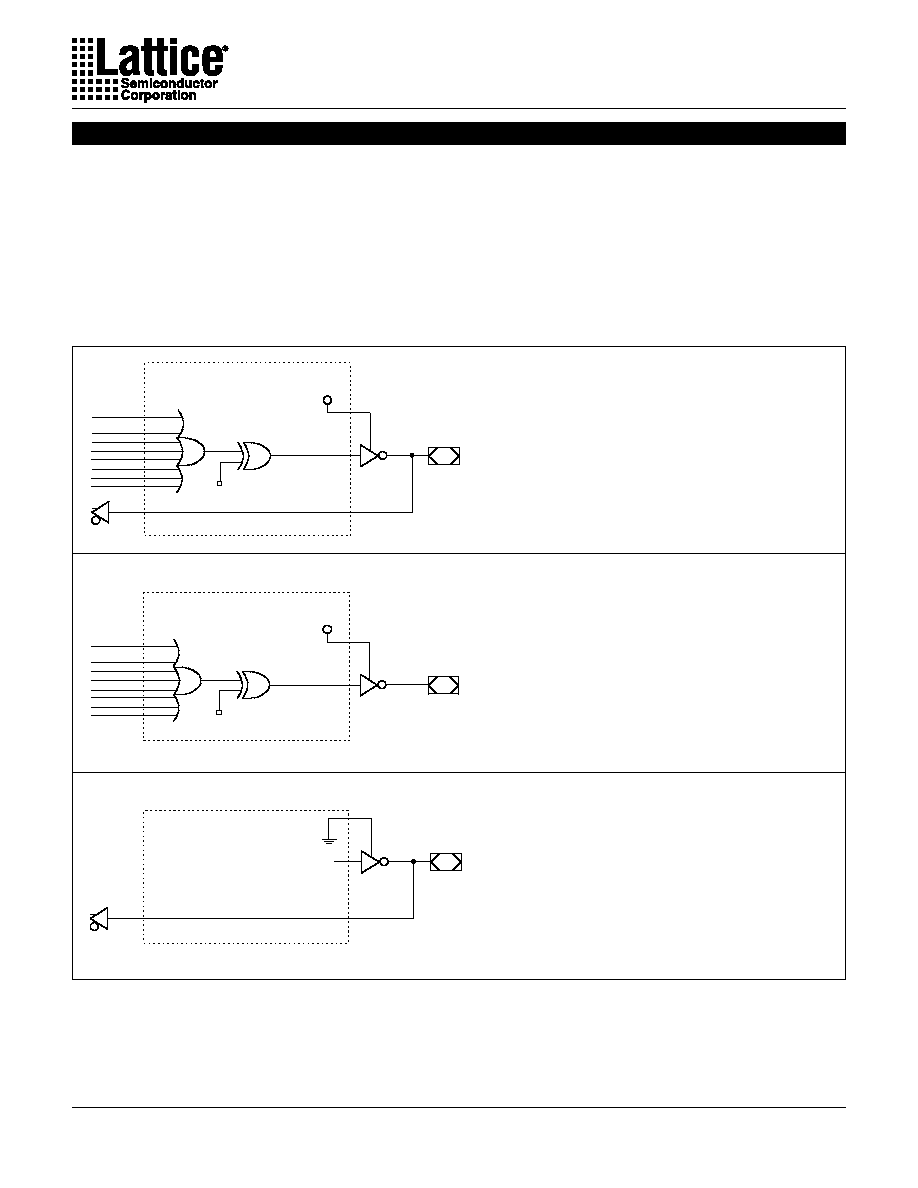

Combinatorial Output with Feedback Configuration

for Simple Mode

- SYN=1.

- AC0=0.

- XOR=0 defines Active Low Output.

- XOR=1 defines Active High Output.

- AC1=0 defines this configuration.

- All OLMC except pins 15 & 16 can be configured to

this function.

Combinatorial Output Configuration for Simple Mode

- SYN=1.

- AC0=0.

- XOR=0 defines Active Low Output.

- XOR=1 defines Active High Output.

- AC1=0 defines this configuration.

- Pins 15 & 16 are permanently configured to this

function.

Dedicated Input Configuration for Simple Mode

- SYN=1.

- AC0=0.

- XOR=0 defines Active Low Output.

- XOR=1 defines Active High Output.

- AC1=1 defines this configuration.

- All OLMC except pins 15 & 16 can be configured to

this function.

Note: The development software configures all of the architecture control bits and checks for proper pin usage automatically.

Vcc

XOR

Vcc

XOR

Simple Mode
