Appendix Standard Serial I/O Mode 1 (Flash Memory Version)

Mitsubishi microcomputers

M16C / 62A Group

SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER

256

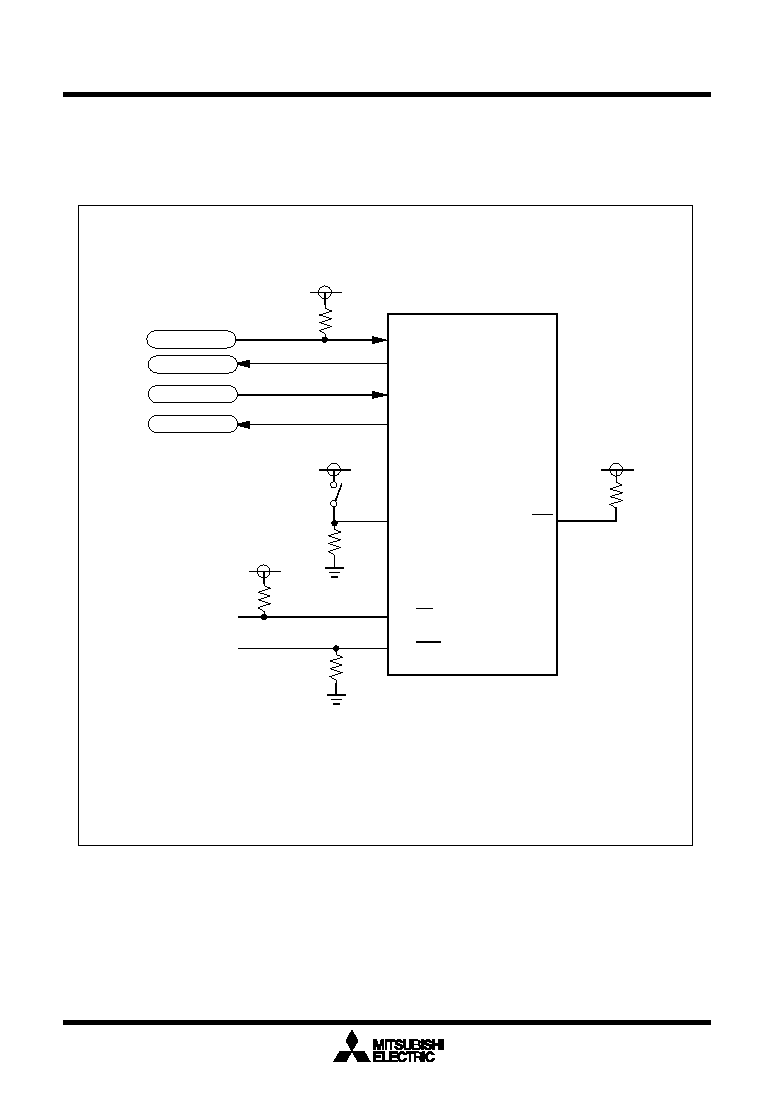

Example Circuit Application for The Standard Serial I/O Mode 1

The below figure shows a circuit application for the standard serial I/O mode 1. Control pins will vary

according to programmer, therefore see the peripheral unit manual for more information.

Figure 1.29.21. Example circuit application for the standard serial I/O mode 1

RTS1(BUSY)

CLK1

RXD1

TXD1

CNVss

Clock input

BUSY output

Data input

Data output

P50(CE)

P55(EPM)

M16C/62A Flash

memory version

(1) Control pins and external circuitry will vary according to peripheral unit.

For more information, see the peripheral unit manual.

(2) In this example, the microprocessor mode and standard serial I/O mode

are switched via a switch.

NMI
