NJG1104KB2
- 11 -

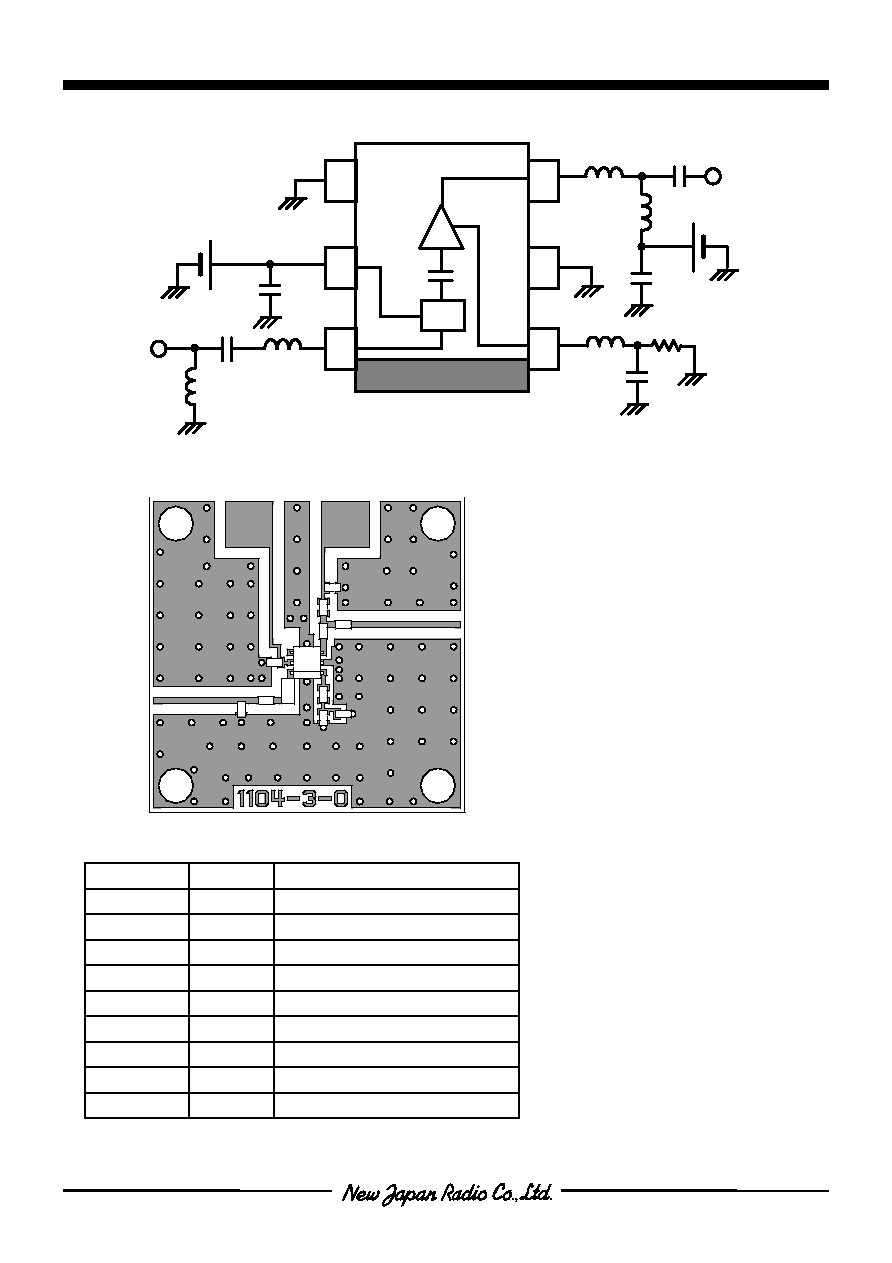

nRECOMMENDED CIRCUIT
nRECOMMENDED PCB DESIGN
Parts List (f=830~900MHz)
PARTS ID
Constant
Comment
L1
22nH
TAIYO-YUDEN HK1005 Series
L2
22nH
TAIYO-YUDEN HK1608 Series
L3
22nH
TAIYO-YUDEN HK1005 Series
L4
15nH
TAIYO-YUDEN HK1005 Series
L5
5.6nH
TAIYO-YUDEN HK1005 Series
C1, C4, C5
1000pF
MURATA GRM36 Series
C2
6pF
MURATA GRM36 Series
C3
100pF
MURATA GRM36 Series
R1
120
Ω
-
PCB: FR4 t=0.2mm
MICROSTRIP LINE WIDTH=0.4mm(Zo=50
Ω)
PCB SIZE: 20.0x20.0mm
RF Input
RF Output
L1
L2
C1
L5
R1
C3
L3
L4
C5
C4
V
CONT
V
DD
C2
PRECAUTIONS
1) The inductor of 1608 size is
recommended for NF
characteristics.
2) The value of C3 is selected
to get lower gain and higher
output IP3.
RF Output
RF Input
C3
VCONT=0.2V to 1.7V
GND
VDD=2.8V
ATT
AMP
C1
L2
L1
L3
L4
C2
C4
C5
GND
L5
R1
1
2
3
6
5
4
RFout
SOURCE
RFin
Vcont
