NJG1107KB2
- 18 -
L1
L2
R1
L3 C1
C2
C3
NJG1107
RF IN
RF OUT

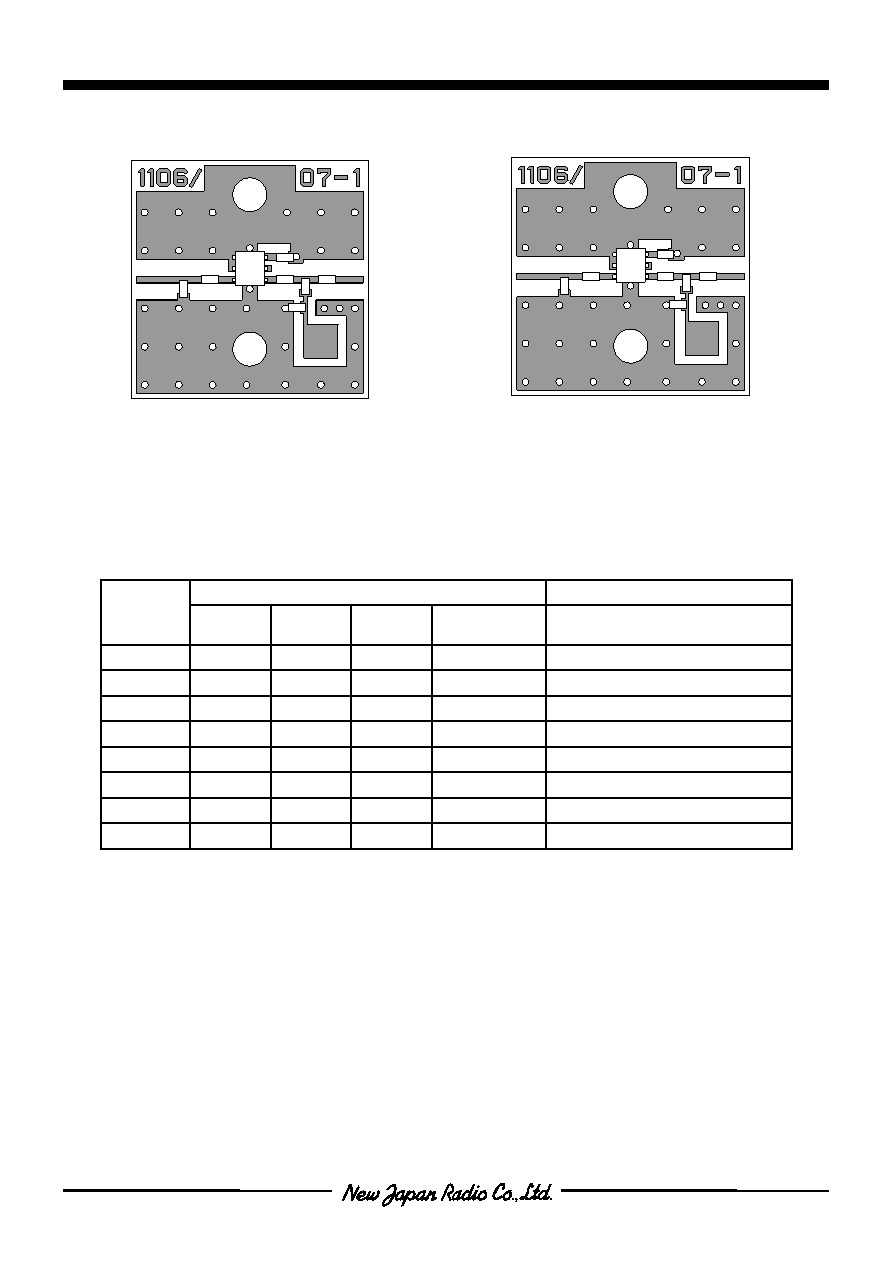

nRECOMMENDED PCB DESIGN
Parts List
Constant
Comment
Parts ID
1.5GHz
Band
1.9GHz
Band
1.8GHz
Band
1.5GHzBand
Low Gain
L1
10nH
5.6nH
6.8nH
10nH
TAIYO-YUDEN HK1005 Series
L2
12nH
5.6nH
8.2nH
12nH
TAIYO-YUDEN HK1005 Series
L3
5.6nH
3.9nH
6.8nH
6.8nH
TAIYO-YUDEN HK1005 Series
L4
15nH
10nH
12nH
-
TAIYO-YUDEN HK1005 Series
C1
5pF
13pF
30pF
0.75pF
MURATA GRM36 Series
C2
1000pF
1000pF
1000pF
1000pF
MURATA GRM36 Series
C3
1000pF
1000pF
1000pF
10pF
MURATA GRM36 Series
R1
-
-
-
36
Ω
PCB: FR4 t=0.2mm
MICROSTRIP LINE WIDTH=0.4mm(Zo=50
Ω)
PCB SIZE: 14.0 x 14.0mm
1.5/1.8/1.9GHz Band
1.5GHz Band, Low Gain Version
L1
L2
L3
L4
C1
C2
C3
NJG1107
RF IN
RF OUT
(Top View)
(Top View)
