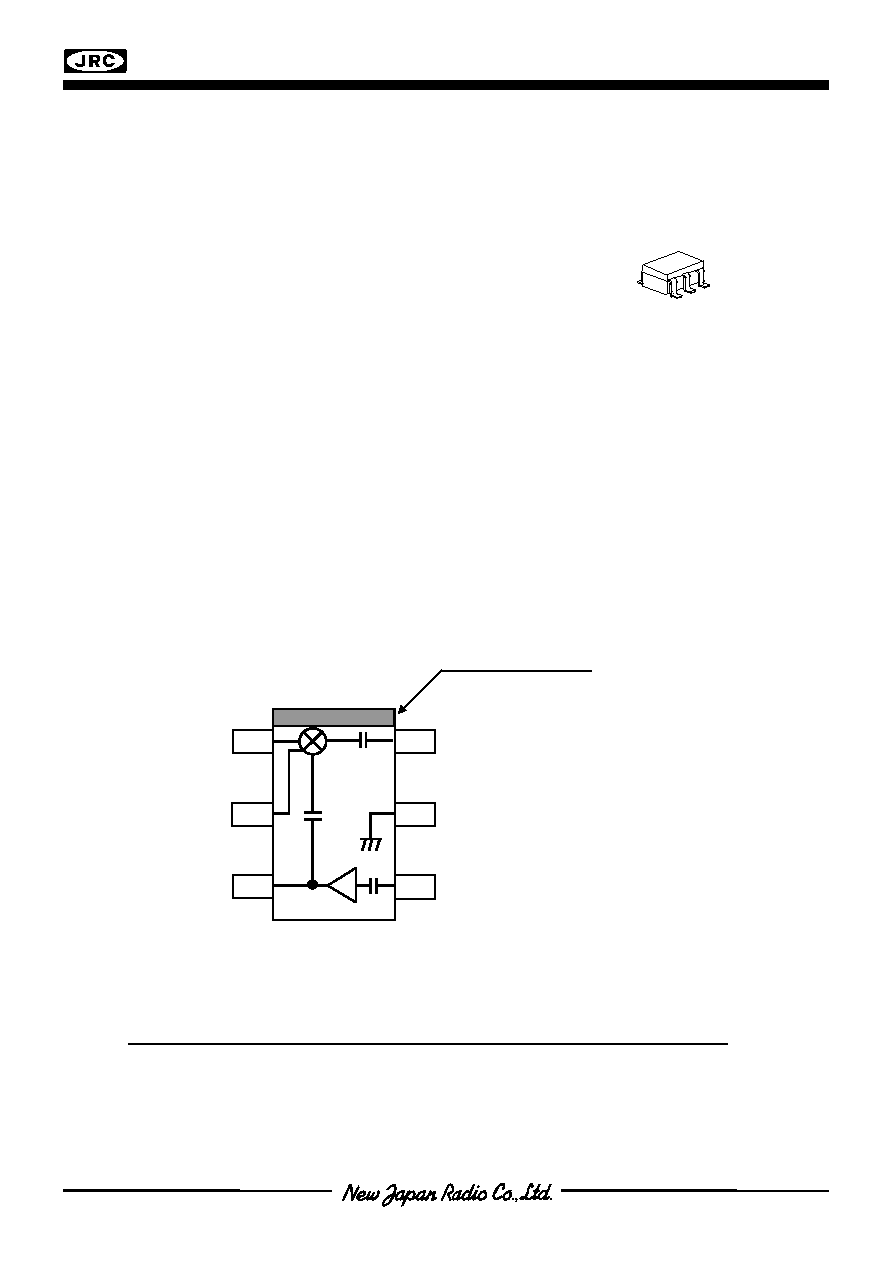

NJG1553BF

- 1 -

1.9GHz BAND MIXER GaAs MMIC

nGENARAL DESCRIPTION

nPACKAGE OUTLINE

NJG1553BF is a GaAs MMIC MIXER IC with built-in

local amplifier for 1.9GHz PCS applications.

This mixer features high conversion gain, low noise

figure and low distortion.

nFEATURES

lLow Voltage Operation

+2.7V

lLow Current Consumption

7.0mA

lHigh Conversion Gain

11dB typ.

@fRF=1960MHz, PRF=-30dBm

fLO=2090MHz, PLO=-10dBm

lLow noise figure

7dB typ.

@fRF=1960MHz, fLO=2090MHz, PLO=-10dBm

lHigh Input IP3

-1dBm typ. @fRF1=1960.0MHz, fRF2=1960.1MHz, PRF=-30dBm

fLO=2090MHz, PLO=-10dBm

lSmall package

MTP6 (Mount Size: 2.8x2.9x1.2mm)

nPIN CONFIGURATION

NJG1553BF

1

2

3

6

5

4

Pin Connection

1. IFOUT

2. BPC

3. VLO

4. LOIN

5. GND

6. RFIN

F Type

(Top View)

Package orientation mark

NOTE: Please note that any information on this catalog will be subject to change.
