QBHP684U-XXV series

3W High Power LED

---------------------------------------------------------------------------------------------------------------------------------------

Product: QBHP684U-XXV Series

Date: April 28, 2015

Page 3 of 11

Version# 2.1

Introduction

Feature:

 Package in tape and reel

 3W High Bright LED

 Low thermal resistance < 6°C/W

 Super high flux and luminance

 AlInGaP technology for R and Y

 InGaN technology for IB and IG

 ESD Protection (IB and IG)

 ESD protection up to 8KV

Description:

This 3W high bright high power LED has compact

size of 3.6 x 3.6mm. It is ideal for both in door and

outdoor lighting

Application:

 Architectural and outdoor lighting

 Household appliances

 General lighting

Certification & Compliance:

 TS16949

 ISO9001

 RoHS Compliant

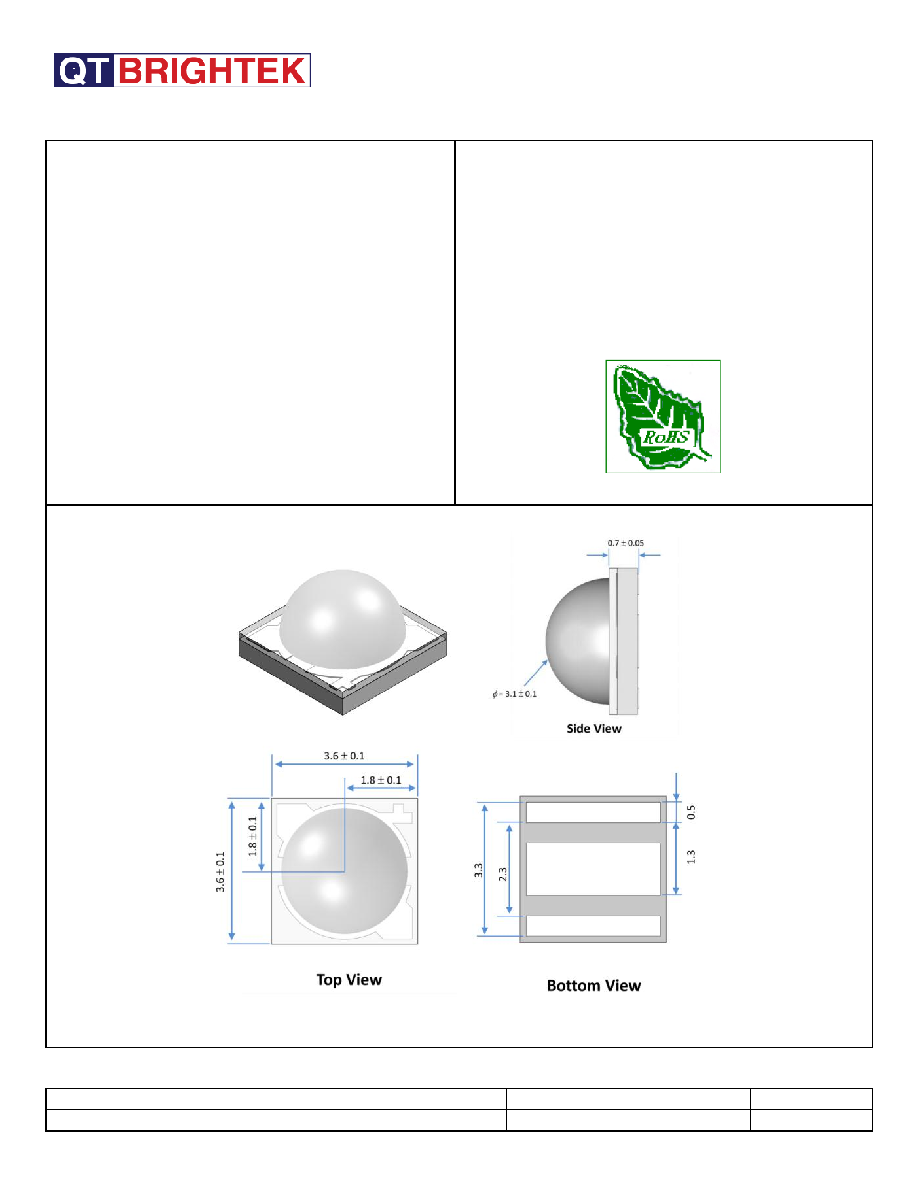

Dimension:

Units: mm / tolerance = +/-0.1mm
