QBLP653 Series

1208 LED

---------------------------------------------------------------------------------------------------------------------------------------

Product: QBLP653_series

Date: April 23, 2014

Page 3 of 14

Version# 1.5

Introduction

Feature:

 Water clear lens

 Package in tap and reel

 Bright 1208 LED package

 InGaN technology for IB/IG/IW

 AllnGaP technology for R/AG/Y/O

 15° Viewing Angle (R/AG/Y/O/IB/IG)

 130° Viewing Angle (IW)

Description:

This reversed mount light weight bright 1208 LEDs

have a height profile of 2.5mm. With narrow viewing

angle, LED produces high bright light output.

Application:

 Status indication

 Back lighting application

Certification & Compliance:

 TS16949

 ISO9001

 RoHS Compliant

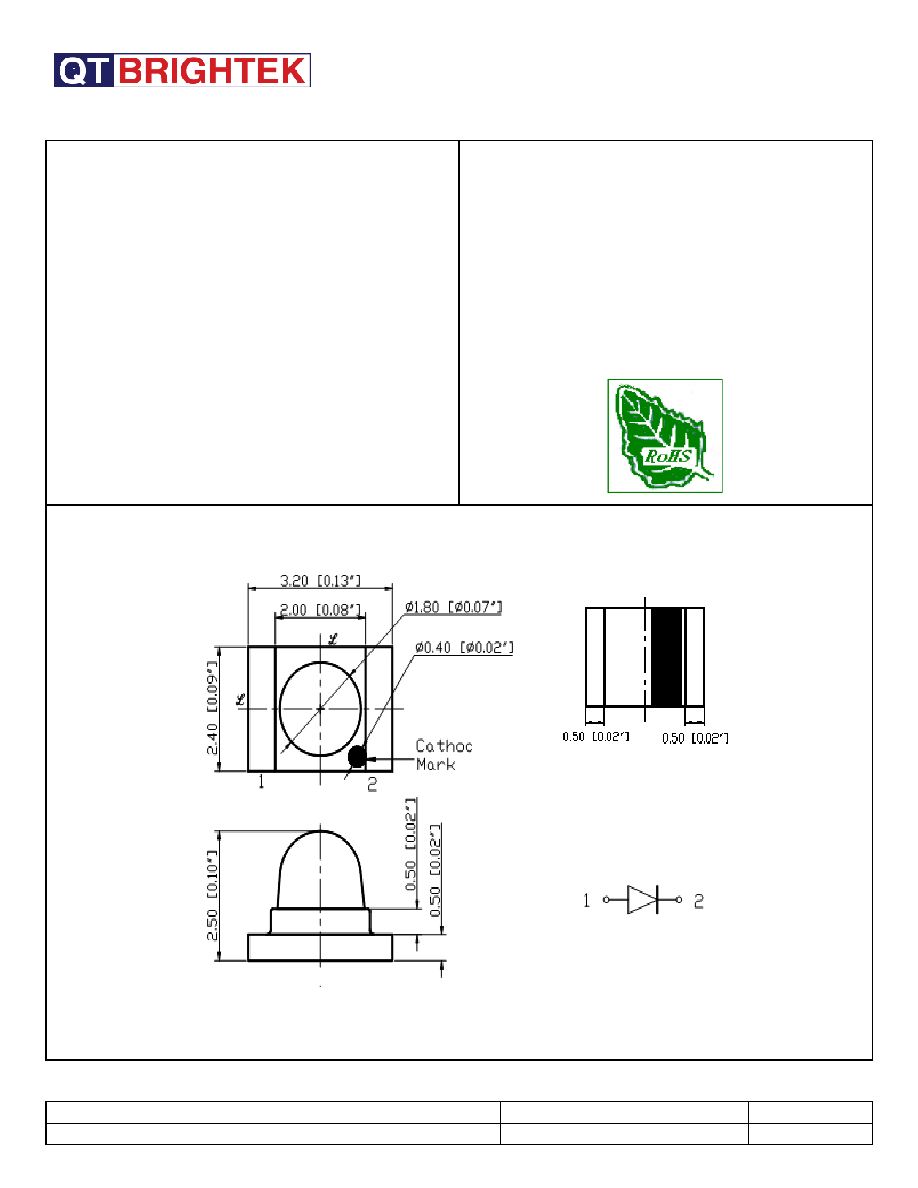

Dimension:

Units: mm / tolerance = +/-0.1mm
