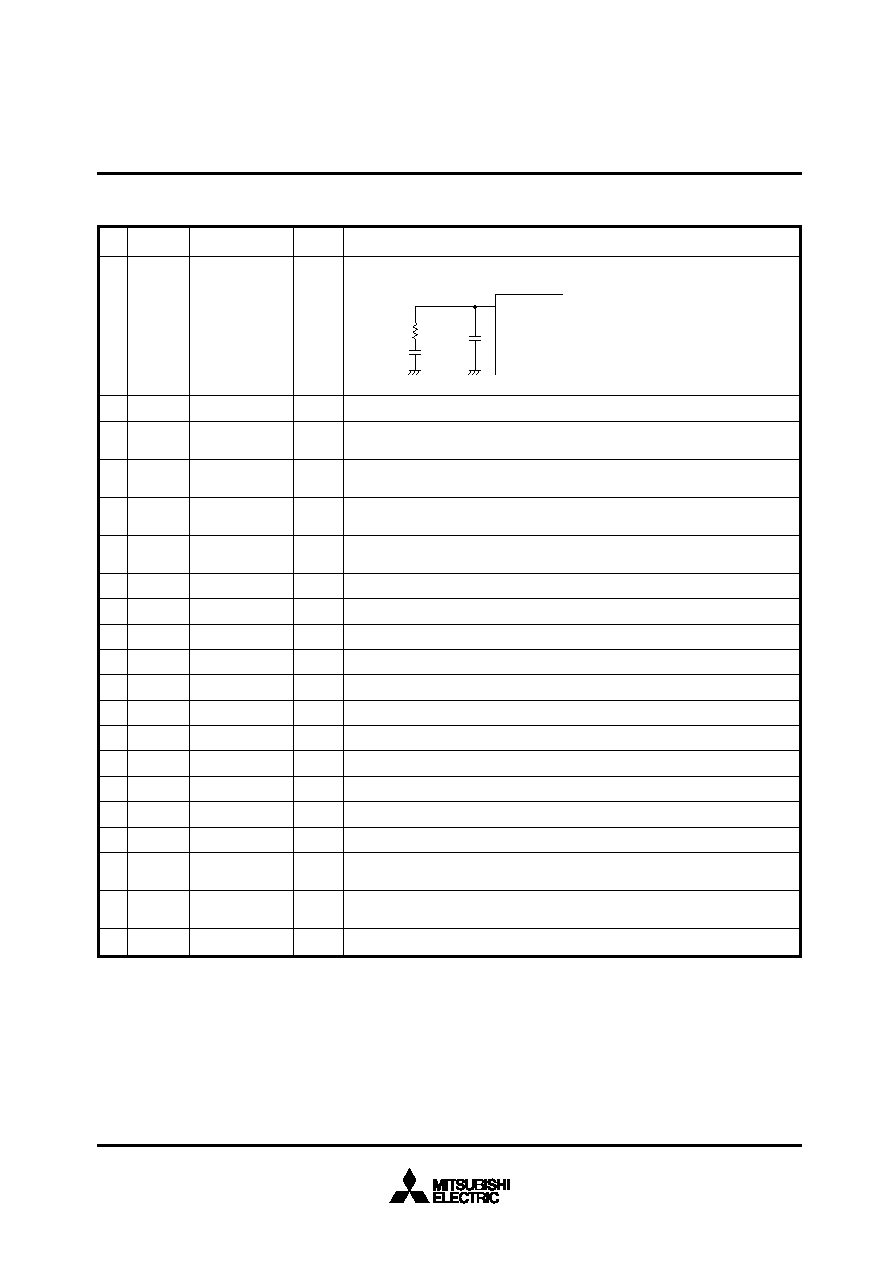

2 / 37 page  2 MITSUBISHI MICROCOMPUTERS M35045-XXXSP/FP SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS Symbol CPOUT VIR __ AC __ CS SCK SIN TCK VDD1 P6 P7 VSS P0/BLNK0 P1/R P2 P3/G P4 P5/B HOR VERT VDD2 Input/ Output Output – Input Input Input Input Input – Output Output – Output Output Output Output Output Output Input Input – Function Connect loop filter to this pin. Connect to GND. When “L”, this pin resets the internal IC circuit. Hysteresis input. Includes built-in pull-up resistor. This is the chip select pin, and when serial data transmission is being carried out, it goes to “L”. Hysteresis input. Includes built-in pull-up resistor. __ When CS pin is “L”, SIN serial data is taken in when SCK rises. Hysteresis input. Built-in pull-up resistor is included. This is the pin for serial input of data and addresses for the display control register and the display data memory. Hysteresis input. Includes built-in pull-up resistor. Input for test. Please connect to GND using circuit earthing pin. Please connect to +5V with the power pin. This is the output port. Port data is set by PTD6. This is the output port. Port data is set by PTD7. Please connect to GND using circuit earthing pin. This pin can be toggled between port pin output and BLNK0 signal output. This pin can be toggled between port pin output and R signal output. This is the output port. Port data is set by PTD2. This pin can be toggled between port pin output and G signal output. This is the output port. Port data is set by PTD4. This pin can be toggled between port pin output and B signal output. This pin inputs the horizontal synchronization signal. Hysteresis input. This pin inputs the vertical synchronization signal. Hysteresis input. Please connect to +5V with the power pin. Pin name Phase difference Frequency control Auto-clear input Chip select input Serial clock input Serial data input Test clock Power pin Port P6 output Port P7 output Earthing pin Port P0 output Port P1 output Port P2 output Port P3 output Port P4 output Port P5 output Horizontal synchro- nization signal input Vertical synchroni- zation signal input Power pin Pin Number 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PIN DESCRIPTION 2.4k Ω ∗1 0.1µF ∗2 4700pF ∗2 CPOUT ∗1 Use at 1% precision ∗2 Use at 10% precision 1pin |
|
