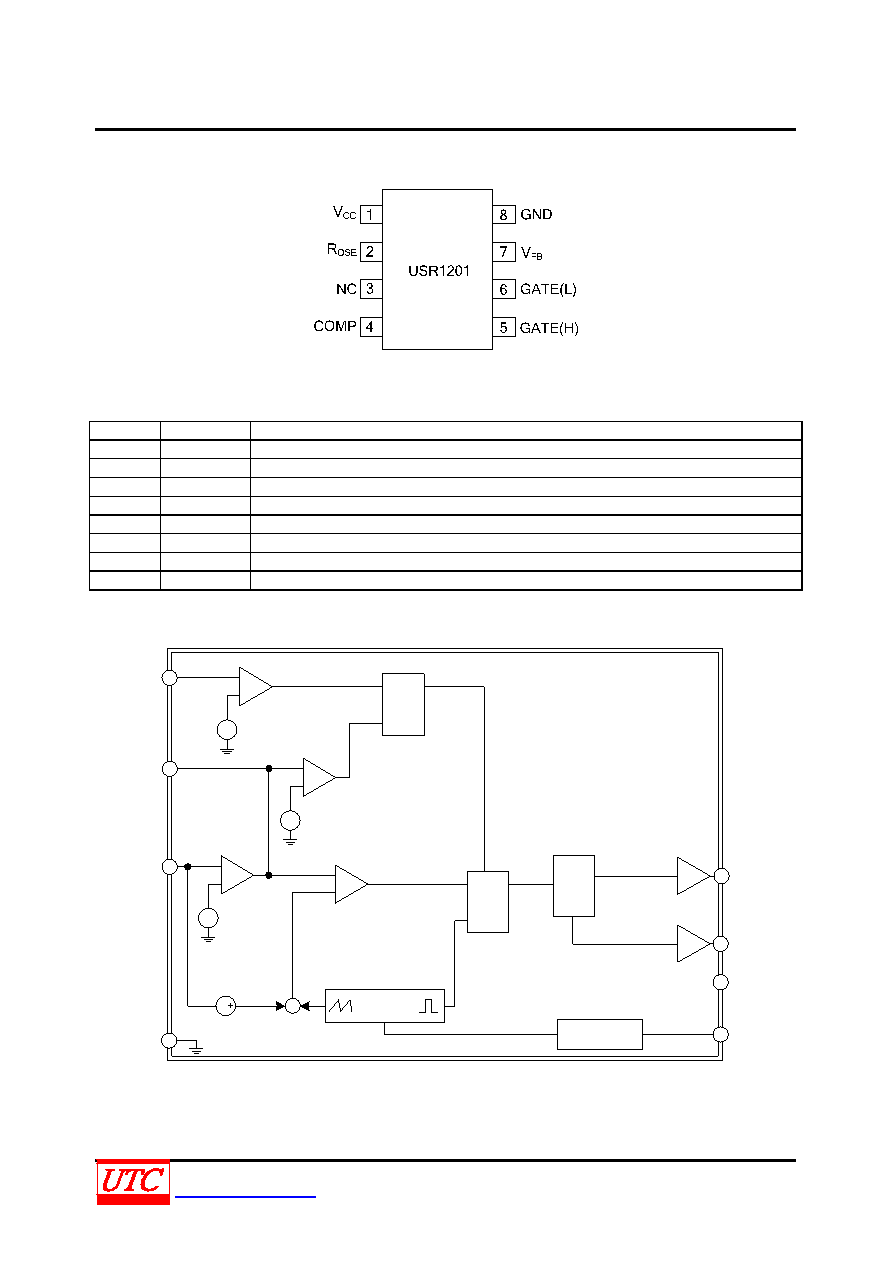

background image
UCS1201
Preliminary
LINEAR INTEGRATED CIRCUIT
UNISONICTECHNOLOGIESCO.,LTD
2 of 5
www.unisonic.com.tw
QW-R103-066.a
PIN CONFIGURATION
PIN DESCRIPTION
PIN NO.
PIN NAME
DESCRIPTION
1
VCC
Power supply input.
2
ROSC
Frequency adjust pin.
3
NC
No connect.
4
COMP
Error amp output.
5
GATE(H)
High-side switch FET driver pin.
6
GATE(L)
Low-side synchronous FET driver pin.
7
VFB
Feedback voltage
8
GND
Ground
BLOCK DIAGRAM
VCC
-
+
+
-
-
+
+
-
-
+
+
-
-
-
+
Σ
Oscillator
200kHz
Frequency
Adjust
0.465V
0.98V
Error Amp
0.25V
8.5V/7.5V
UVLO
PWM Comp
Latch
Latch
GATE(L)
NC
ROSC
GATE(H)
VFB
COMP
Driver
GND
