A

B

C

D

4

3

2

1

D

C

B

A

1

2

4

3

Description

Material

Finish

Body

Socket

Insulation

Gold

Teflon

Gold

Teflon

Brass

BE CU

CONNECTOR CITY

159 ORT LANE

MERLIN, OR 97532

PH (541)-471-6256

FAX (541)-471-6251

Date:

Sheet 1 of 1

Revision:

Title

Part No.

Dimensions:

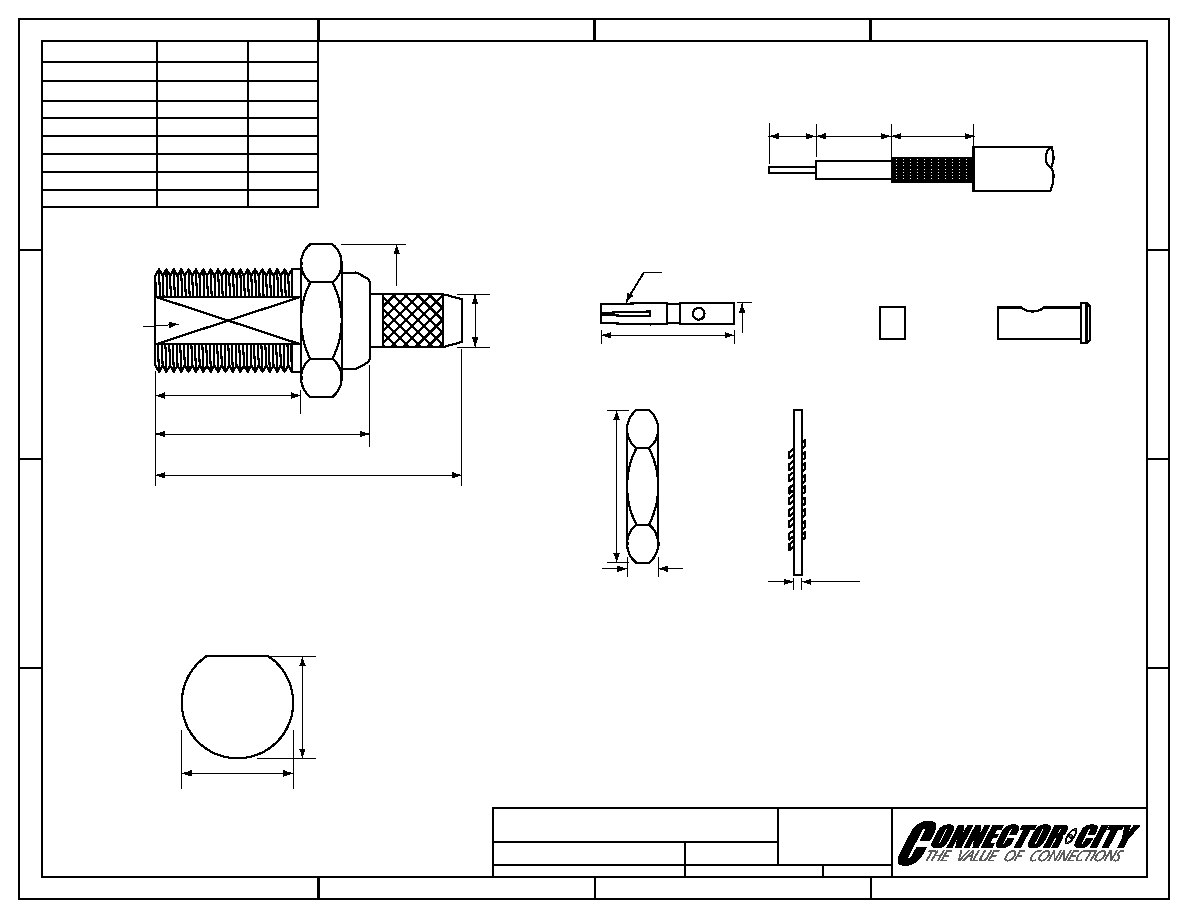

MCX FEMALE BULKHEAD MOUNT

CABLE END CRIMP FOR RG178 CABLE

CONMCX005-R178

1.0

INCHES (mm)

6/7/2006

0.228

(5.80)

0.020

(0.50)

RECOMMENDED CABLE STRIPPING DIMENSIONS

0.141

(3.60)

RG-178 Cable

0.055

(1.40)

10-56 UNS-2A

THREADS

H0.250

(6.35)

0.020

(0.50)

Ø0.037

(0.95)

0.244

(6.20)

PIN CHUCK

0.2x2x2 GROOVE

CONMCX005-R178 ASSEMBLY INSTRUCTIONS

Ø0.102

(2.60)

0.272

(6.90)

10-56 UNS-2A

THREADS

H0.250

(6.35)

0.378

(9.60)

0.571

(14.50)

FLAT 0.173

(4.40)

Crimp Ring

Gold

Brass

Nut

Gold

Brass

Washer

Gold

Brass

1. Strip the cable to the recommended dimensions.

2. Solder the support onto the braid.

3. Place the spacer onto the center conductor.

4. Solder or crimp the socket onto the center conductor.

5. Insert the socket, center conductor, spacer, and support into the body

until the top of the socket is even with the white insulation in the body.

6. Crimp the tail of the body onto the support with a hex crimp tool.

SPACER

SUPPORT

Support

Gold

Brass

Spacer

Teflon

Teflon

SIDE VIEW

SOCKET

NUT

WASHER

FLAT 0.173

(4.40)

RECOMMENDED MOUNTING

HOLE

Ø0.187

(4.75)
