CONMCX007-R178 데이터시트(PDF) 1 Page - List of Unclassifed Manufacturers

부품명 CONMCX007-R178
상세설명  MCX MALE CABLE END CRIMP FOR RG178 CABLE
PDF  1 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  ETC2 [List of Unclassifed Manufacturers]
홈페이지
Logo ETC2 - List of Unclassifed Manufacturers

CONMCX007-R178 데이터시트(HTML) 1 Page - List of Unclassifed Manufacturers

  CONMCX007-R178 Datasheet HTML 1Page - List of Unclassifed Manufacturers
Zoom Inzoom in Zoom Outzoom out
 1 / 1 page
background image
A
B
C
D
4
3
2
1
D
C
B
A
1
2
4
3
Description
Material
Finish
Body
Pin
Insulation
Gold
Teflon
Gold
Teflon
Brass
Brass
CONNECTOR CITY
159 ORT LANE
MERLIN, OR 97532
PH (541)-471-6256
FAX (541)-471-6251
Date:
Sheet 1 of 1
Revision:
Title
Part No.
Dimensions:

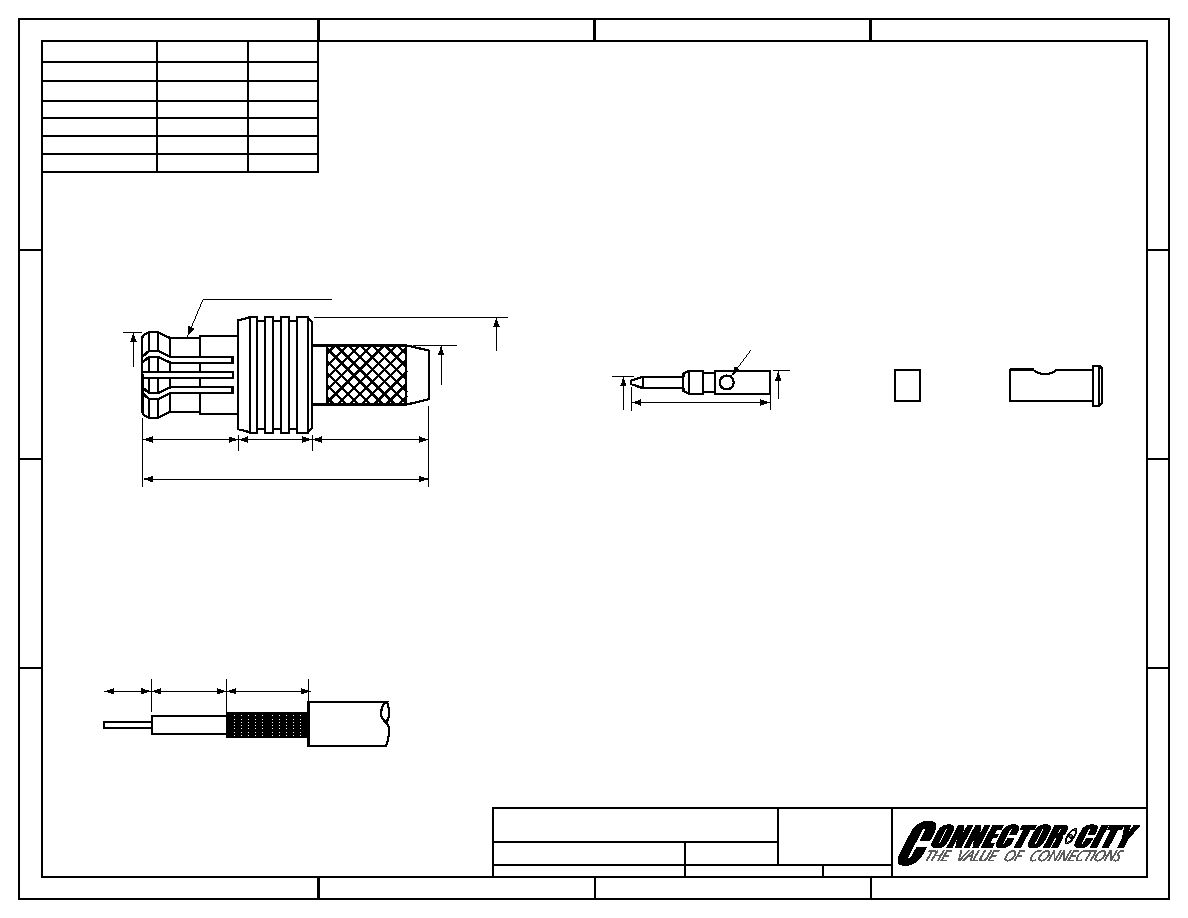

MCX MALE CABLE END CRIMP
FOR RG178 CABLE
CONMCX007-R178
1.0
INCHES (mm)
6/8/2006
0.236
(6.00)
0.020
(0.50)
RECOMMENDED CABLE STRIPPING DIMENSIONS
0.110
(2.80)
RG-178 Cable
CONMCX007-R178 ASSEMBLY INSTRUCTIONS
Snaps
Gold
BE CU
Ø0.037
(0.95)
0.232
(5.90)
Ø0.019
(0.48)
Ø0.020
(0.5)
Ø0.106
(2.70)
0.197
(5.00)
0.488
(12.40)
Ø0.197
(5.00)
Ø0.148
(3.75)
0.126
(3.20)
0.165
(4.20)
BOYD CHUCK
0.3x3.9x5 GROOVE
Spacer
Teflon
Teflon
SIDE VIEW
PIN
SPACER
SUPPORT
Support
Gold
Brass
1. Strip the cable to the recommended dimensions.
2. Solder the support onto the braid.
3. Place the spacer onto the center conductor.
4. Solder or crimp the pin onto the center conductor.
5. Insert the pin, center conductor, spacer, and support into the body
until the pin snaps in.
6. Crimp the tail of the body onto the support with a hex crimp tool.
