A

B

C

D

4

3

2

1

D

C

B

A

1

2

4

3

Description

Material

Finish

Body

Socket

Insulation

Gold

Teflon

Gold

Teflon

Brass

BE CU

CONNECTOR CITY

159 ORT LANE

MERLIN, OR 97532

PH (541)-471-6256

FAX (541)-471-6251

Date:

Sheet 1 of 1

Revision:

Title

Part No.

Dimensions:

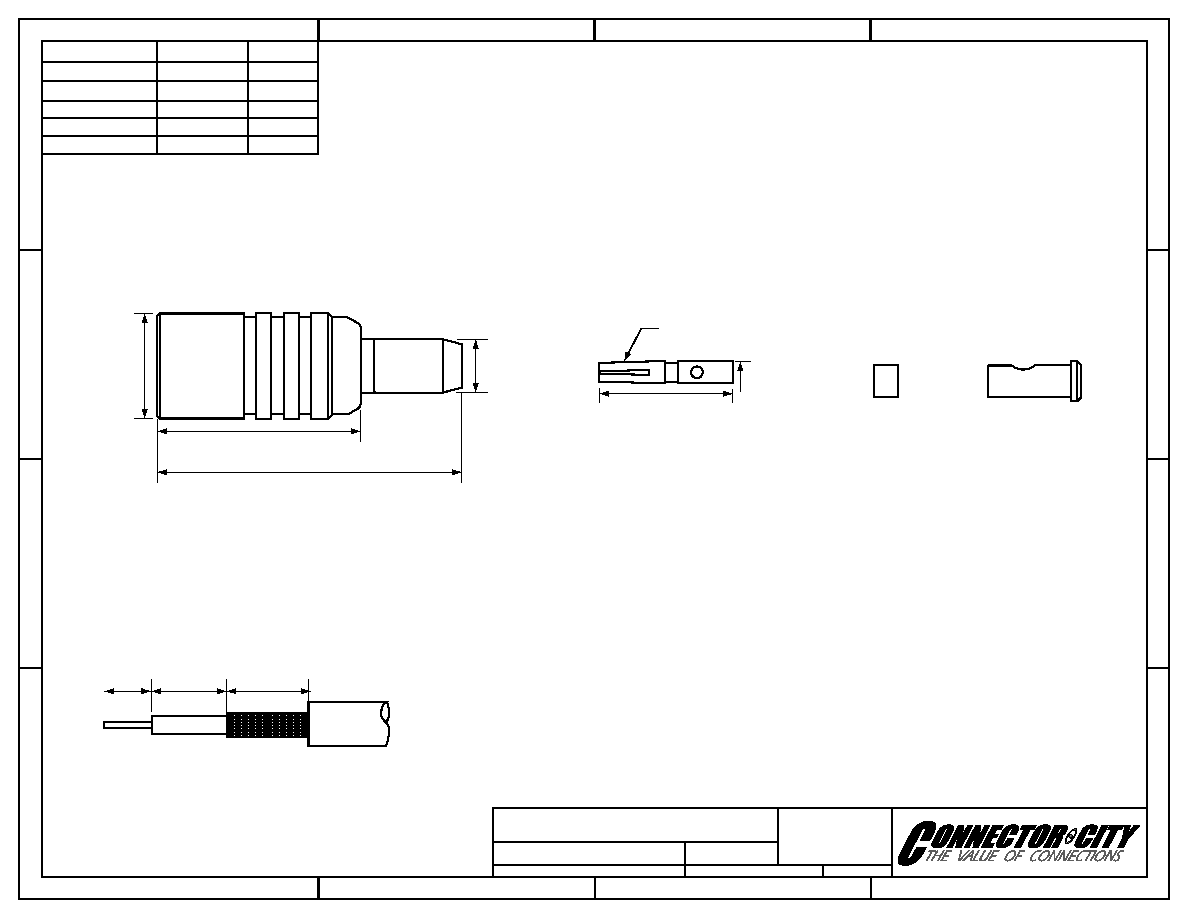

MCX FEMALE CABLE END CRIMP

FOR RG178/U and RG196/U CABLE

CONMCX011-R178

1.1

INCHES (mm)

7/23/2008

0.217

(5.50)

0.020

(0.50)

RECOMMENDED CABLE STRIPPING DIMENSIONS

0.142

(3.60)

RG-178 Cable

Ø0.037

(0.95)

0.244

(6.20)

PIN CHUCK

0.2x2x2 GROOVE

CONMCX011-R178 ASSEMBLY INSTRUCTIONS

Support

Gold

Brass

Ø0.106

(2.7)

0.382

(9.70)

0.575

(14.60)

Ø0.197

(5.00)

SPACER

SUPPORT

Spacer

Teflon

Teflon

SIDE VIEW

SOCKET

1. Strip the cable to the recommended dimensions.

2. Solder the support onto the braid.

3. Place the spacer onto the center conductor.

4. Solder or crimp the socket onto the center conductor.

5. Insert the socket, center conductor, spacer, and support into the body

until the socket snaps in.

6. Crimp the tail of the body onto the support with a hex crimp tool.
