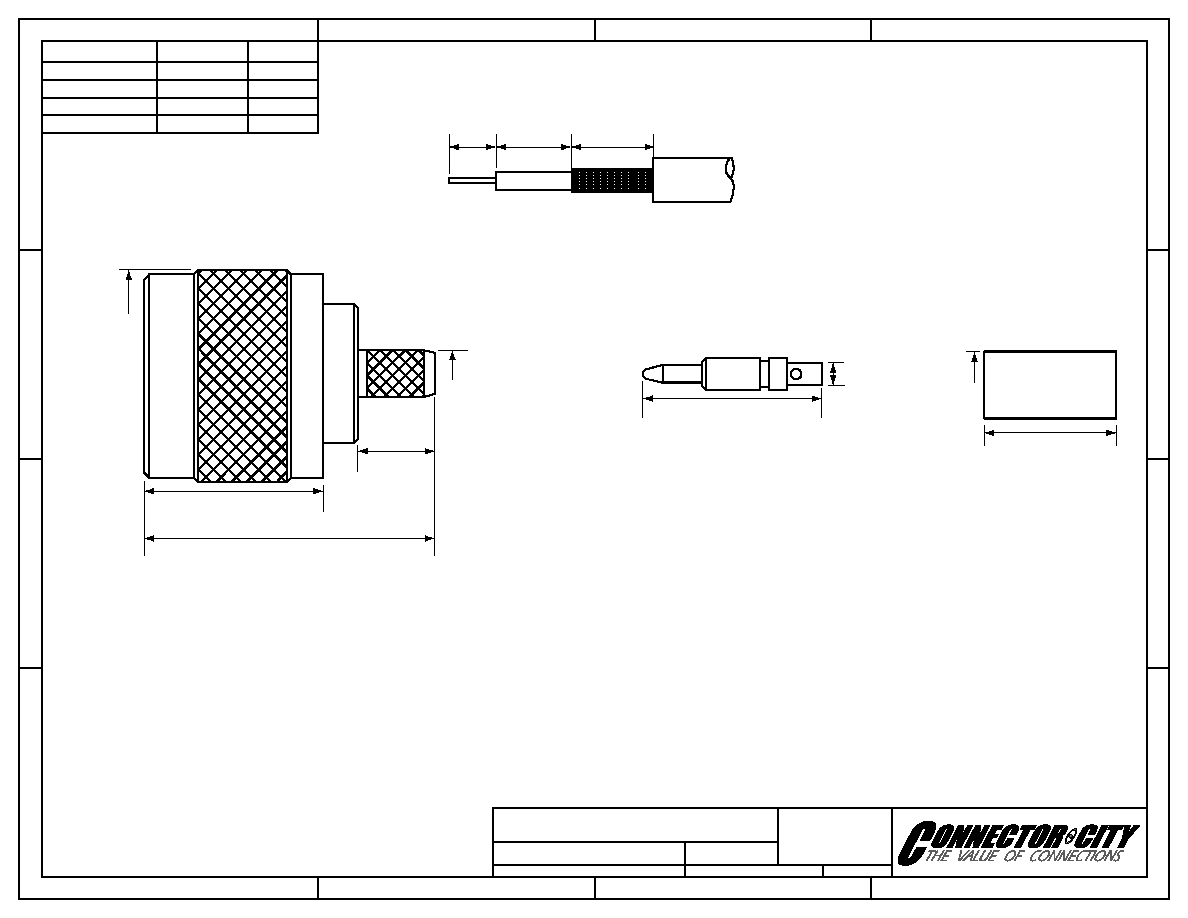

N MALE CABLE END CRIMP

FOR RG58 CABLE

0.276

(7.00)

0.094

(2.40)

RECOMMENDED CABLE STRIPPING DIMENSIONS

0.118

(3.00)

RG-58 Cable

Description

Material

Finish

CONNECTOR CITY

159 ORT LANE

MERLIN, OR 97532

PH (541)-471-6256

FAX (541)-471-6251

Date:

Sheet 1 of 1

Revision:

Title

Part No.

Dimensions:

CONN007-R58

1.0

INCHES (mm)

2/20/2008

1.

Solder the socket to the center conductor.

2.

Insert the socket, center conductor, and insulator into the body.

3.

Wrap the braid around the tail of the body and crimp the ring with a

hex crimp tool labeled for use with RG-58 cable.

CONN007-R58 ASSEMBLY INSTRUCTIONS

Body

Nickel

Brass

Pin

Gold

Brass

Crimp Ring

Nickel

Brass

Insulation

N/A

Teflon

0.500

(12.70)

Ø0.256

(6.50)

CRIMP RING

0.689

(17.50)

∅0.083

(2.10)

PIN

5/8-24UNEF-2B THREADS

SIDE VIEW

∅0.803

(20.40)

0.287

(7.30)

0.661

(16.80)

∅0.177

(4.50)

1.106

(28.10)
