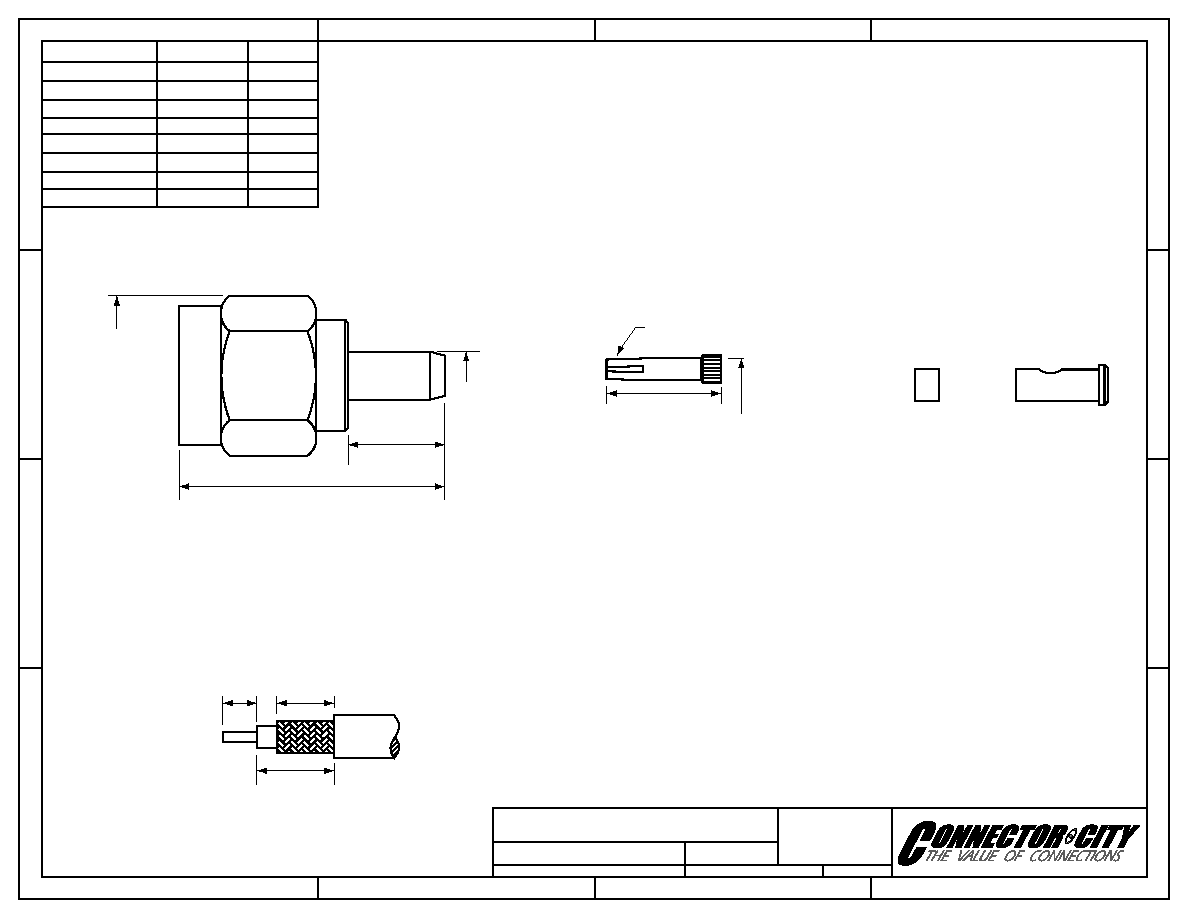

RP-SMA MALE CABLE END

CRIMP FOR RG178 CABLE

0.254

(6.50)

0.177

(4.50)

RECOMMENDED CABLE STRIPPING DIMENSIONS

0.118

(3.00)

RG-178 Cable

1. Strip the cable to the recommended dimensions.

2. Solder the support onto the braid.

3. Place the spacer onto the center conductor.

4. Solder or crimp the socket onto the center conductor.

5. Insert the socket, center conductor, spacer, and support into the body

until the top of the socket is even with the white insulation in the body.

6. Crimp the tail of the body onto the support with a hex crimp tool.

CONREVSMA007-R178 ASSEMBLY INSTRUCTIONS

Description

Material

Finish

Body

Socket

Insulation

Nickel

Teflon

Gold

Teflon

Brass

BE CU

Washer

PH Bronze

Gold

Gasket

Rubber

SI Rubber

Crimp Ring

Nickel

Brass

CONNECTOR CITY

159 ORT LANE

MERLIN, OR 97532

PH (541)-471-6256

FAX (541)-471-6251

Date:

Sheet 1 of 1

Revision:

Title

Part No.

Dimensions:

CONREVSMA007-R178

1.0

INCHES (mm)

5/31/2006

0.197

(5.00)

0.577

(14.65)

Ø0.102

(2.60)

1/4-36UNF-2B

THREADS

H0.311

(7.90)

0.240

(6.10)

Ø0.049

(1.25)

PIN CHUCK

0.2x2x2 GROOVE

Spacer

Teflon

Teflon

Support

Gold

Brass

SPACER

SUPPORT

SIDE VIEW

SOCKET
