4066

CMOS IC

UNISONICTECHNOLOGIESCO.,LTD

5 of 7

www.unisonic.com.tw

QW-R502-009.F



SPECIAL CONSIDERATIONS

In applications where separate power sources are used to drive VDD and the signal input, the VDD current capability

should exceed VDD/RL (RL=effective external load of the UTC 4066 bilateral switches).This provision avoids any

permanent current flow or clamp action of the VDD supply when power is applied or removed from UTC 4066.

In certain applications, the external load-resistor current may include both VDD and Signal-line components. To

avoid drawing VDD current when switch current flows into terminals 1,4,8 or 11,the voltage drop across the

bidirectional swith must not exceed 0.6V at TA ≤ 25°C, or 0.4V at TA >25°C (calculated from RON values shown).

NO VDD current will flow through RL if the switch current flows into terminals2, 3, 9 or 10.



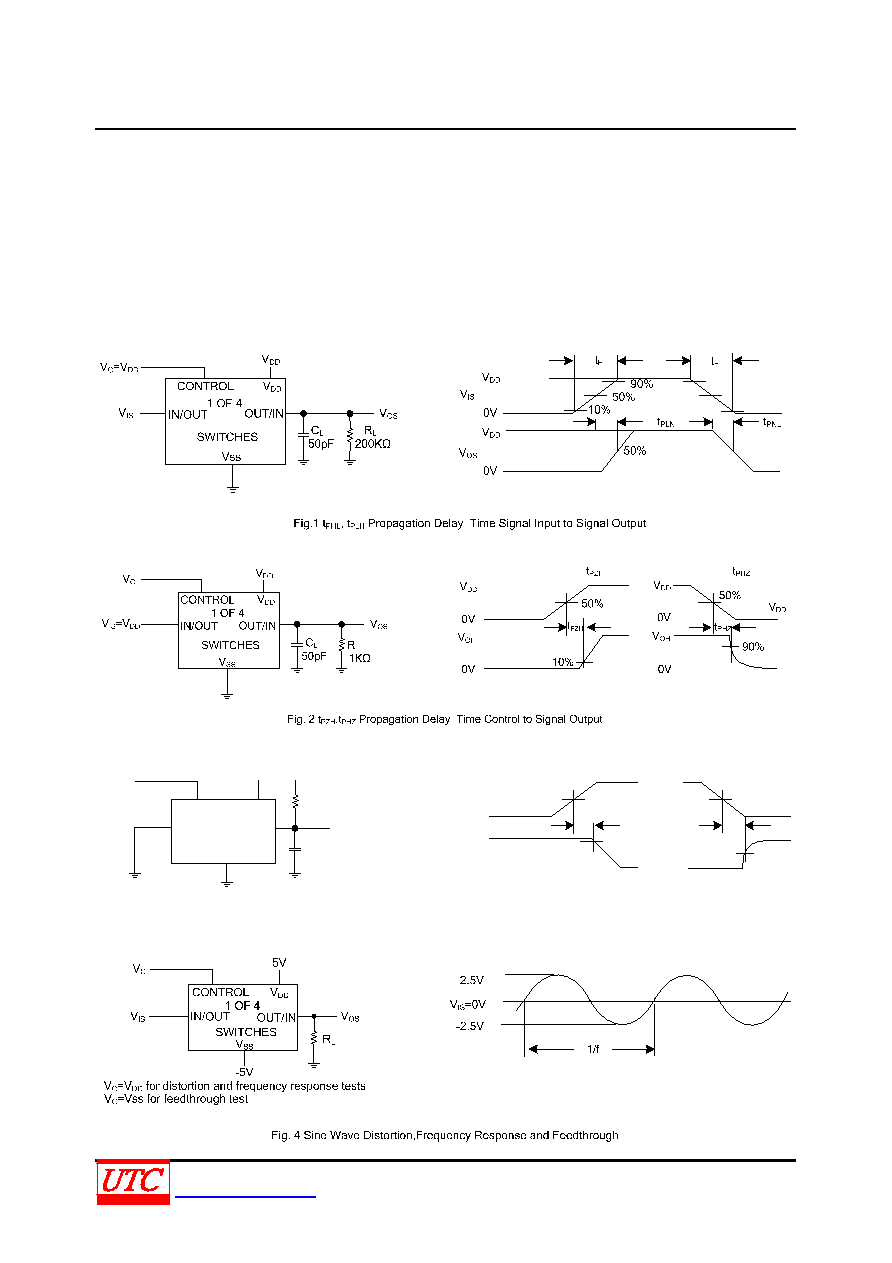

AC TEST CIRCUITS AND SWITCHING TIME WAVEFORMS

CONTROL

VDD

IN/OUT

OUT/IN

VSS

1 OF 4

SWITCHES

VDD

VOS

1KΩ

50%

VDD

VOL

tPLZ

Fig. 3 tPZL,tPLZ Propagation Delay Time Control to Signal Output

VIS=0V

tPZL

VDD

50%

tPZL

tPLZ

VDD

90%

10%

VDD

VOL

50pF
