CONSMA007-R58 데이터시트(PDF) 1 Page - List of Unclassifed Manufacturers

부품명 CONSMA007-R58
상세설명  SMA MALE CABLE END CRIMP FOR RG58 CABLE
PDF  1 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  ETC2 [List of Unclassifed Manufacturers]
홈페이지
Logo ETC2 - List of Unclassifed Manufacturers

CONSMA007-R58 데이터시트(HTML) 1 Page - List of Unclassifed Manufacturers

  CONSMA007-R58 Datasheet HTML 1Page - List of Unclassifed Manufacturers
Zoom Inzoom in Zoom Outzoom out
 1 / 1 page
background image
A
B
C
D
4
3
2
1
D
C
B
A
1
2
4
3

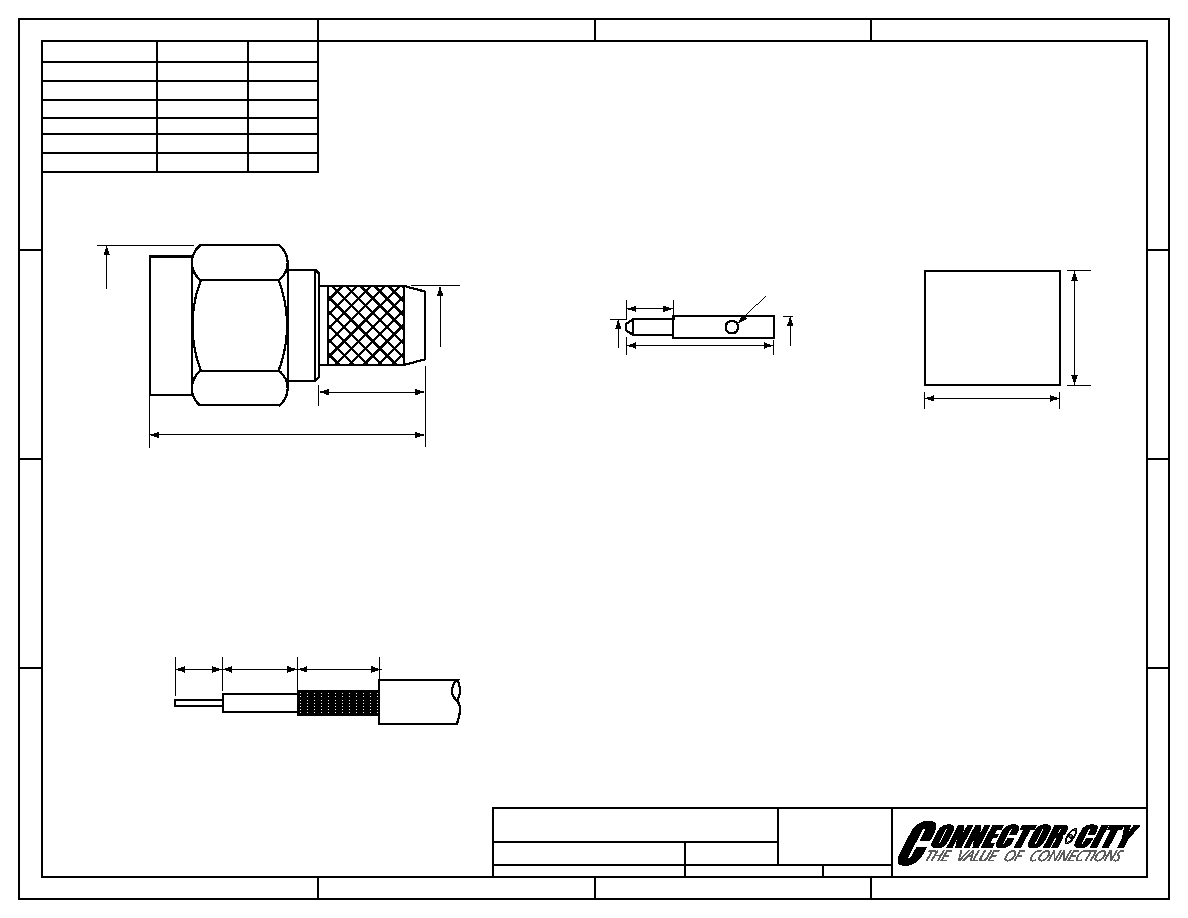

SMA MALE CABLE END
CRIMP FOR RG58 CABLE
0.276
(7.00)
0.079
(2.00)
RECOMMENDED CABLE STRIPPING DIMENSIONS
0.098
(2.50)
RG-58 Cable
1.
Solder the pin to the center conductor.
2.
Insert the pin, center conductor, and insulator into the body
until the top of the pin is even with the body.
3.
Wrap the braid around the tail of the body and crimp the ring with a
hex crimp tool.
CONSMA007-R58 ASSEMBLY INSTRUCTIONS
Description
Material
Finish
Body
Pin
Insulation
Nickel
Teflon
Gold
Teflon
Brass
BE CU
Washer
PH Bronze
Gold
Gasket
Rubber
SI Rubber
Crimp Ring
Nickel
Brass
CONNECTOR CITY
159 ORT LANE
MERLIN, OR 97532
PH (541)-471-6256
FAX (541)-471-6251
Date:
Sheet 1 of 1
Revision:
Title
Part No.
Dimensions:
CONSMA007-R58
1.0
INCHES (mm)
6/2/2006
0.500
(12.70)
Ø0.256
(6.50)
0.276
(7.00)
0.656
(16.65)
Ø0.177
(4.50)
1/4-36UNF-2B
THREADS
H0.311
(7.90)
0.339
(8.60)
Ø0.024
(0.60)
Ø0.049
(1.25)
0.106
(2.70)
Ø0.035
(0.90)
SIDE VIEW
PIN
CRIMP RING
