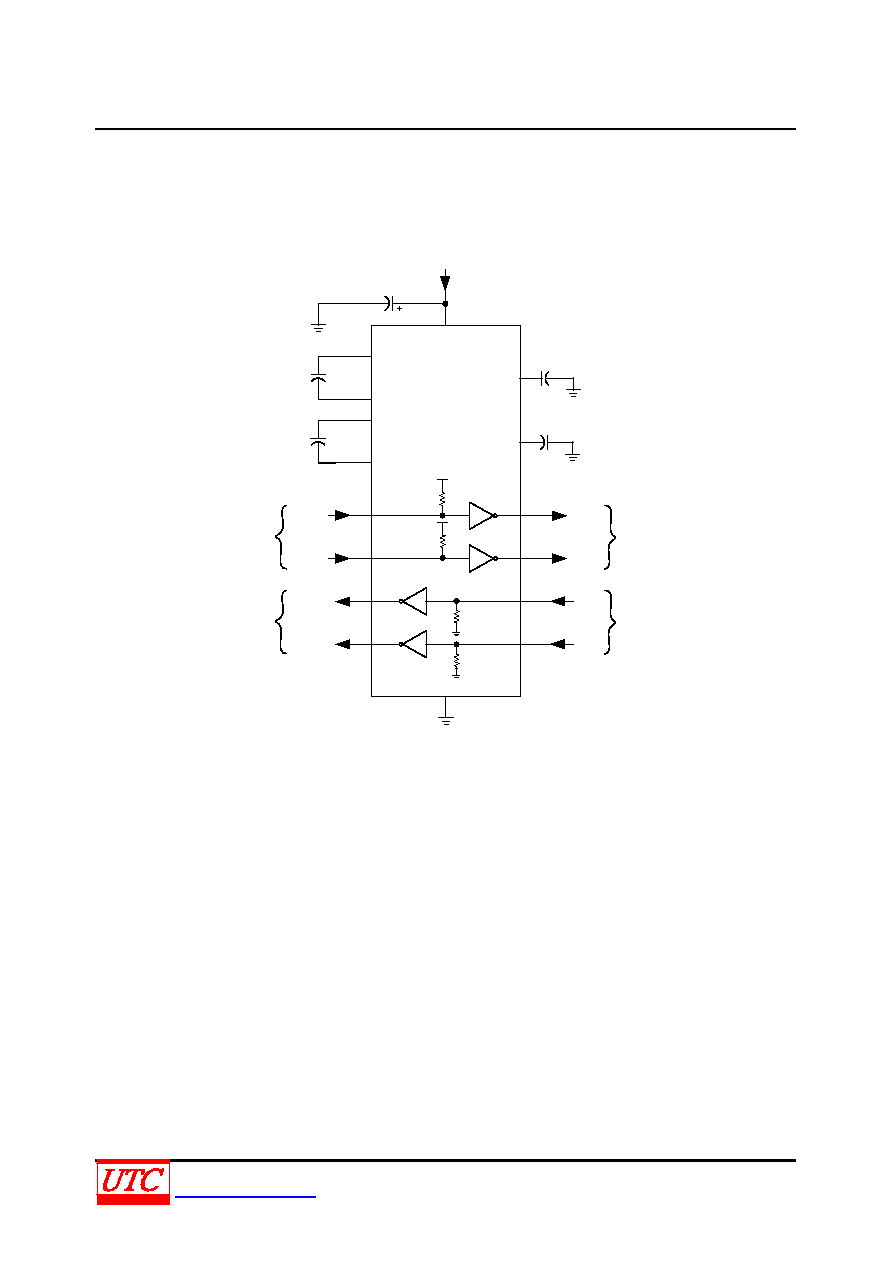

background image
UT232A
CMOS IC
UNISONICTECHNOLOGIESCO.,LTD
5 of 6
www.unisonic.com.tw
QW-R502-272.F
APPLICATION INFORMATION
To operate from a single +5.0V supply, the UTC UT232A include charge pump voltage converters which can
allow it. To generate the RS-232 output levels these converters convert the +5.0V input power to the ±9V needed.
The current drain due to charge pump operation is considerably reduced with this power supplied externally. The
UTC UT232A can operate over the commercial, industrial and military temperature ranges.
Connecting the capacitor to VCC (+5.0V) is recommended.
1
3
0.1µF +
4
5
0.1µF +
Voltage Doubler
VCC
16
Voltage Inverter
T1
14
T1OUT
T1IN
11
400kΩ
T2
7
T2OUT
T2IN
10
12
9
R1OUT
R2OUT
TTL/CMOS
INPUTS
TTL/CMOS
OUTPUTS
5kΩ
0.1µF
0.1µF
+
2
6
R1IN
R2IN
RS-232
INPUTS
RS-232
OUTPUTS
+5V INPUT
V+
V-
13
8
R2
R1
GND
+
C1+
C1-
C2+
C2-
15
400kΩ
5kΩ
