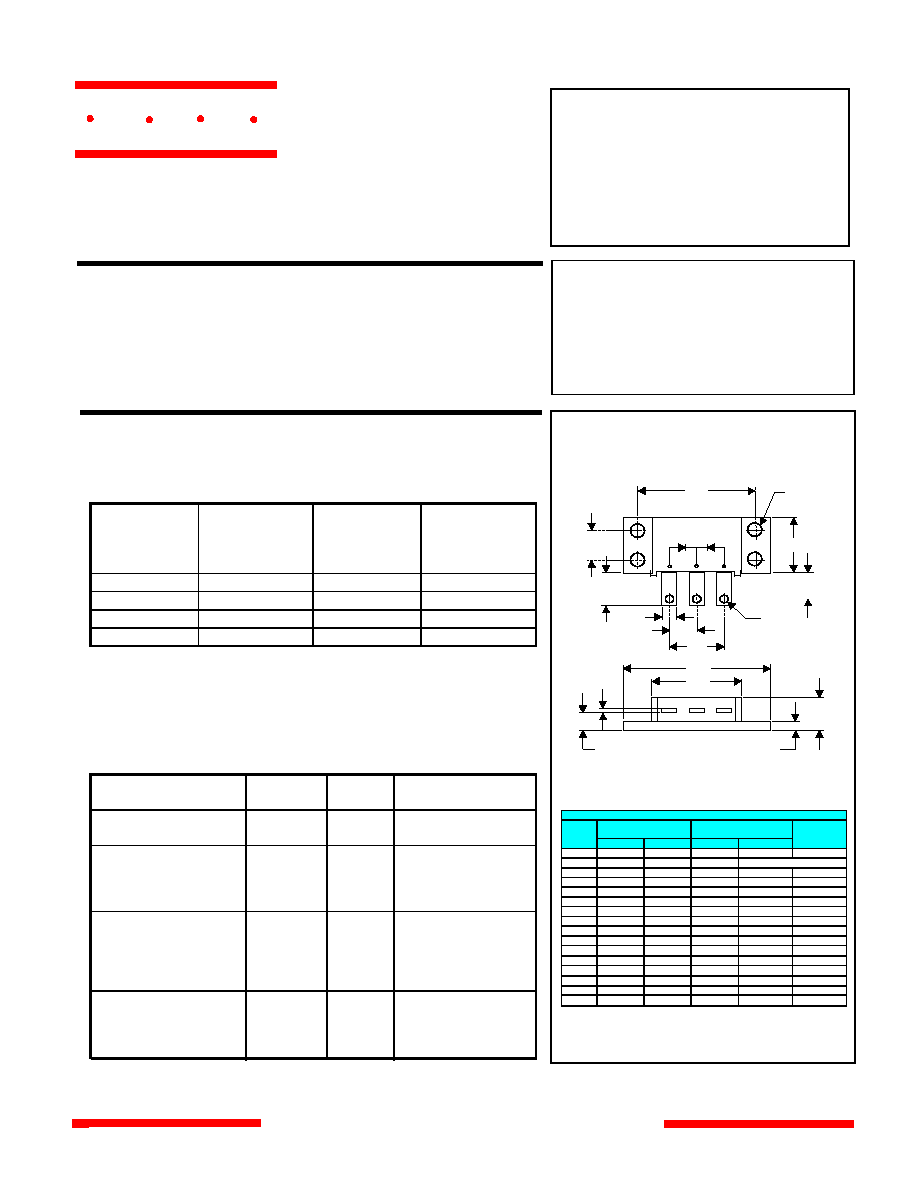

1 / 3 page

FST19035

THRU

FST19050

200 Amp

Rectifier

35 to 50 Volts

Features

•

Operating Temperature: -65

°C to +150°C

•

Storage Temperature: -65

°C to +150°C

MCC

Part Number

Maximum

Recurrent

Peak Reverse

Voltage

Maximum

RMS Voltage

Maximum DC

Blocking

Voltage

FST19035

35V

24.5V

35V

FST12040

40V

28V

40V

FST12045

45V

31.5V

45V

FST12050

50V

35V

50V

Electrical Characteristics @ 25°C Unless Otherwise Specified

Average Forward

Current

IF(AV)

200 A

TA =

126°C

Peak Forward Surge

Current

IFSM

1500A

8.3ms, half sine

Maximum

Instantaneous

Forward Voltage

VF

IFM = 100.0A;

TA = 25

°C

Maximum DC

Reverse Current At

Rated DC Blocking

Voltage

IR

4 mA

TA = 25

°C

Typical Junction

Capacitance

CJ

340pF

Measured at

1.0MHz, VR=4.0V

DIMENSIONS

INCH

ES

MM

DIM

MIN

MAX

MIN

MAX

NOTE

B

.330

.325

7.62

8.26

A

1.995

2.005

50.67

50.93

C

.495

.505

12.57

12.83

E

.990

1.010

25.12

26.65

F

1.490

1.510

37.85

38.35

G

1.500

1.525

38.10

38.70

H

.120

.130

3.05

3.30

J

------

.400

------

10.16

K

.240

.260

6.10

6.60

M

.330

.350

8.38

6.90

N

.175

.195

4.45

4.95

P

.035

.045

0.89

1.14

www.mccsemi.com

Schottky Barrier

Maximum Ratings

•

Metal of siliconrectifier, majonty carrier conducton

•

Guard ring for transient protection

•

Low power loss high efficiency

•

High surge capacity, High current capability

∅

POWERMOD

L

.490

.510

12.45

12.95

H

A

L

C

N

E

B

M

Q

R

D

F

G

J

P

K

Q

.445

.455

11.30

11.56

R

.890

.910

22.61

23.11

D

.182

.192

4.62

4.88

.70V
