LL204G-S14-R 데이터시트(PDF) 2 Page - Unisonic Technologies

부품명 LL204G-S14-R
상세설명  DUAL OUTPUT FLASHER
PDF  5 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  UTC [Unisonic Technologies]
홈페이지  http://www.utc-ic.com
Logo UTC - Unisonic Technologies

LL204G-S14-R 데이터시트(HTML) 2 Page - Unisonic Technologies

  LL204G-S14-R Datasheet HTML 1Page - Unisonic Technologies LL204G-S14-R Datasheet HTML 2Page - Unisonic Technologies LL204G-S14-R Datasheet HTML 3Page - Unisonic Technologies LL204G-S14-R Datasheet HTML 4Page - Unisonic Technologies LL204G-S14-R Datasheet HTML 5Page - Unisonic Technologies
Zoom Inzoom in Zoom Outzoom out
 2 / 5 page
background image
LL204
LINEAR INTEGRATED CIRCUIT
UNISONICTECHNOLOGIESCO.,LTD
2 of 5
www.unisonic.com.tw
QW-R121-012.B

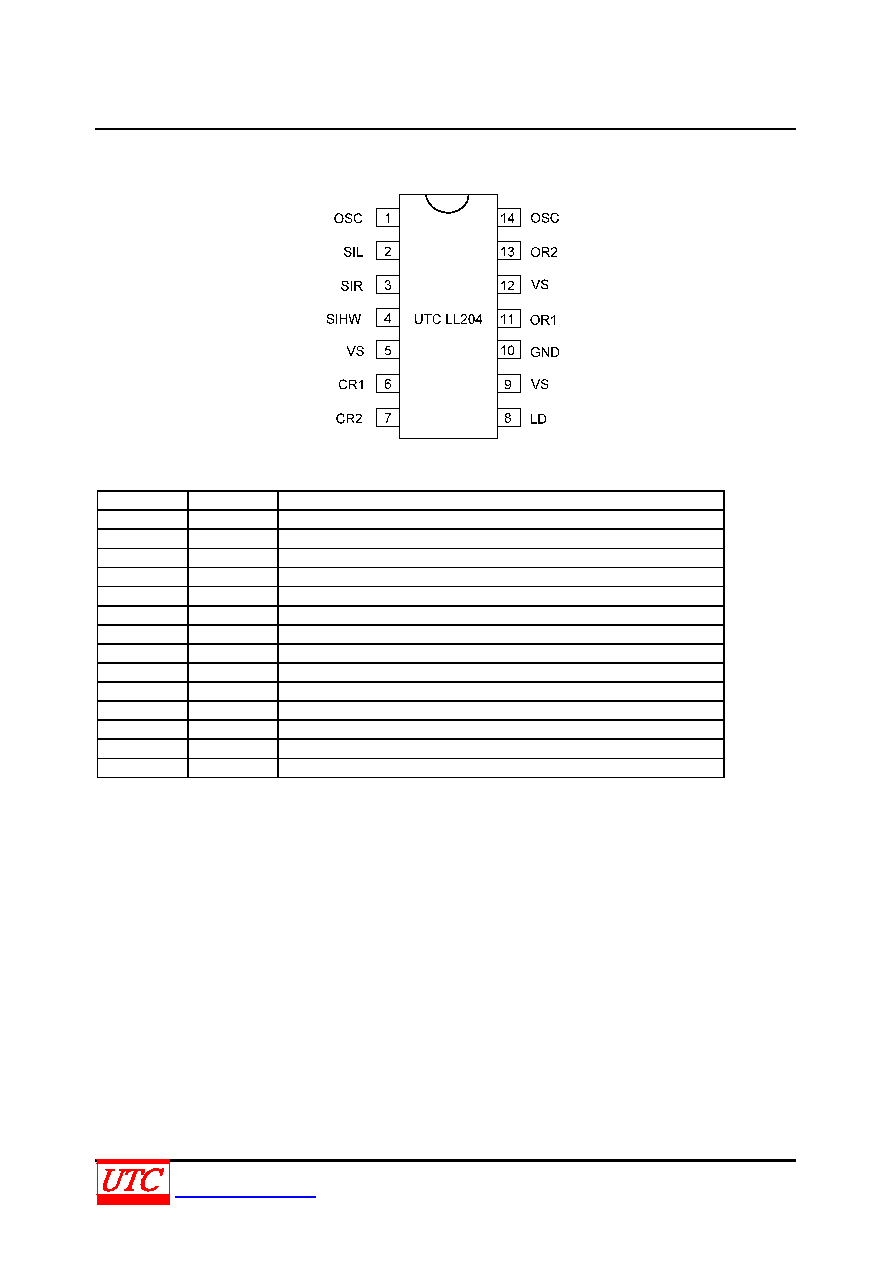

PIN CONFIGURATION
PIN DESCRIPTION
PIN No.
PIN NAME
FUNCTION
1
OSC
Oscillator
2
SIL
Start input left
3
SIR
Start input right
4
SIHW
Start input hazard warning
5
VS
VCC
6
CR1
Control input relay 1
7
CR2
Control input relay 2
8
LD
Lamp failure detection
9
VS
VCC
10
GND
Ground
11
OR1
Output relay 1
12
VS
VCC
13
OR2
Output relay 2
14
OSC
Oscillator
