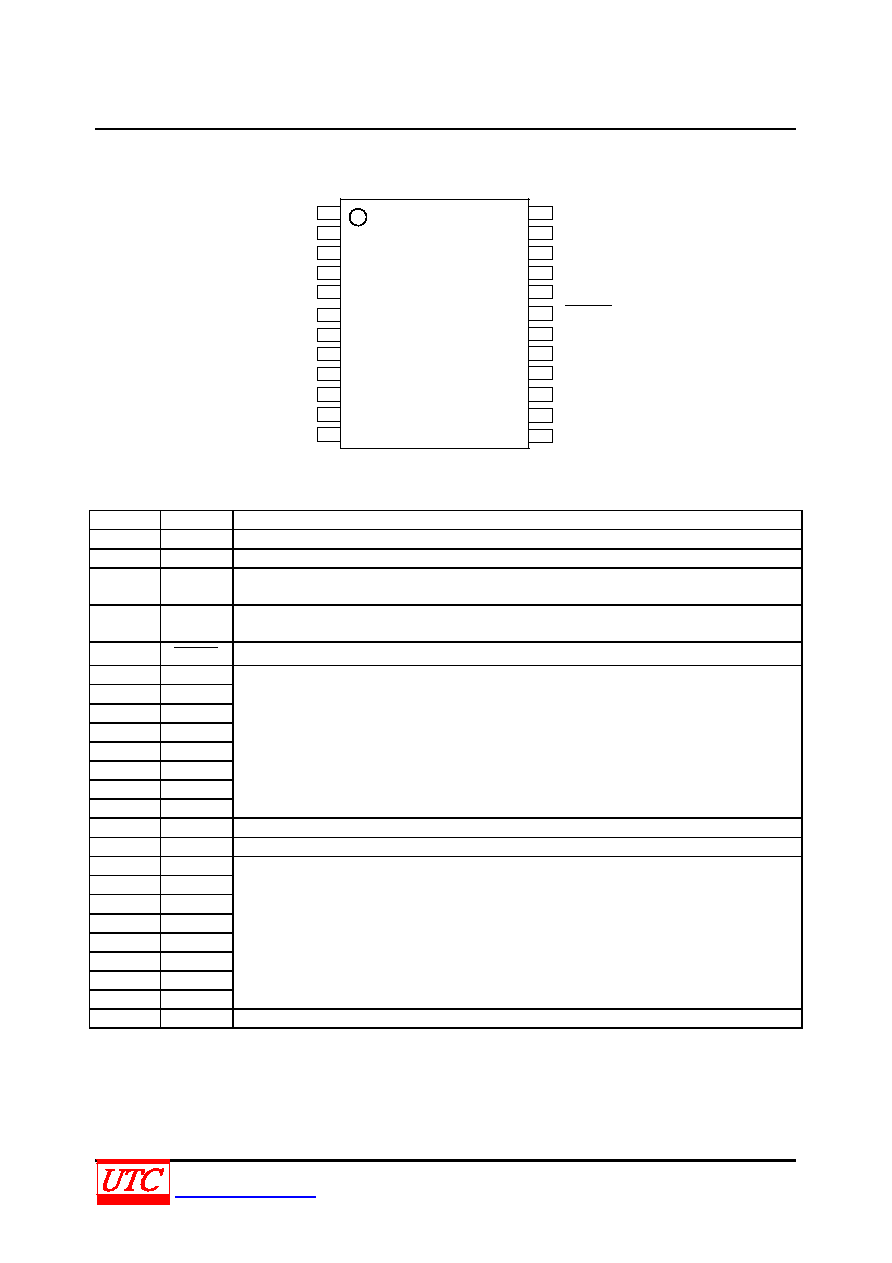

2 / 8 page ![]() M62364 CMOS IC UNISONICTECHNOLOGIESCO.,LTD 2 of 8 www.unisonic.com.tw QW-R502-008.D PIN CONFIGURATION (TOP VIEW) 1 12 11 10 9 8 7 6 5 4 3 2 13 14 15 16 17 18 19 20 21 22 23 24 VIN1 VIN2 VIN3 VIN4 VIN5 VIN6 VIN7 VIN8 VOUT1 VOUT2 VOUT3 VOUT4 VOUT5 VOUT6 VOUT7 VOUT8 VDA(REF) RESET GND DIN CLK LD VDD DOUT EXPLANATION OF TERMINALS PIN NO SYMBOL FUNCTION 8 DIN Serial data input 17 DOUT Serial data output 7 CLK Shift clock input. Input data of DIN are taken into the 12-bit shift register on a rising edge of the clock 6 LD A low state enables data loading to the 12-bit shift register. During a rising edge of LD, the data will be loaded to the output register 19 RESET Reset 8-bit latches 2 VOUT1 3 VOUT2 10 VOUT3 11 VOUT4 14 VOUT5 15 VOUT6 22 VOUT7 23 VOUT8 D/A Converter Output with8-bit resolution 5 VDD Power Supply 20 GND Ground 1 VIN1 4 VIN2 9 VIN3 12 VIN4 13 VIN5 16 VIN6 21 VIN7 24 VIN8 D/A Converter Input 18 VDA(REF) D/A Converter Reference Voltage Input |
|
|
