RCT02

CMOS IC

UNISONICTECHNOLOGIESCO.,LTD

4 of 11

www.unisonic.com.tw

QW-R502-002. D



W1

W1: 1KHz 50% Duty Cycle Typical

W2

W2:500Hz 75% Duty Cycle Typical



WORD FORMAT

Start Code: 4W2

Function Code:n ' W1

1Word



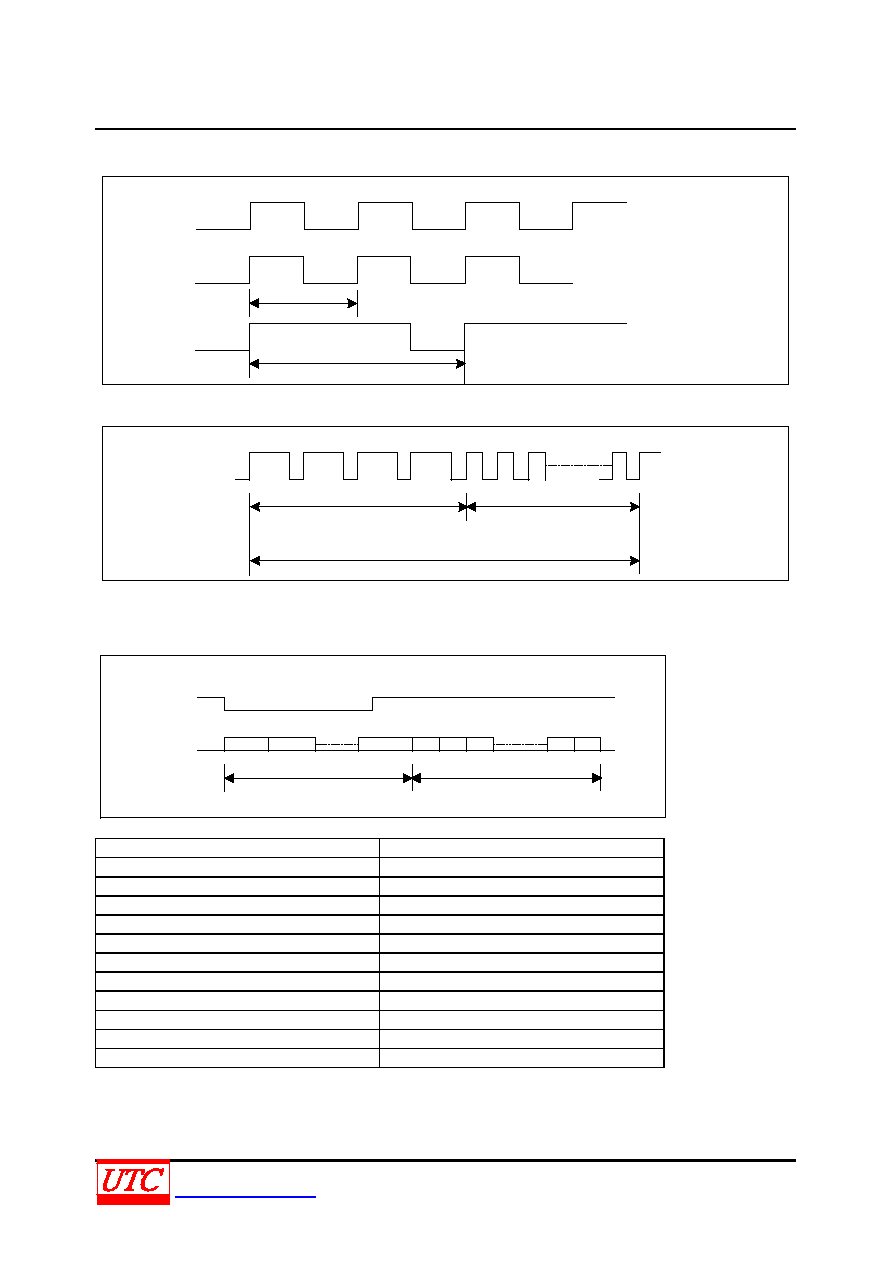

ENCODING TIMING

W2 W2 W2 W2 (n)’ W1 W2 W2 W2 W2 (n)’ W1 W2 W2 W2 W2 (n)’ W1 W2 W2 W2 W2 (n)’W1- - - - - - - -

Press any

buttons

Encoding

output

1st word 2nd word

Function

Codes

End Codes

last word

1

2

3

14 15

Number of Function Codes (n) W1

Function Buttons

4

(End Code)

10

Forward

16

Forward & Turbo

22

Turbo

28

(Turbo/Forward) & Left

34

(Turbo/Forward) & Right

40

Backward

46

Backward & Right

52

Backward & Left

58

Left

64

Right
