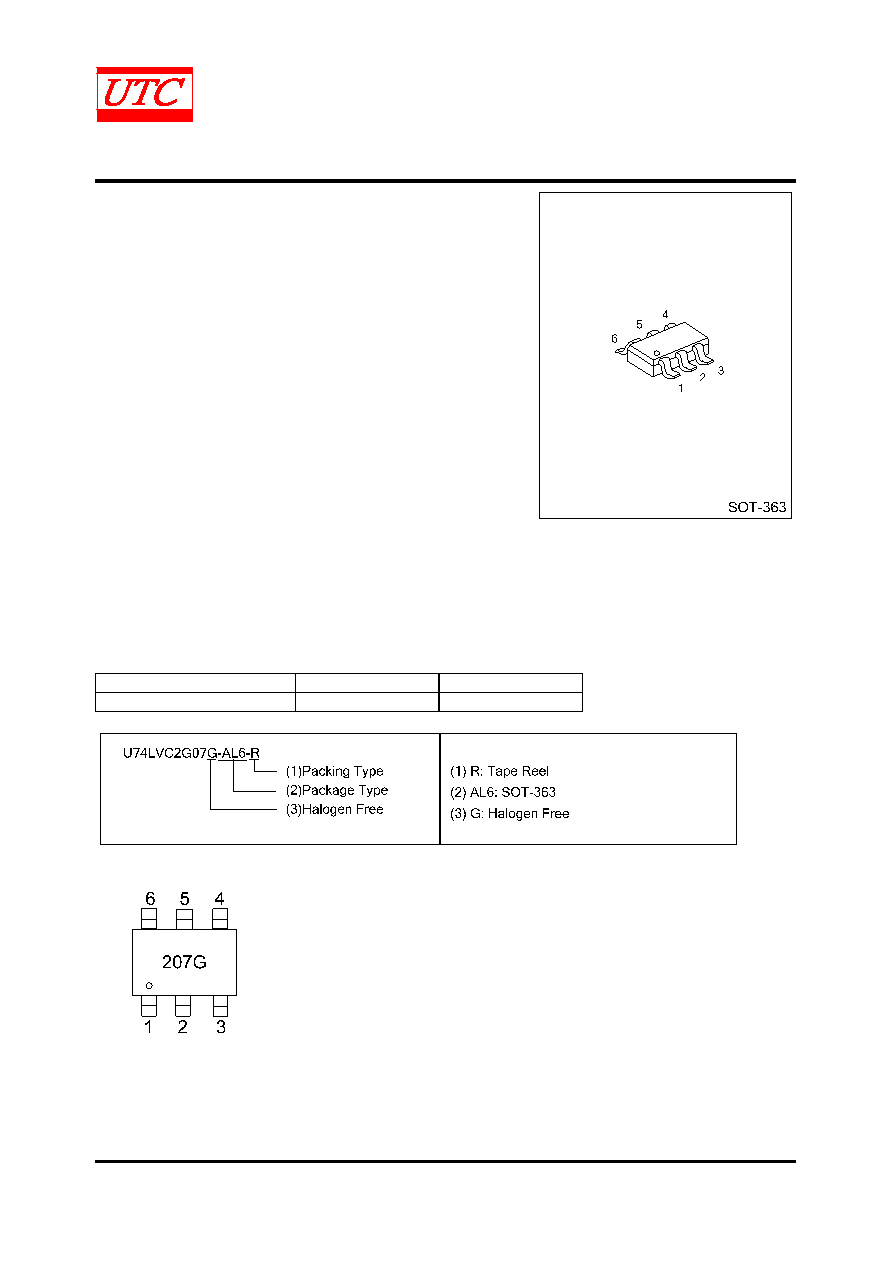

1 / 5 page

UNISONIC TECHNOLOGIES CO., LTD

U74LVC2G07

CMOS IC

www.unisonic.com.tw

1 of 5

QW-R502-402.A

BUFFERS WITH OPEN-DRAIN

OUTPUTS

DESCRIPTION

The U74LVC2G07 provides two non-inverting buffers with

open-drain output and can be connected to other open-drain

outputs to implement active-LOW wired-OR or active-HIGH

wired-AND functions.

This device has power-down protective circuit to preventing

device from destruction when it is powered down.

FEATURES

* Wide Supply Voltage Range From 1.65V To 5.5V.

* Inputs Can Be Driven From Either 3.3V or 5V Devices.

* Low Power Dissipation: Ptot =300mW(Max)

* -24mA Output Drive(VCC=3.0V)

* Power Down Protection

* Latch-Up Performance Exceeds 250mA.

* High Noise Immunity

* Direct Interface With TTL Levels

ORDERING INFORMATION

Ordering Number

Package

Packing

U74LVC2G07G-AL6-R

SOT-363

Tape Reel

MARKING
