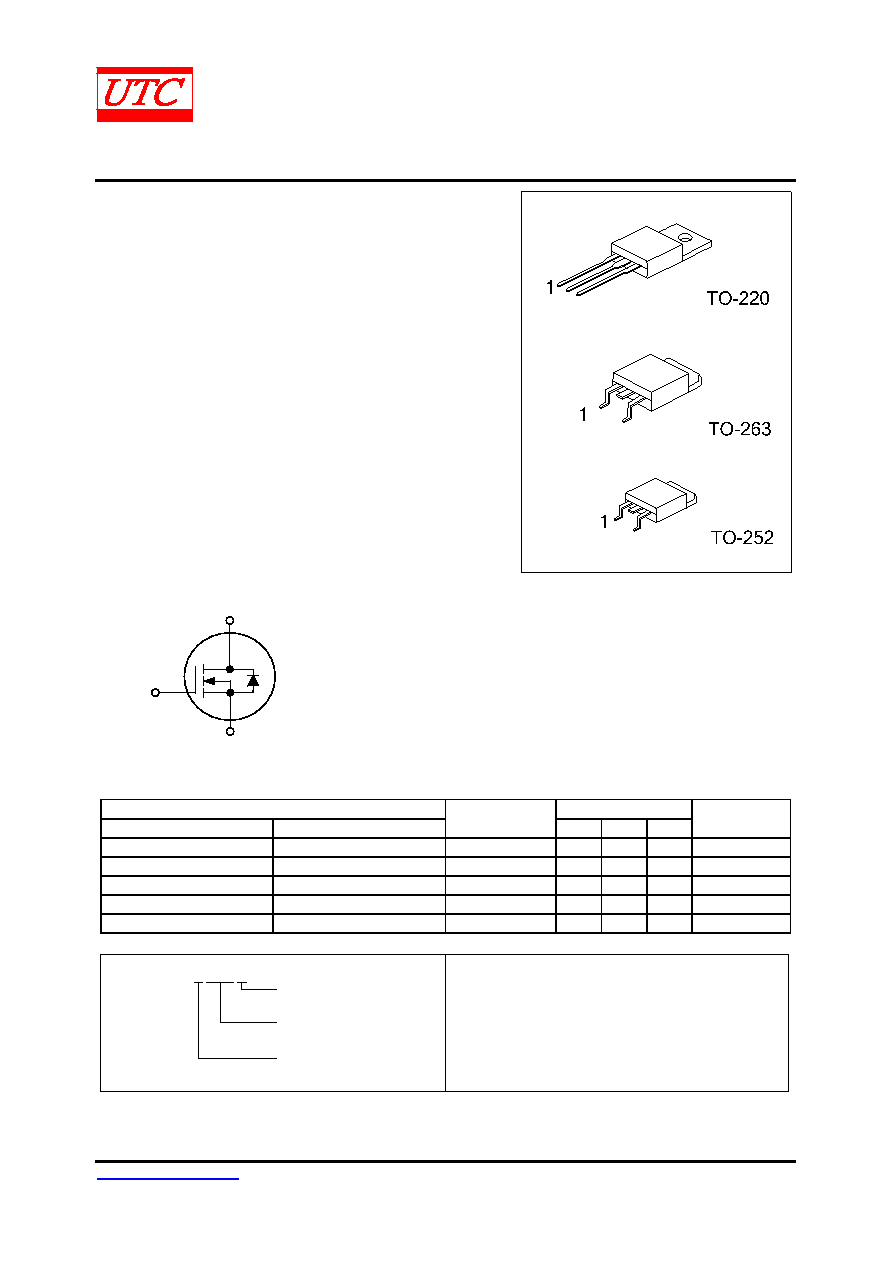

1 / 3 page

UNISONIC TECHNOLOGIES CO., LTD

UT85N03

Power MOSFET

www.unisonic.com.tw

1 of 3

QW-R502-292.D

85 Amps, 30 Volts

N-CHANNEL POWER MOSFET



DESCRIPTION

The UT85N03 uses advanced technology to provide

excellent RDS(ON), low gate charge and operation with low gate

voltages. This device is suited for all low voltage applications.



FEATURES

* RDS(ON)<6 mΩ @VGS=10V

* RDS(ON)<10mΩ @VGS=4.5V

* Low Reverse Transfer Capacitance ( CRSS = Typical: 380 pF )

* Fast Switching Capability

* Avalanche Energy Specified

* Improved dv/dt Capability, High Ruggedness



SYMBOL

1.Gate

3.Source

2.Drain



ORDERING INFORMATION

Ordering Number

Package

Pin Assignment

Packing

Lead Free

Halogen Free

1

2

3

UT85N03L-TA3-T

UT85N03G-TA3-T

TO-220

G

D

S

Tube

UT85N03L-TN3-T

UT85N03G-TN3-T

TO-252

G

D

S

Tube

UT85N03L-TN3-R

UT85N03G-TN3-R

TO-252

G

D

S

Tape Reel

UT85N03L-TQ2-T

UT85N03G-TQ2-T

TO-263

G

D

S

Tube

UT85N03L-TQ2-R

UT85N03G-TQ2-R

TO-263

G

D

S

Tape Reel

UT85N03L-TN3-T

(1)Packing Type

(2)Package Type

(3)Lead Free

(1) T: Tube, R: Tape Reel

(2) TA3: TO-220, TN3: TO-252, TQ2: TO-263

(3) L: Lead Free, G: Halogen Free
