2A, 600V N-CHANNEL

POWER MOSFET



DESCRIPTION

The UTC 2N60K-TA is a high voltage power MOSFET and is

designed to have better characteristics, such as fast switching

time, low gate charge, low on-state resistance and have a high

rugged avalanche characteristics. This power MOSFET is

usually used at high speed switching applications in power

supplies, PWM motor controls, high efficient DC to DC

converters and bridge circuits.



FEATURES

* Fast switching capability

* Avalanche energy specified

* Improved dv/dt capability, high ruggedness



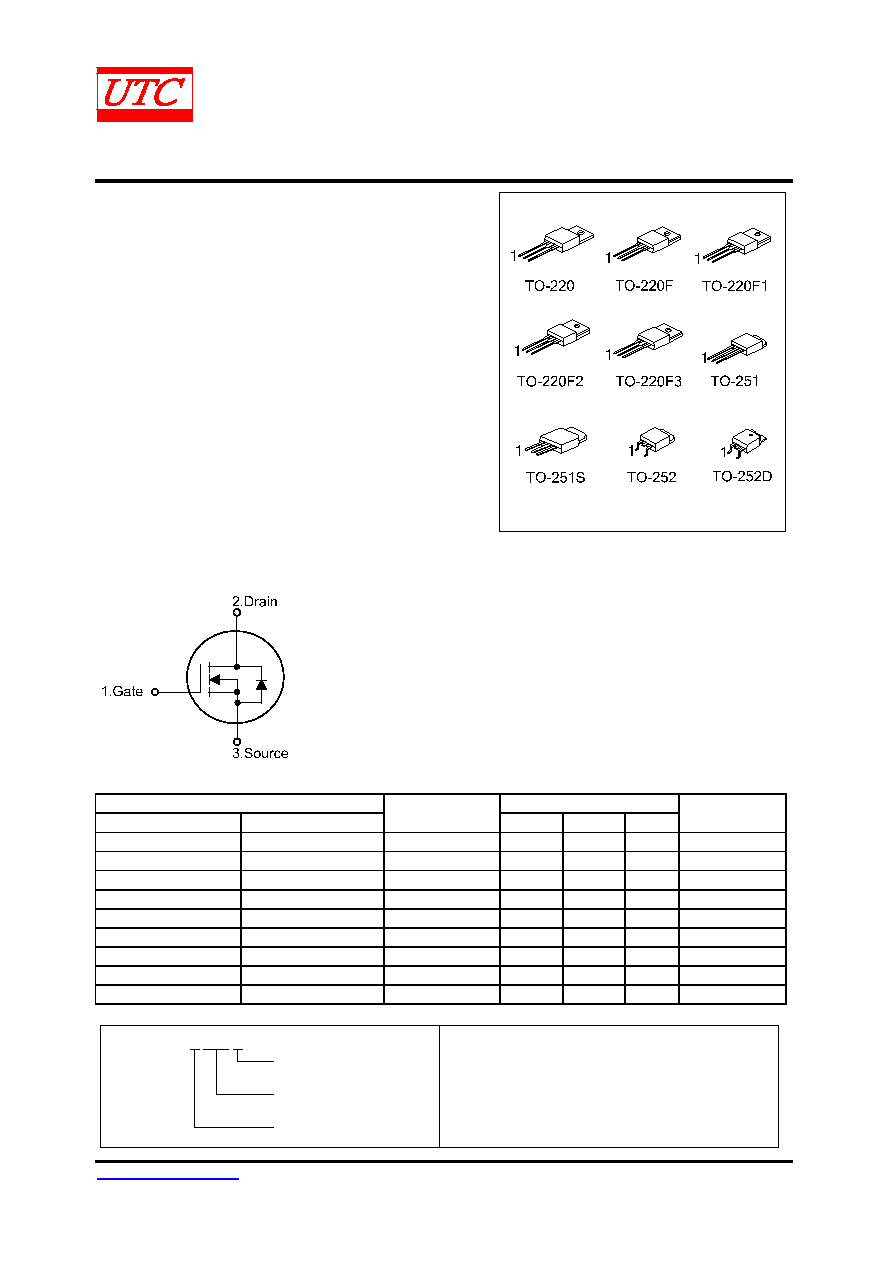

SYMBOL



ORDERING INFORMATION

Ordering Number

Pin Assignment

Lead Free

Halogen Free

Package

1

2

3

Packing

2N60KL-TA3-T

2N60KG-TA3-T

TO-220

G

D

S

Tube

2N60KL-TF3-T

2N60KG-TF3-T

TO-220F

G

D

S

Tube

2N60KL-TF1-T

2N60KG-TF1-T

TO-220F1

G

D

S

Tube

2N60KL-TF2-T

2N60KG-TF2-T

TO-220F2

G

D

S

Tube

2N60KL-TF3T-T

2N60KG-TF3T-T

TO-220F3

G

D

S

Tube

2N60KL-TM3-T

2N60KG-TM3-T

TO-251

G

D

S

Tube

2N60KL-TMS-T

2N60KG-TMS-T

TO-251S

G

D

S

Tube

2N60KL-TN3-R

2N60KG-TN3-R

TO-252

G

D

S

Tape Reel

2N60KL-TND-R

2N60KG-TND-R

TO-252D

G

D

S

Tape Reel

Note: Pin Assignment: G: Gate

D: Drain

S: Source

(1) T: Tube, R: Tape Reel

(2) TA3: TO-220, TF3: TO-220F, TF1: TO-220F1,

TF2: TO-220F2, TF3T: TO-220F3, TM3: TO-251

TMS: TO-251S, TN3: TO-252, TND: TO-252D

(3) L: Lead Free, G: Halogen Free and Lead Free

2N60KL-TA3-T

(1)Packing Type

(2)Package Type

(3)Green Package
