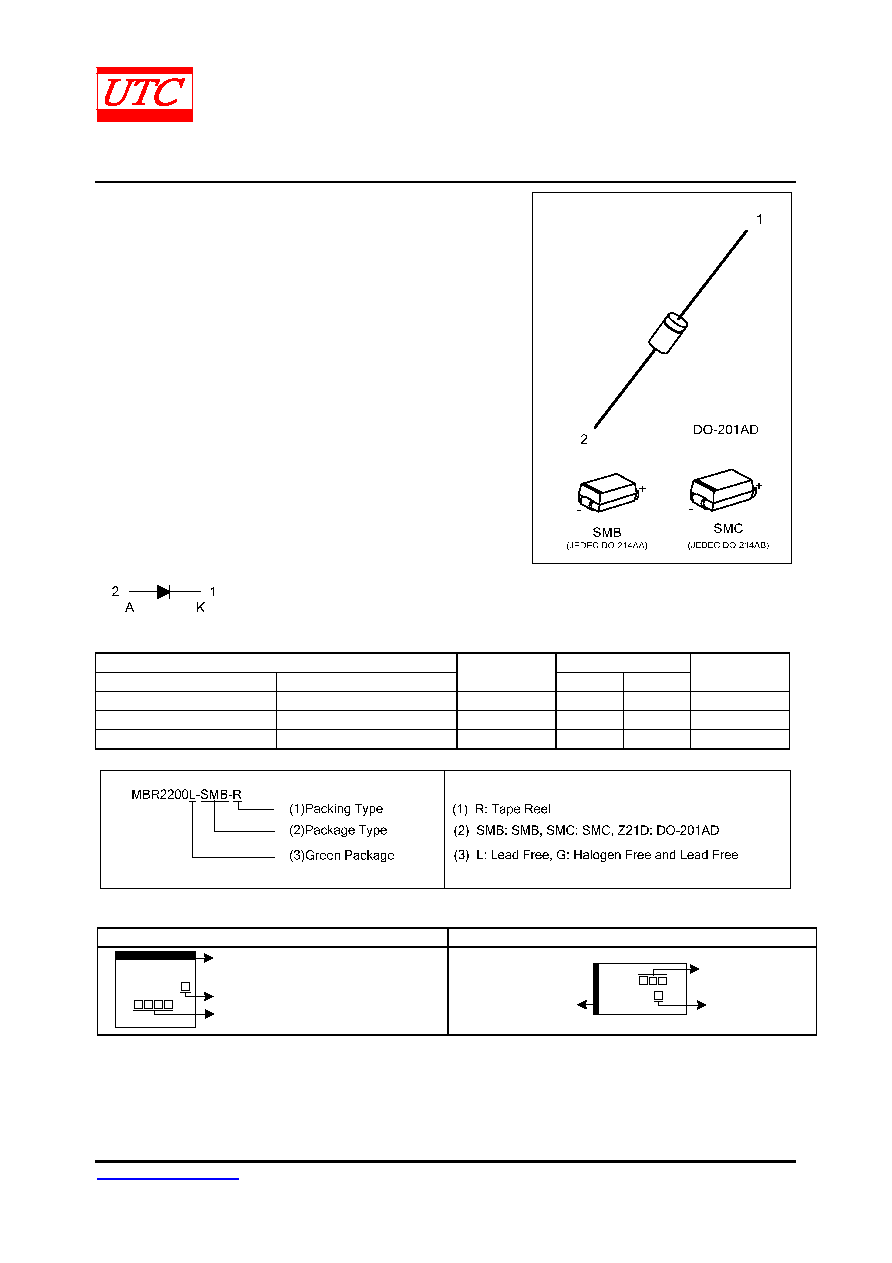

UNISONIC TECHNOLOGIES CO., LTD

MBR2200

Preliminary

DIODE

www.unisonic.com.tw

1 of 3

Copyright © 2015 Unisonic Technologies Co., Ltd

QW-R202-019.b

SCHOTTKY BARRIER

RECTIFIER



DESCRIPTION

The UTC MBR2200 is a schottky barrier rectifier, it uses UTC’s

advanced technology to provide customers with low forward voltage

drop, high current capability and high efficiency, etc.

The UTC MBR2200 is suitable for free wheeling, high frequency

inverters, polarity protection application.



FEATURES

* Low forward voltage drop

* High efficiency

* High surge capability



SYMBOL



ORDERING INFORMATION

Ordering Number

Pin Assignment

Lead Free

Halogen Free

Package

1

2

Packing

MBR2200L-SMB-R

MBR2200G-SMB-R

SMB

K

A

Tape Reel

MBR2200L-SMC-R

MBR2200G-SMC-R

SMC

K

A

Tape Reel

MBR2200L-Z21D-B

MBR2200G-Z21D-B

DO-201AD

K

A

Tape Box

Note: Pin Assignment: A: Anode

K: Cathode



MARKING

DO-201AD

SMB / SMC

MBR2200

Date Code

L: Lead Free

G: Halogen Free

Cathode Band for uni-directional Only

Date Code

Cathode Band for

uni-directional Only

UTC

R2200

L: Lead Free

G: Halogen Free
