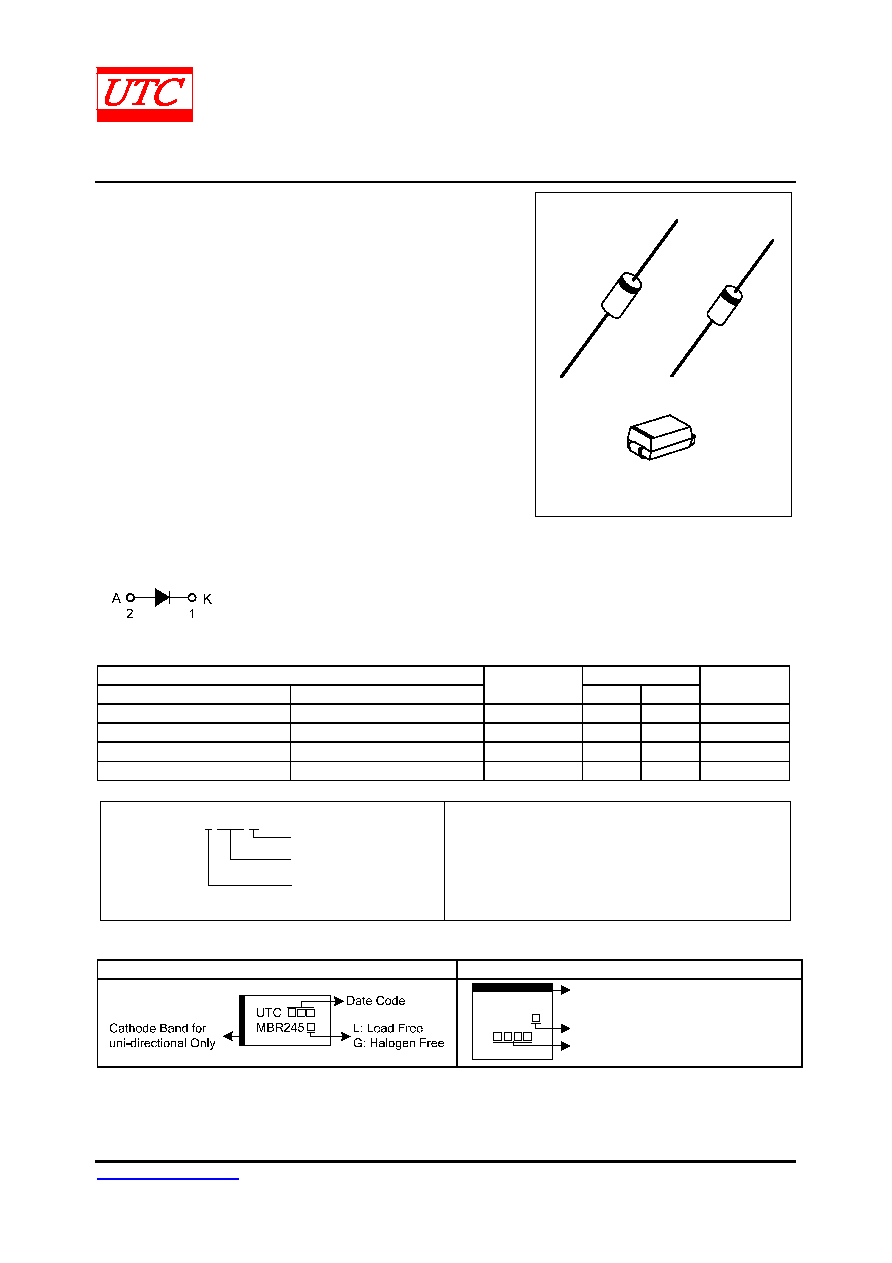

UNISONIC TECHNOLOGIES CO., LTD

MBR245

Preliminary

DIODE

www.unisonic.com.tw

1 of 3

Copyright © 2015 Unisonic Technologies Co., Ltd

QW-R601-245.e

2.0A SCHOTTKY BARRIER

RECTIFIER



DESCRIPTION

The UTC MBR245 is a 2.0A schottky barrier rectifier, it uses

UTC’s advanced technology to provide the customers with high

surge capability, high efficiency, high current capability, low power

loss and low forward voltage drop, etc.

The UTC MBR245 is suitable for free wheeling and polarity

protection, etc.

* Low Reverse Current

* Low Stored Charge, Majority Carrier Conduction

* Low Power Loss/High Efficiency

* Highly Stable Oxide Passivated Junction



SYMBOL

DO-15

DO-41

SMA

(JEDEC DO-214AC)

+

-



ORDERING INFORMATION

Ordering Number

Pin Assignment

Lead Free

Halogen Free

Package

1

2

Packing

MBR245L-SMA-R

MBR245G-SMA-R

SMA

K

A

Tape Reel

MBR245L-Z15-B

MBR245G-Z15-B

DO-15

K

A

Tape Box

MBR245L-Z41-R

MBR245G-Z41-R

DO-41

K

A

Tape Reel

MBR245L-Z41-B

MBR245G-Z41-B

DO-41

K

A

Tape Box

Note: Pin Assignment: A: Anode

K: Cathode

(1) R: Tape Reel, B: Tape Box

(2) SMA: SMA, Z15: DO-15, Z41: DO-41

(3) L: Lead Free, G: Halogen Free and Lead Free

MBR245L-SMA-R

(1)Packing Type

(2)Package Type

(3)Green Package



MARKING

SMA

DO-15 / DO-41

MBR245

Date Code

L: Lead Free

G: Halogen Free

Cathode Band for uni-directional Only
