RS1ML-SMA-R 데이터시트(PDF) 3 Page - Unisonic Technologies

부품명 RS1ML-SMA-R
상세설명  SURFACE MOUNT FAST RECOVERY RECTIFIER
PDF  4 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  UTC [Unisonic Technologies]
홈페이지  http://www.utc-ic.com
Logo UTC - Unisonic Technologies

RS1ML-SMA-R 데이터시트(HTML) 3 Page - Unisonic Technologies

  RS1ML-SMA-R Datasheet HTML 1Page - Unisonic Technologies RS1ML-SMA-R Datasheet HTML 2Page - Unisonic Technologies RS1ML-SMA-R Datasheet HTML 3Page - Unisonic Technologies RS1ML-SMA-R Datasheet HTML 4Page - Unisonic Technologies
Zoom Inzoom in Zoom Outzoom out
 3 / 4 page
background image
RS1M
DIODE
UNISONICTECHNOLOGIESCO.,LTD
3 of 4
www.unisonic.com.tw
QW-R601-210.B

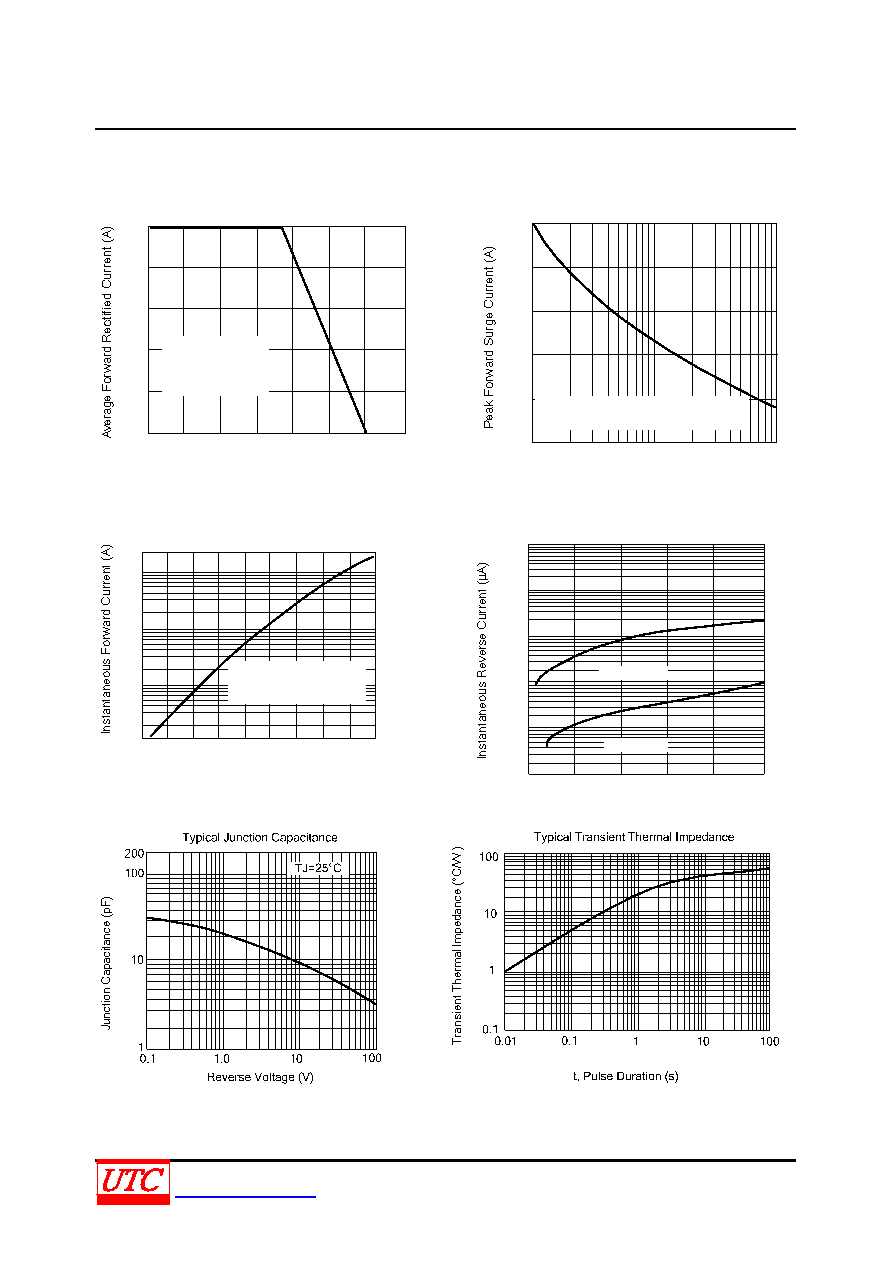

TYPICAL CHARACTERISTICS
Forward Current Derating Curve
1.0
0.8
0.6
0.4
0
0
25
50
75
100 125 150
175
Single Phase
Half Wave 60Hz
Resistive or
inductive Load
Ambient Temperature (°C)
Maximum Non-Repetitive Peak Forward
Surge Current
30
25
20
15
10
5.0
1
10
100
Number of Cycles at 60Hz
8.3ms SINGLE HALF SINE-WAVE
(JEDEC Method)
Typical Instantaneous Forward Characteristics
20
10
1
0.1
0.01
0.6
0.8
1.0
1.2
1.4 1.5
Instantaneous Forward Voltage (V)
TJ=25°C
PULSE WIDTH=300s
1%DUTY CYCLE
Typical Reverse Characteristics
1,000
100
10
1
0.1
0.01020
40
60
80
100
Percent of Peak Reverse Voltage (%)
TJ=25°C
TJ=100°C
