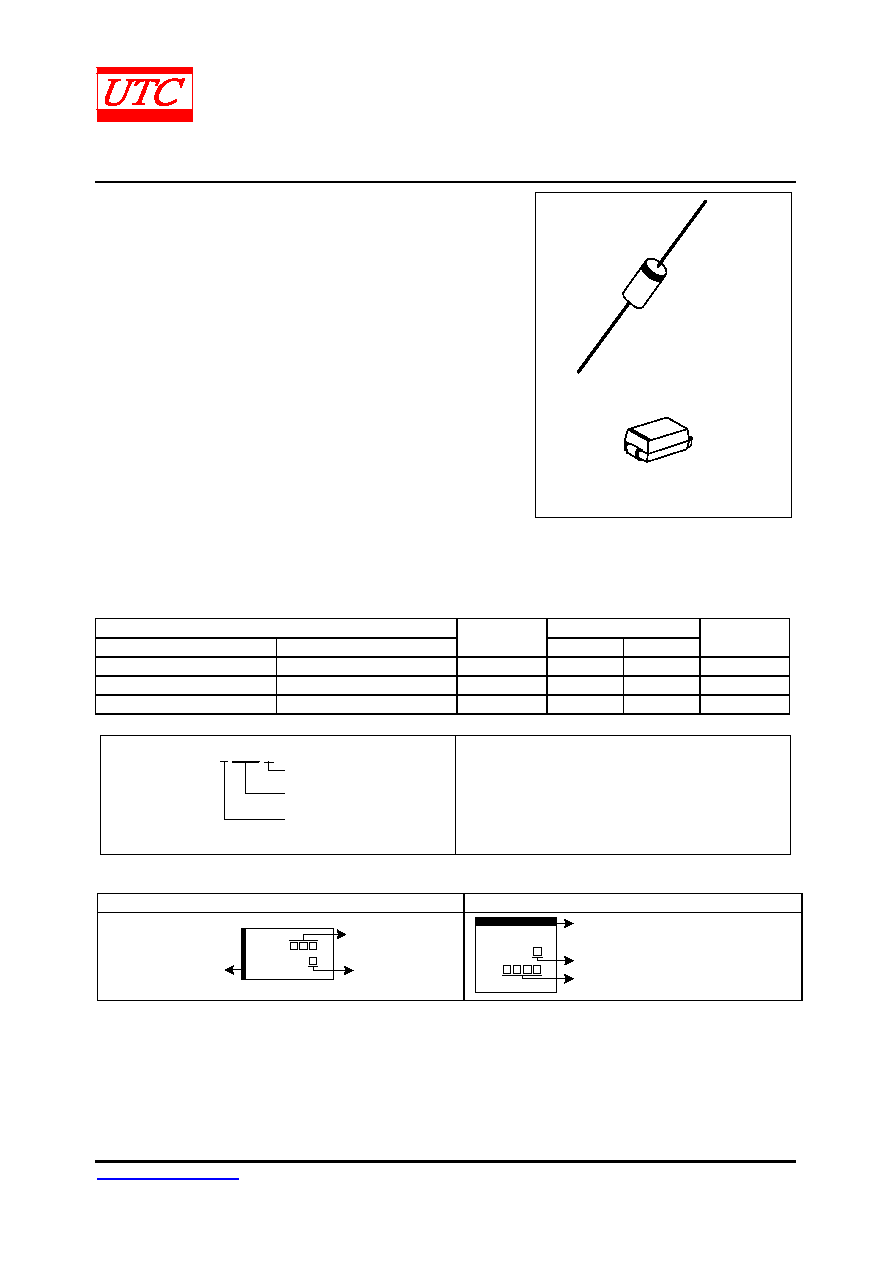

UNISONIC TECHNOLOGIES CO., LTD

SB130

Preliminary

DIODE

www.unisonic.com.tw

1 of 3

Copyright © 2015 Unisonic Technologies Co., Ltd

QW-R601-276.b

1.0A SCHOTTKY BARRIER

RECTIFIER



DESCRIPTION

The UTC SB130 is a 1.0A schottky barrier rectifier, it uses UTC’s

advanced technology to provide customers with low forward voltage

drop, high current capability and high efficiency, etc.

The UTC SB130 is suitable for use in free wheeling, high frequency

inverters, low voltage and polarity protection applications.



FEATURES

* Low forward voltage drop

* High current capability

* High surge capability

* Low power loss

* High efficiency

DO-41

SMA

(JEDEC DO-214AC)

+

-



ORDERING INFORMATION

Ordering Number

Pin Assignment

Lead Free

Halogen Free

Package

1

2

Packing

SB130L-SMA-R

SB130G-SMA-R

SMA

K

A

Tape Reel

SB130L-Z41-B

SB130G-Z41-B

DO-41

K

A

Tape Box

SB130L-Z41-R

SB130G-Z41-R

DO-41

K

A

Tape Reel

Note: Pin Assignment: A: Anode

K: Cathode

(1) R: Tape Reel, B: Tape Box

(2) SMA: SMA, Z41: DO-41

(3) L: Lead Free, G: Halogen Free and Lead Free

SB130L-SMA-R

(1)Packing Type

(2)Package Type

(3)Green Package



MARKING

SMA

DO-41

Date Code

Cathode Band for

uni-directional Only

UTC

SB130

L: Lead Free

G: Halogen Free

SB130

Date Code

L: Lead Free

G: Halogen Free

Cathode Band for uni-directional Only
