TPS61253 데이터시트(PDF) 21 Page - Texas Instruments

부품명 TPS61253
상세설명  TPS6125x 3.5-MHz High Efficiency Step-Up Converter In Chip Scale Packaging
PDF  33 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  TI [Texas Instruments]
홈페이지  http://www.ti.com
Logo TI - Texas Instruments

TPS61253 데이터시트(HTML) 21 Page - Texas Instruments

Back Button TPS61253_15 Datasheet HTML 17Page - Texas Instruments TPS61253_15 Datasheet HTML 18Page - Texas Instruments TPS61253_15 Datasheet HTML 19Page - Texas Instruments TPS61253_15 Datasheet HTML 20Page - Texas Instruments TPS61253_15 Datasheet HTML 21Page - Texas Instruments TPS61253_15 Datasheet HTML 22Page - Texas Instruments TPS61253_15 Datasheet HTML 23Page - Texas Instruments TPS61253_15 Datasheet HTML 24Page - Texas Instruments TPS61253_15 Datasheet HTML 25Page - Texas Instruments Next Button
Zoom Inzoom in Zoom Outzoom out
 21 / 33 page
background image
V
= 5.0 V
O
3.3V to 3.9V Line Step
50mA to 500mA
Load Step
50 to 500 mA Load Step
V = 3.6 V,
V
= 5.0 V
I
O
V = 3.6 V,
V
= 5.0 V,
I
I
O
O = 40 mA
V = 3.6 V,
V
= 5.0 V,
I
I
O
O = 200 mA
TPS61253, TPS61254, TPS61256, TPS61258, TPS61259
www.ti.com
SLVSAG8E – SEPTEMBER 2011 – REVISED MARCH 2015

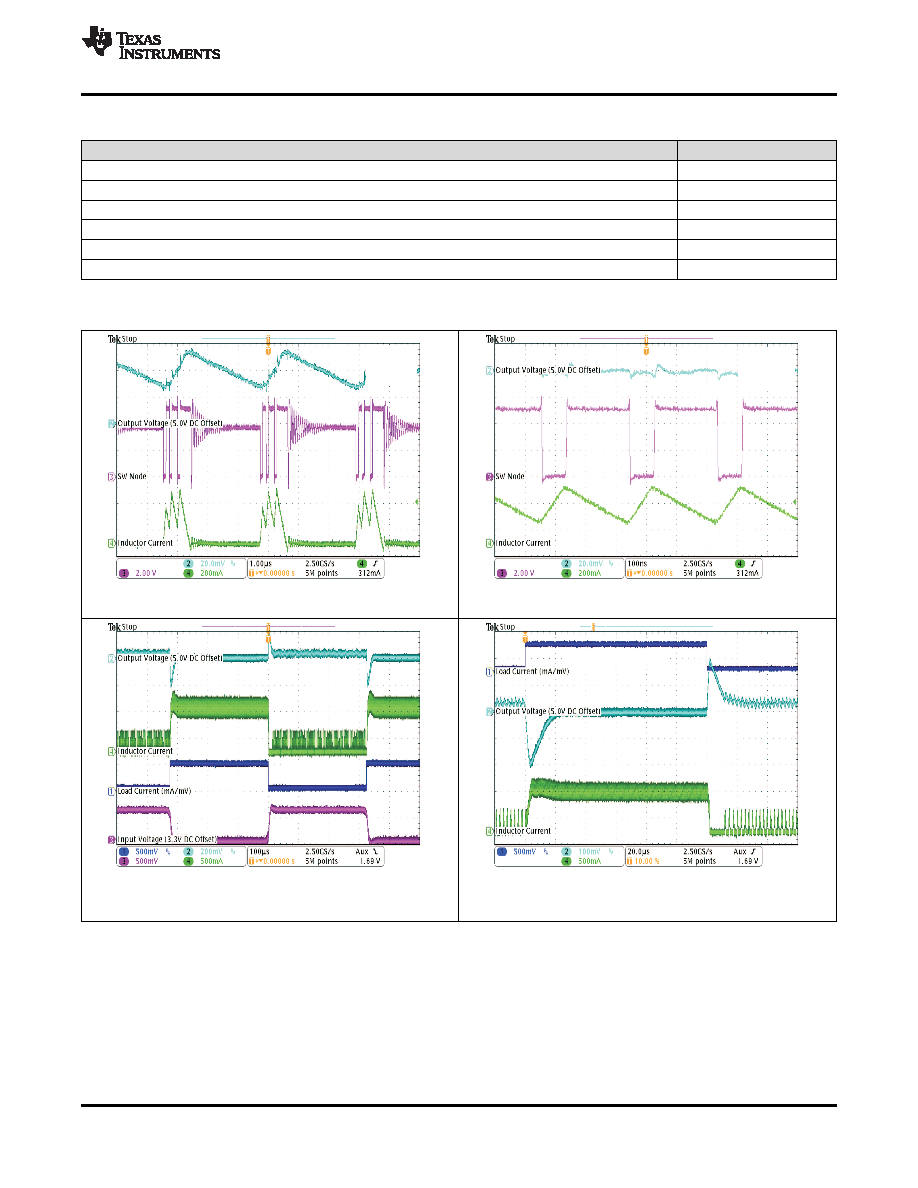

10.2.3 Application Curves
FIGURE
PFM operation
Figure 29
PWM operation
Figure 30
Combined line/load transient response
Figure 31
Load transient response
Figure 32, Figure 34
AC load transient response
Figure 33, Figure 35
Start-up
Figure 36, Figure 37
spacing
Figure 29. Power-Save Mode Operation
Figure 30. PWM Operation
Figure 31. Combined Line/Load Transient Response
Figure 32. Load Transient Response in PFM/PWM
Operation
Copyright © 2011–2015, Texas Instruments Incorporated
Submit Documentation Feedback
21
Product Folder Links: TPS61253 TPS61254 TPS61256 TPS61258 TPS61259
