A25LS512A Series
(November, 2014, Version 1.1)
7
AMIC Technology Corp.
Hold Condition
The Hold (
HOLD ) signal is used to pause any serial
communications with the device without resetting the clocking
sequence. However, taking this signal Low does not
terminate any Write Status Register, Program or Erase cycle
that is currently in progress.
To enter the Hold condition, the device must be selected, with
Chip Select (
S ) Low.
The Hold condition starts on the falling edge of the Hold
(
HOLD ) signal, provided that this coincides with Serial Clock
(C) being Low (as shown in Figure 3.).
The Hold condition ends on the rising edge of the Hold
(
HOLD ) signal, provided that this coincides with Serial Clock
(C) being Low.
If the falling edge does not coincide with Serial Clock (C)
being Low, the Hold condition starts after Serial Clock (C)
next goes Low. Similarly, if the rising edge does not coincide
with Serial Clock (C) being Low, the Hold condition ends after
Serial Clock (C) next goes Low. This is shown in Figure 3.
During the Hold condition, the Serial Data Output (DO) is high
impedance, and Serial Data Input (DIO) and Serial Clock (C)
are Don’t Care.
Normally, the device is kept selected, with Chip Select (
S )
driven Low, for the whole duration of the Hold condition. This
is to ensure that the state of the internal logic remains
unchanged from the moment of entering the Hold condition.
If Chip Select (
S ) goes High while the device is in the Hold
condition, this has the effect of resetting the internal logic of
the device. To restart communication with the device, it is
necessary to drive Hold (
HOLD ) High, and then to drive
Chip Select (
S ) Low. This prevents the device from going
back to the Hold condition.

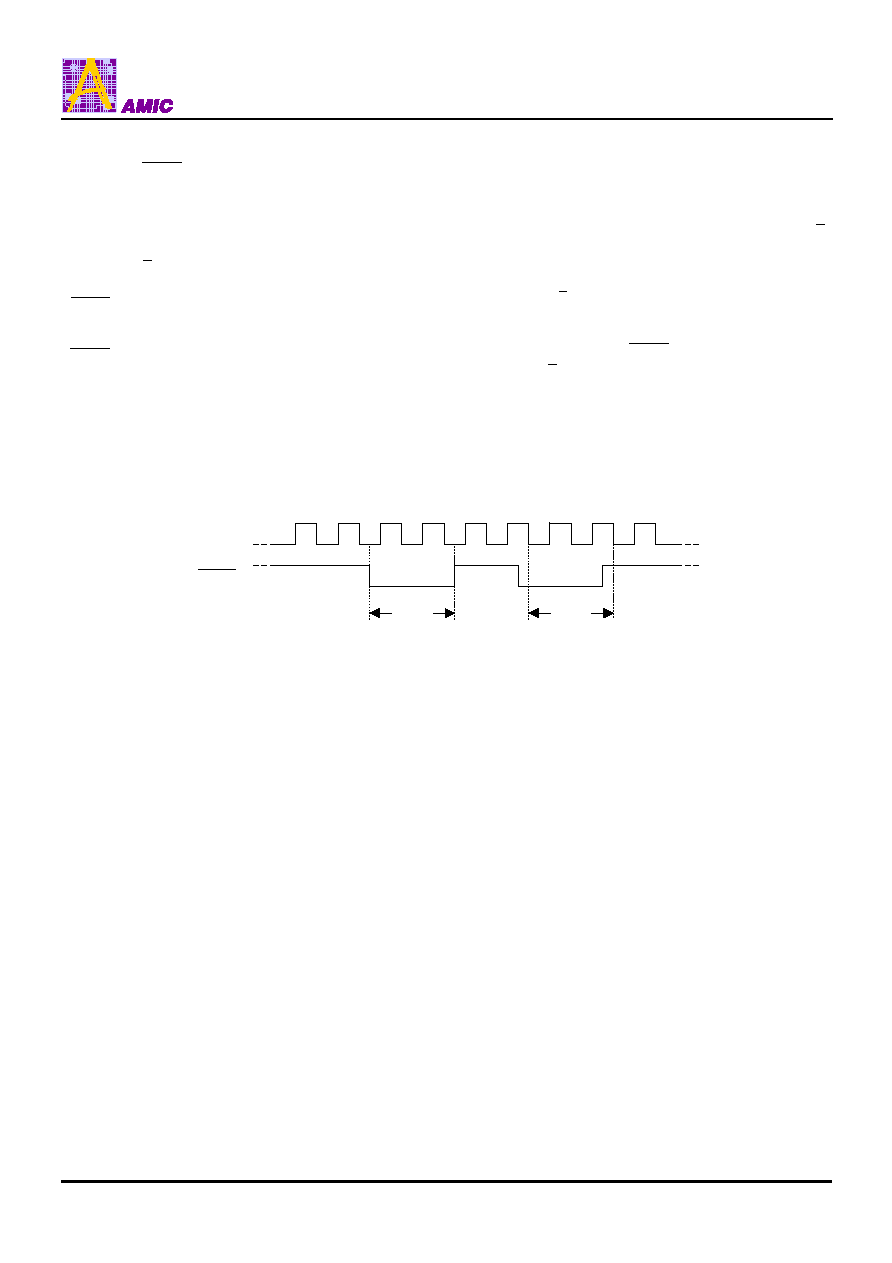

Figure 3. Hold Condition Activation
Hold
Condition
(standard use)
HOLD
C
Hold
Condition
(non-standard use)
