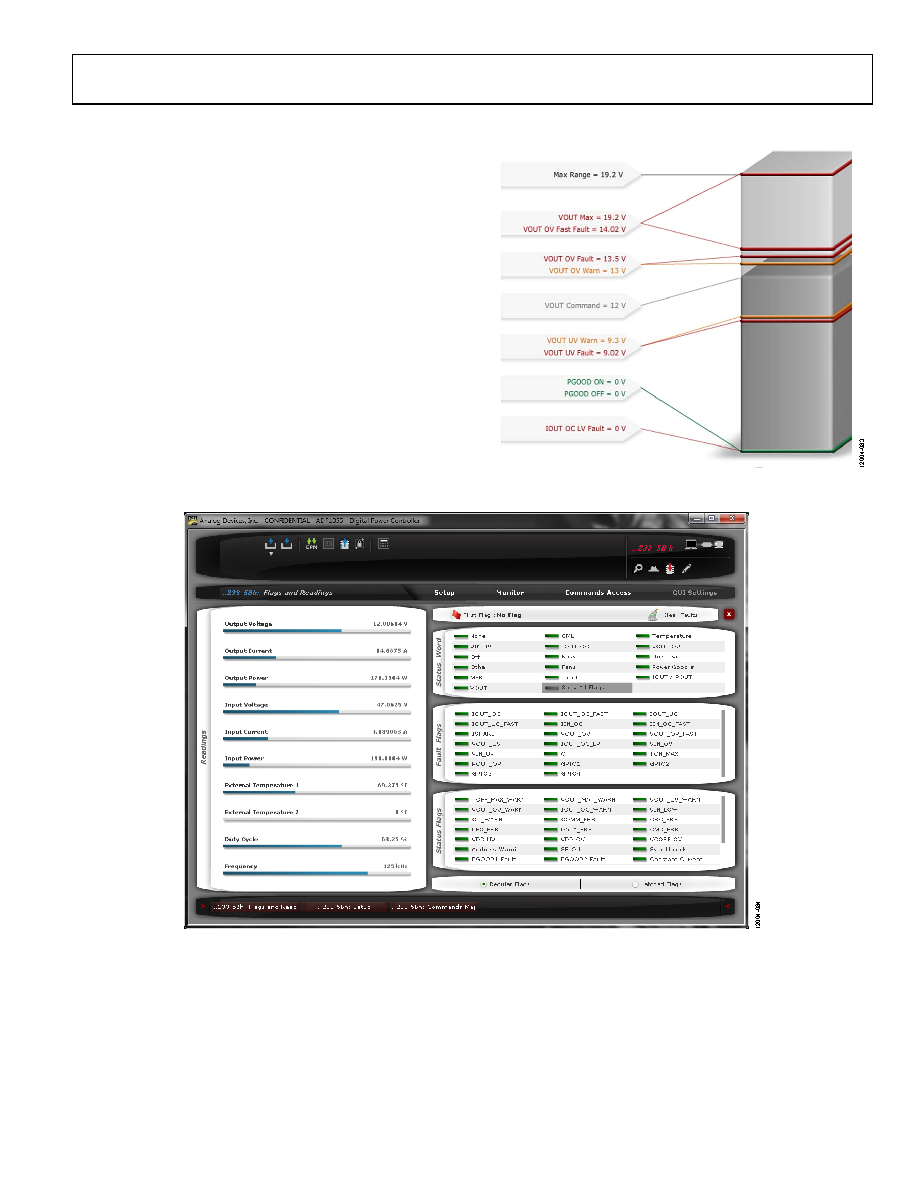

57 / 140 page  Data Sheet ADP1055 Rev. A | Page 57 of 140 SOFTWARE GUI A free software GUI is available for programming and configuring the ADP1055. The GUI is designed to be intuitive to power supply designers and dramatically reduces power supply design and development time. The software includes filter design and power supply PWM topology windows. The GUI is also an information center, displaying the status of all readings, monitoring, and flags on the ADP1055. The GUI takes into account all PMBus conversions; the user need only enter the voltage and current settings (or thresholds) in volts and amperes. All PMBus flags and readings are also displayed in the GUI. For more information about the GUI, see the ADP1055 product page). Evaluation boards are also available; for more information, see the ADP1055 product page). Figure 83. Voltage Settings Window of the ADP1055 GUI Figure 84. Monitor Window of the ADP1055 GUI |
|
