Data Sheet
ADP5300
Rev. 0 | Page 13 of 21
1
4
2
VOUT
IL
SW
CH1
1.44V
CH2 2.00V
CH1 2.00V
M 10.0µs
A
T 40.20%
CH4 500mA
Ω

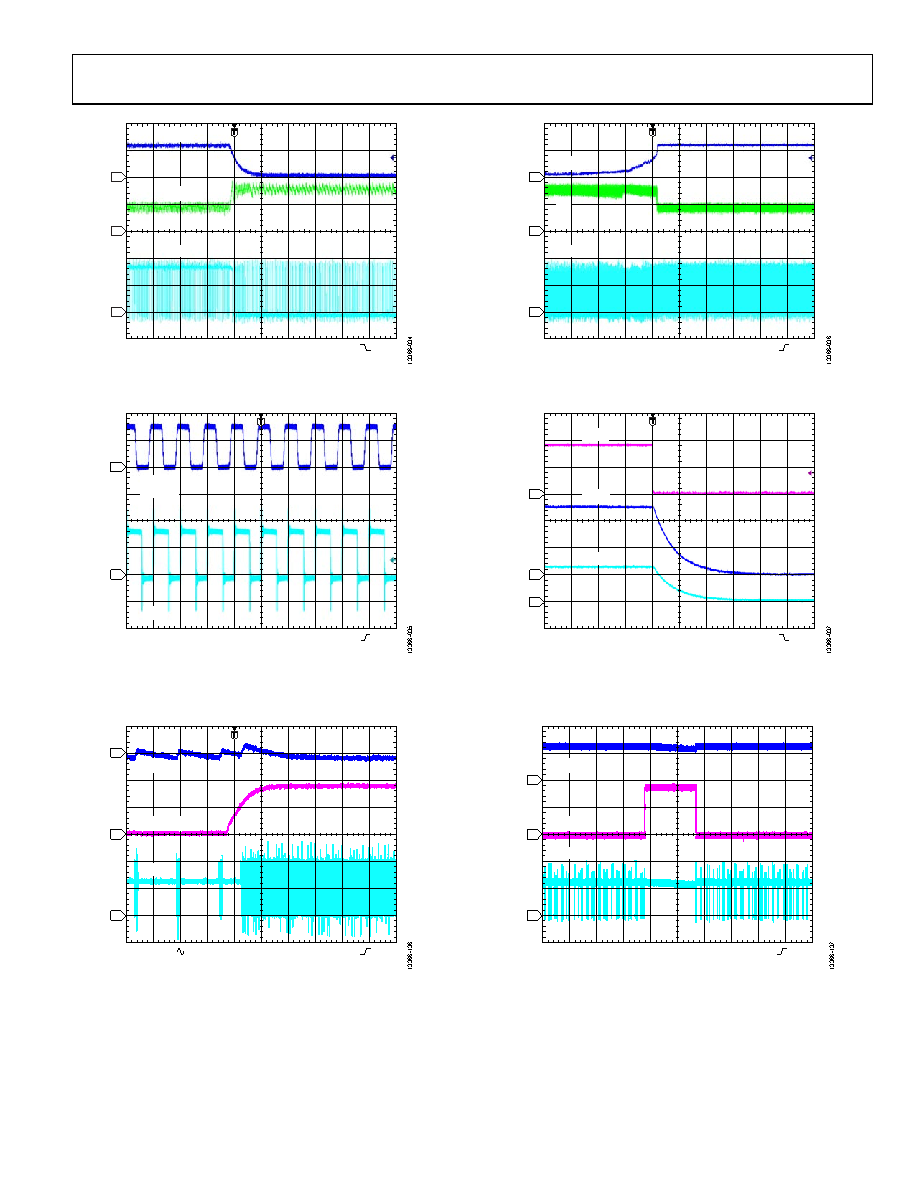

Figure 34. Output Short Protection
(IL is the Inductor Current)
SYNC/
MODE
SW
CH2
1.40V
CH2 2.00V
CH1 2.00V
M 400ns
A
T 50.00%
1
2
Figure 35. Synchronized to 2.5 MHz
VOUT
SYNC/MODE
SW
CH3
1.56V
CH2 2.00V
CH1 100mV
CH3 2.00V BW
M 20.0µs
A
T 39.80%
3
1
2
Figure 36. Hysteresis Mode to PWM Mode with 10 mA Load Current
VOUT
IL
SW
CH1
1.44V
CH2 2.00V
CH1 2.00V
M 1.00ms A
T 40.20%
CH4 500mA
Ω
4
1
2
Figure 37. Output Short Recovery
(IL is the Inductor Current)
3
1
2
EN
VOUT
SW
CH3
1.64V
CH2 2.00V
CH1 1.00V
M 4.00ms A
T 40.00%
CH3 2.00V
Figure 38. Quick Output Discharge Function
VOUT
VSTOP
SW
CH3
520mV
CH2 2.00V
CH1 2.00V BW
CH3 2.00V BW
M 100ms
A
3
1
2
Figure 39. STOP Switching Function
