Typical application performance
STLED25
10/30
Doc ID 022323 Rev 3
5

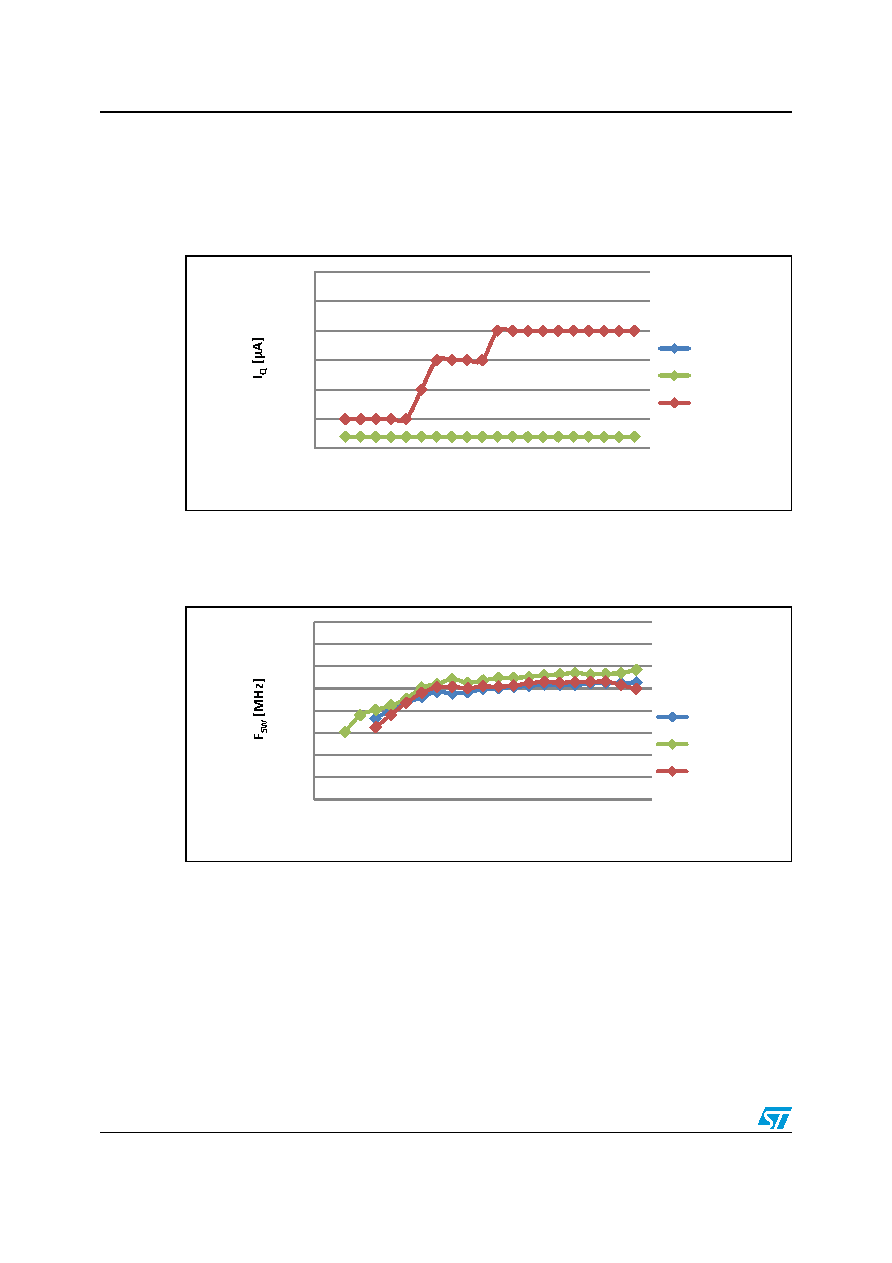

Typical application performance
5.1
Quiescent current consumption
Figure 4.
Quiescent current at different ambient temperatures
5.2
Switching frequency
Figure 5.
Switching frequency at different ambient temperatures
AM09922v1
0
0.01
0.02
0.03
0.04
0.05
0.06
1.5 1.9 2.3 2.7 3.1 3.5 3.9 4.3 4.7 5.1 5.5 5.9
VIN [V]
-30°C
25°C
85°C
AM09923v1
2.3
2.35
2.4
2.45
2.5
2.55
2.6
2.65
2.7
1.5 1.9 2.3 2.7 3.1 3.5 3.9 4.3 4.7 5.1 5.5 5.9
VIN [V]
-30°C
25°C
85°C
