STP2CMP
Package information
DocID022734 Rev 2
19/23
Table 8: QFN20 (1.8x3.2 mm) package mechanical data
Dim.
mm
Min.
Typ.
Max.
A
0.45
0.50
0.55
A1
0
0.02
0.05
A3
0.127
b
0.15
0.20
0.25
D
3.15
3.20
3.25
E
1.75
1.80
1.85
e
0.40
L
0.35
0.40
0.45

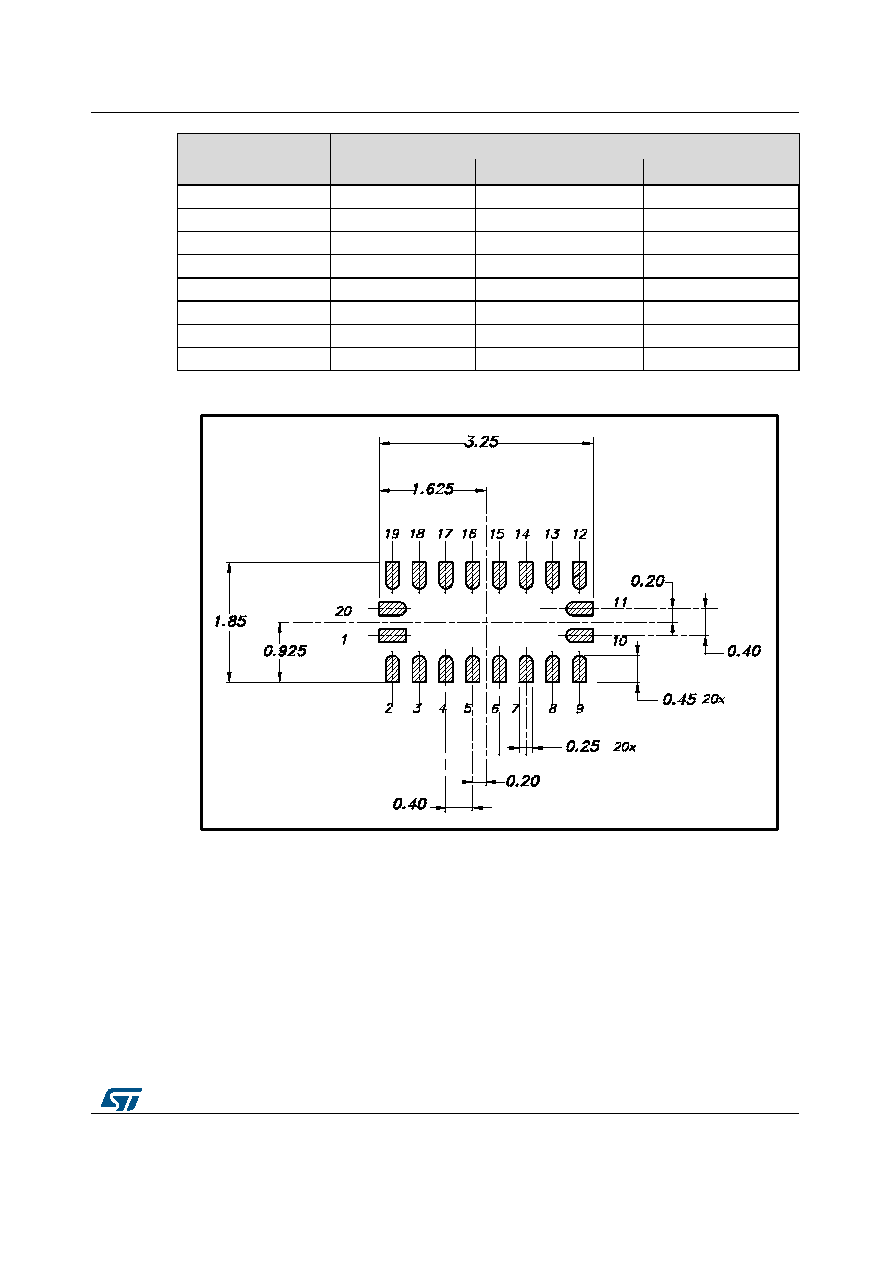

Figure 14: QFN20 (1.8x3.2 mm) recommended footprint
