THEORY OF OPERATION

GND

VIN

VOUT

ADP195

LEVEL SHIFT

AND SLEW

RATE CONTROL

REVERSE

POLARITY

PROTECTION

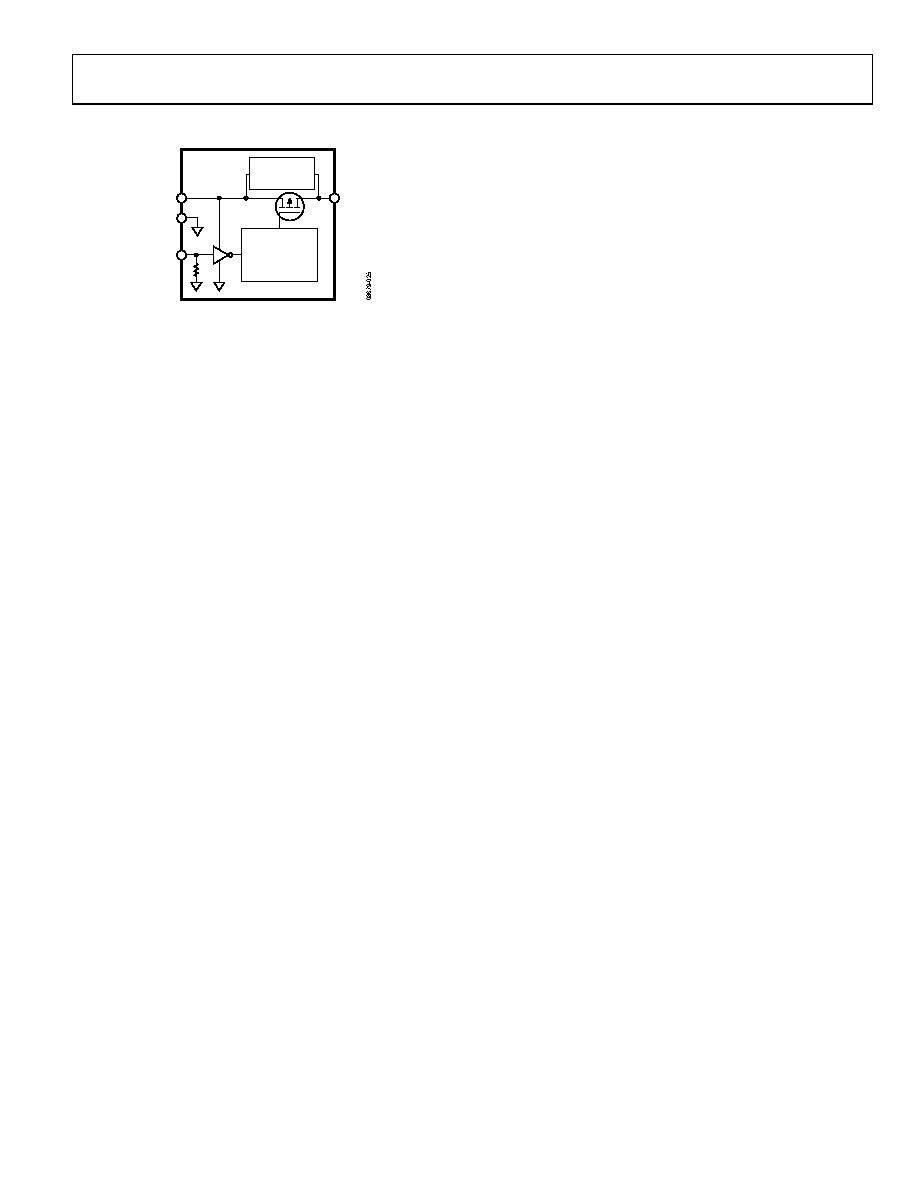

Figure 21. Functional Block Diagram

The ADP195 is a high-side PMOS load switch. It is designed for

supply operation between 1.1 V to 3.6 V. The PMOS load switch

is designed for low on resistance, 65 mΩ at VIN = 1.8 V and

supports greater than 1 A of continuous current. It is a low

quiescent current device with a nominal 4 MΩ pull-down

resistor on its enable pin (EN).

The reverse current protection circuitry prevents current flow

backward through the ADP195 when the output voltage is greater

than the input voltage. A comparator senses the difference

between the input and output voltages. When the difference

between the input voltage and output voltage exceeds 75 mV,

the body of the pFET is switched to VOUT and is turned off or

opened; that is, the gate is connected to VOUT.

The packaging is a space-saving 1.0 mm × 1.0 mm, 4-ball WLCSP.

The ADP195 is also available in a 2 mm × 2 mm × 0.55 mm,

0.65 mm pitch LFCSP.
